NJM2286
2-INPUT 3CHANNEL VIDEO SWITCH
■
GENERAL DESCRIPTION
NJM2286
is a switching IC for switching over from one audio or
video input signal to another. Internalizing 2 inputs, 1 output, and
then each set of 3 can be operated independently. They are a
Clamp type", and it can be operated while DC level fixed in position
of the video signal. It is a higher efficiency video switch, featuring the
operating supply voltage 4.75 to 13.0V, the frequency feature 10MHz,
and then the Crosstalk 75dB (at 4.43MHz).
■
FEATURES
•
2 Input-1 Output Internalizing 3 Circuits (Clamp type).
•
Wide Operating Voltage
(4.75 to 13.0V)
•
Crosstalk 75dB (at 4.43MHz)
•
Wide Bandwidth Frequency Feature 10MHz (2V
P-P
Input)
•
Package Outline
DIP16, DMP16, SSOP16
•
Bipolar Technology
■
APPLICATIONS
•
VCR, Video Camera, AV-TV, Video Disk Player.
■

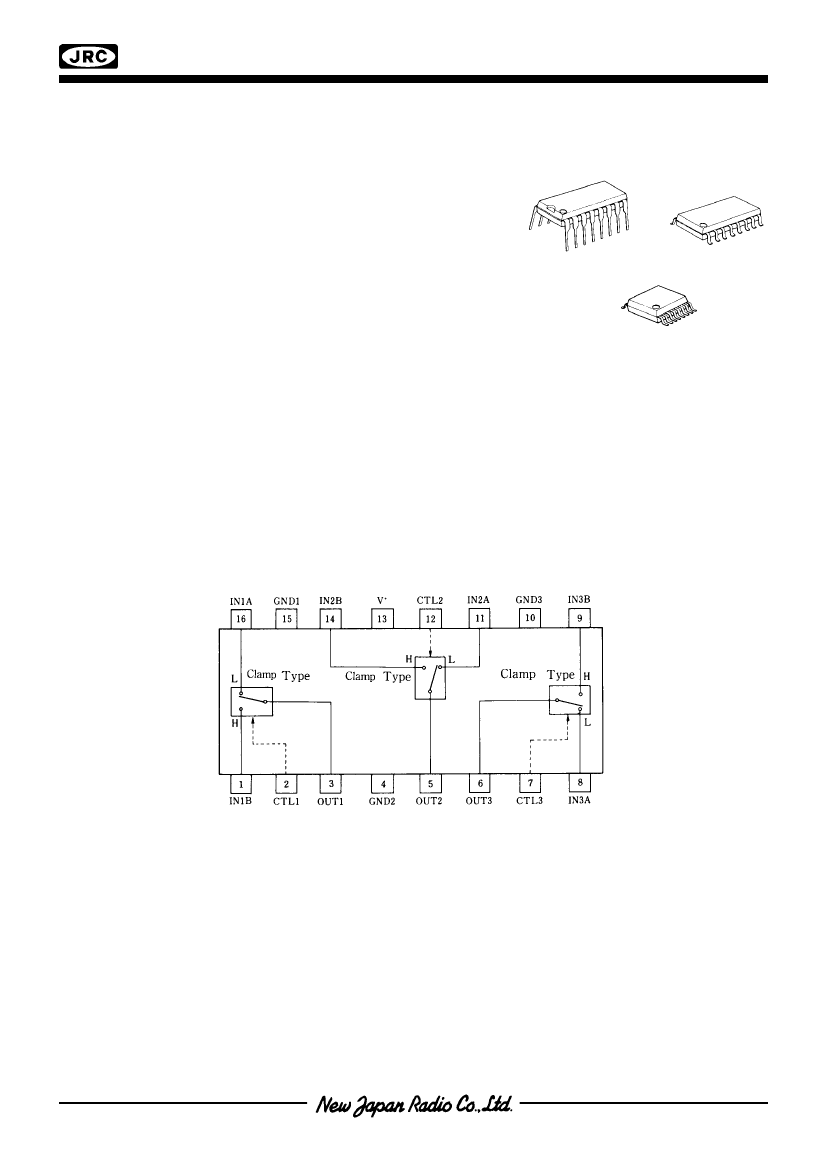

BLOCK DIAGRAM
■
PACKAGE OUTLINE
NJM2286D
NJM2286M
NJM2286V
NJM2286D
NJM2286M
Ver.2004-02-17
-1-
NJM2286
■
MAXIMUM RATINGS
PARAMETER
Supply Voltage
Power Dissipation
Operating Temperature Range
Storage Temperature Range
SYMBOL
V
+
(T
a
= 25ºC)
RATINGS
14
(DIP16)
(DMP16)
700
350
UNIT
V
mW
mW
ºC
ºC
P
D
T
opr
T
stg
-40 to +85
-40 to +125
■
ELECTRICAL CHARACTERISTICS
PARAMETER
Operating Current (1)
Operating Current (2)
Voltage Gain
Frequency Gain
Differential Gain
Differential Phasa
Output Offset Voltage
Crosstalk
Switch Change Over Voltage
Switch Change Over Voltage
SYMBOL
I
CC1
I
CC2
G
V
G
F
DG
DP
V
OS
CT
V
CH
V
CL
+
+
(V
+
= 5V, T
a
= 25°C)
TEST CONDITION
V = 5V (Note1)
V = 9V (Note1)
V
I
= 100kHz, 2V
P-P
, V
O
/ V
I
V
I
= 2V
P-P
, V
O
(10MHz) / V
O
(100kHz)
V
I
= 2V
P-P
, Standard Staircase Signal
V
I
= 2V
P-P
, Standard Staircase Signal
(Note2)
V
I
= 2V
P-P
, 4.43MHz, V
O
/ V
I
All inside Switch ON
All inside Switch OFF
MIN.
7.9
9.8
-0.6
-1.0
-
-
-15
-
2.5
-
TYP.
11.3
14.1
-0.1
0
0.3
0.3
0
-75
-
-
MAX.
14.7
18.4
+0.4
+1.0
-
-
+15
-
-
1.0
UNIT
mA
mA
dB
dB
%
deg
mV
dB
V
V
(Note1) S1 = S2 = S3 = S4 = S5 = S6 = S7 = 1
(Note2) S1 = S2 = S3 = S4 = S5 = S6 =1, S7= 1→2 Measure the output DC voltage difference
-2-
Ver.2004-02-17
NJM2286
■

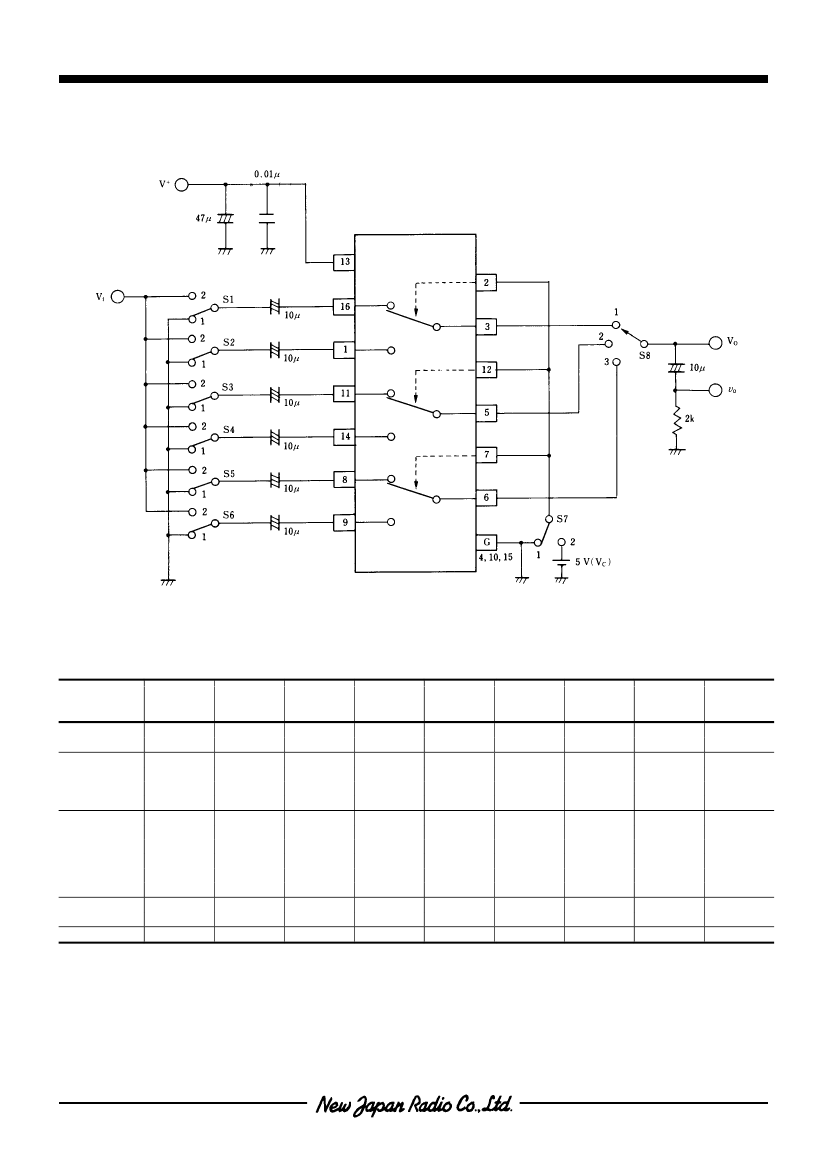

TEST CIRCUIT
PARAMETER
I
CC1
I
CC2
G
v1
G
f1
DG
1
DP
1
CT 1
CT 2
CT 3
CT 4
CT 5
CT 6
V
OS1
V
C1
THD
S1
1
1
2
2
2
2
2
1
1
1
1
1
1
1/2
2
S2
1
1
1
1
1
1
1
2
1
1
1
1
1
2/1
1
S3
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
S4
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
S5
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
S6
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
S7
1
1
1
1
1
1
2
1
2
1
2
1
1/2
V
C
1
S8
1
1
1
1
1
1
1
1
2
2
3
3
1
1
1
TEST
PART
V
+
v
o
v
o
V
O
V
C
v
o
Ver.2004-02-17
-3-
NJM2286
■
TERMINLAL EXPLANATION
PIN No.
16
1
11
14
8
9
PIN NAME
IN 1 A
IN 1 B
IN 2 A
IN 2 B
IN 3 A
IN 3 B
[Input]
1.5V
VOLTAGE
INSIDE EQUIVALENT CIRCUIT
2
12
7
CTL 1
CTL 2
CTL 3
[Switching]
3
5
6
OUT1
OUT2
OUT3
[Output]
0.8V
13
15
4
10
V
+
GND 1
GND 2
GND 3
5V
-4-
Ver.2004-02-17
NJM2286
■

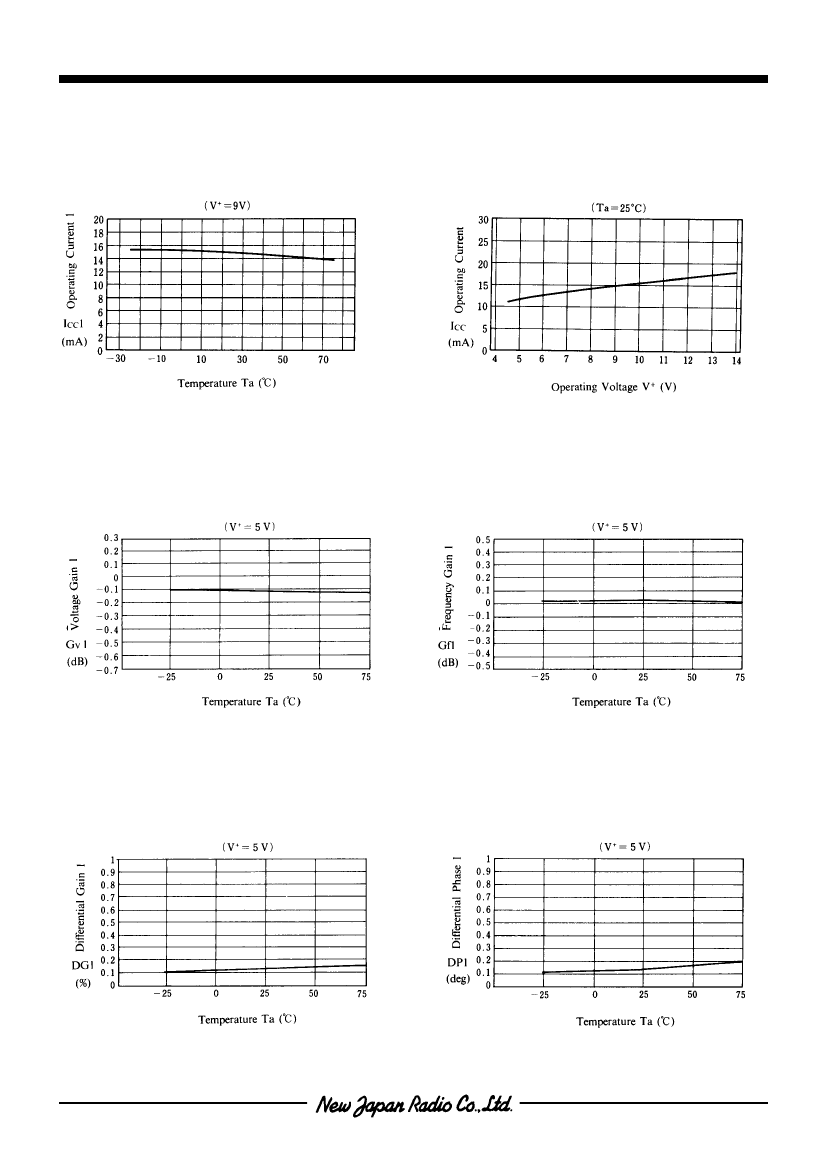

TYPICAL CHARACTERISTICS
Operating Current 1 vs. Temperature
Operating Current vs. Operating Voltage
Voltage Gain 1 vs. Temperature
Frequency Gain 1 vs. Temperature
Differential Gain 1 vs. Temperature
Differential Phase 1 vs. Temperature
Ver.2004-02-17
-5-
