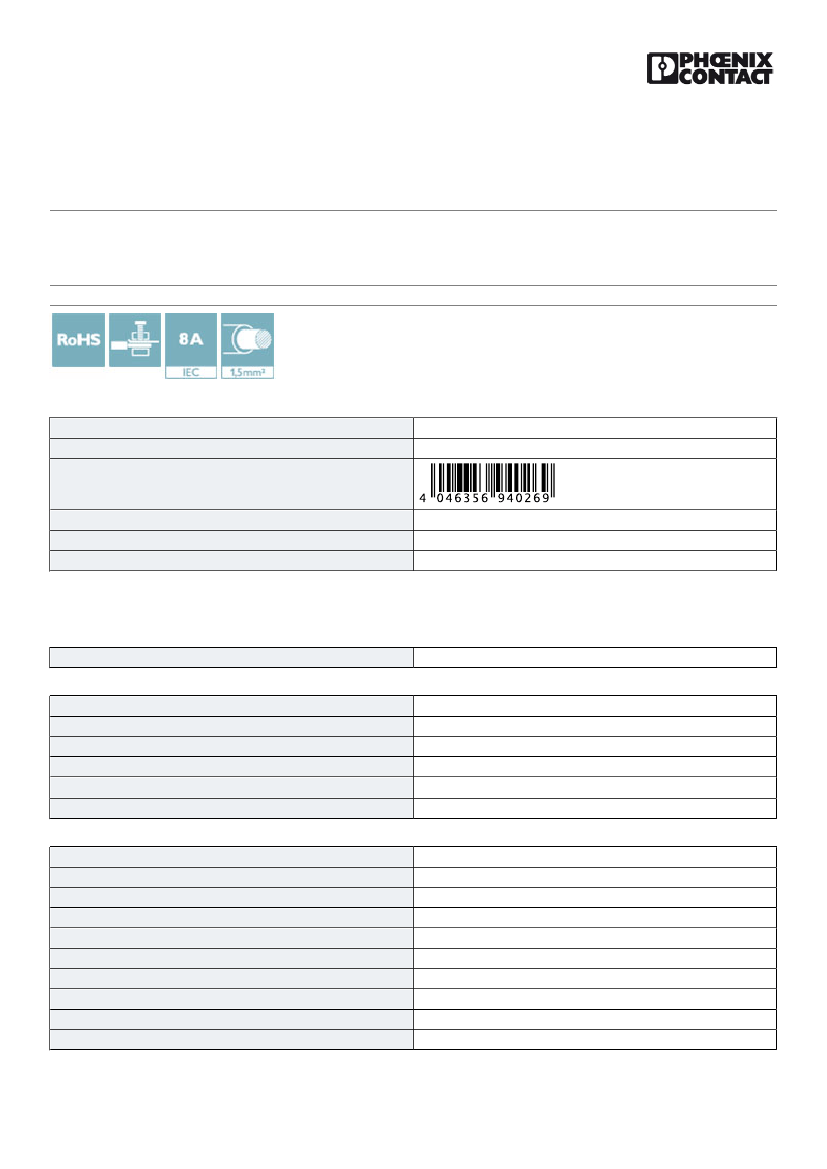

MC 1,5/ 4-ST-3,5 GY 2PA2CNBDR1 - 1707656
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug component, Nominal current: 8 A, Connection method: Screw connection with tension sleeve, Color:
gray, Contact surface: Tin
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
Note
4046356940269
85366990
Made to Order (non-returnable)
50 STK
50 STK
Technical data
Dimensions
Dimension a
10.5 mm
General
Type of contact
Connection method
Rated voltage (III/3)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Female connector
Screw connection with tension sleeve
160 V
EN-VDE
8A
1.5 mm²
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
0.25 mm²
0.25 mm²
0.5 mm²
28
16
11/14/2016 Page 1 / 3
Conductor cross section flexible, with ferrule without plastic sleeve max. 1.5 mm²
https://www.phoenixcontact.com/hq/products/1707656
MC 1,5/ 4-ST-3,5 GY 2PA2CNBDR1 - 1707656
Technical data
Connection data
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
0.08 mm²
0.5 mm²
0.08 mm²
0.75 mm²
0.25 mm²
0.34 mm²
0.5 mm²
0.5 mm²
Standards and Regulations
Connection in acc. with standard
EN-VDE
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Approvals
Approvals
Approvals
CSA / VDE Gutachten mit Fertigungsüberwachung / CCA / IECEE CB Scheme / cULus Recognized / EAC
Ex Approvals
Approval details
CSA
http://www.csagroup.org/services/testing-and-certification/certified-product-listing/ 13631
VDE Gutachten mit Fertigungsüberwachung
Search.aspx 40011723
http://www.vde.com/en/Institute/OnlineService/VDE-approved-products/Pages/Online-
CCA CCA/ DE1 34219
11/14/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/1707656
MC 1,5/ 4-ST-3,5 GY 2PA2CNBDR1 - 1707656
Approvals
IECEE CB Scheme
http://www.iecee.org/ DE1-56063-B1B2
cULus Recognized http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-20110128
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
30-14
8A
300 V
D
30-14
8A
300 V
EAC B.01742
