A2540WVA-09P

Description
Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, White Insulator, Receptacle
CategoryThe connector    The connector
File Size63KB，1 Pages
ManufacturerJoint Tech Electronic Industrial Co., Ltd.
Download Datasheet Parametric Compare View All

A2540WVA-09P Overview

Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, White Insulator, Receptacle

A2540WVA-09P Parametric

Parameter NameAttribute value
MakerJoint Tech Electronic Industrial Co., Ltd.
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.197 inch
subject depth0.457 inch
body length0.886 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage800VAC V
Insulation resistance500000000 Ω
Insulator colorWHITE
insulator materialNYLON
Manufacturer's serial numberA2540
Plug contact pitch0.098 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
PCB contact patternRECTANGULAR
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.134 inch
Terminal pitch2.4892 mm
Termination typeSOLDER
Total number of contacts9

Preview

Download Datasheet

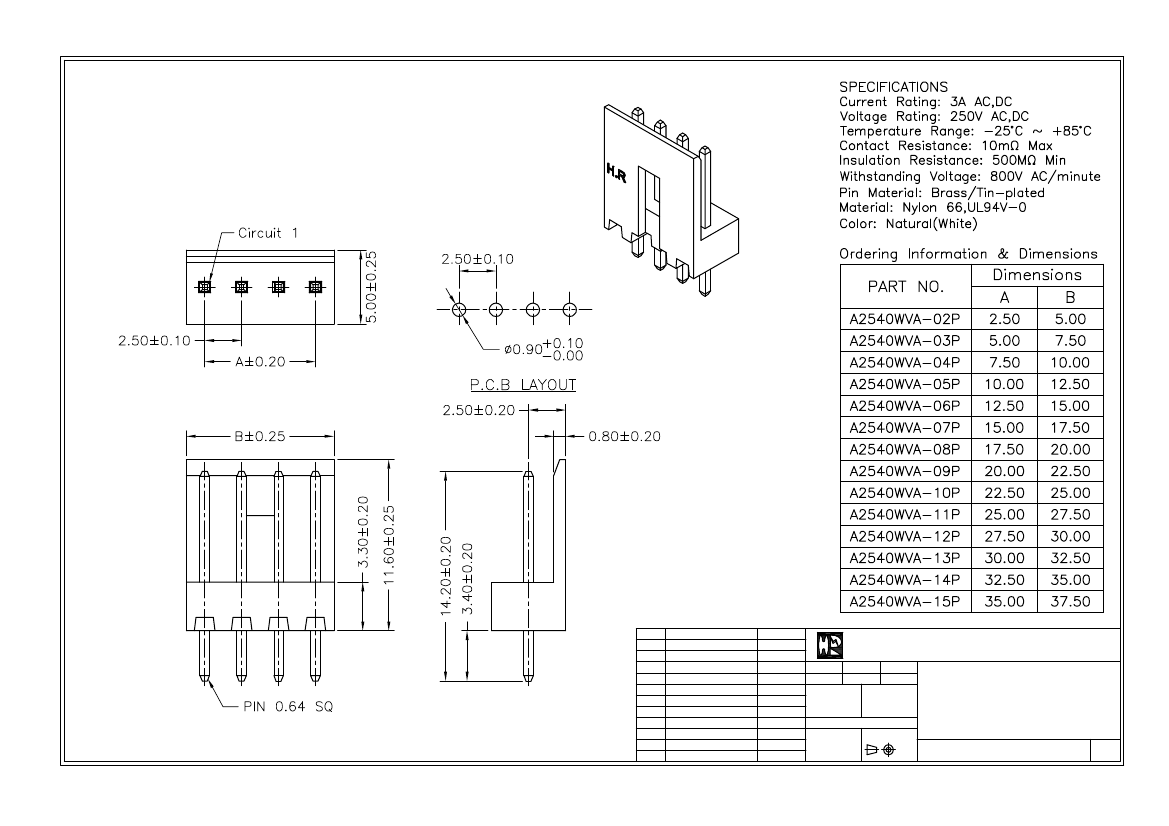

JOINT TECH ELECTRONIC IND. CO., LTD.
