Part Number

Search

5693

Description
Heavy Duty Power Connectors BUSHING FOR 944 CONTACT 36526 - #4
CategoryThe connector
File Size914KB,7 Pages
ManufacturerAnderson Power Products
Environmental Compliance
Download Datasheet Parametric View All

5693 Online Shopping

Suppliers Part Number Price MOQ In stock
5693 - - View Buy Now

5693 Overview

Heavy Duty Power Connectors BUSHING FOR 944 CONTACT 36526 - #4

5693 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerAnderson Power Products
Product CategoryHeavy Duty Power Connectors
RoHSDetails
ProductAccessories
Accessory TypeBushing
Current Rating-
Number of Positions-
Termination Style-
Housing Material-
Contact Plating-
Contact Material-
PackagingBulk
Mounting Angle-
Number of Rows-
Mounting Style-
Pitch-
Row Spacing-
Wire Gauge Range4 AWG
Contact Gender-
Housing Gender-
Factory Pack Quantity1
Unit Weight0.438808 oz

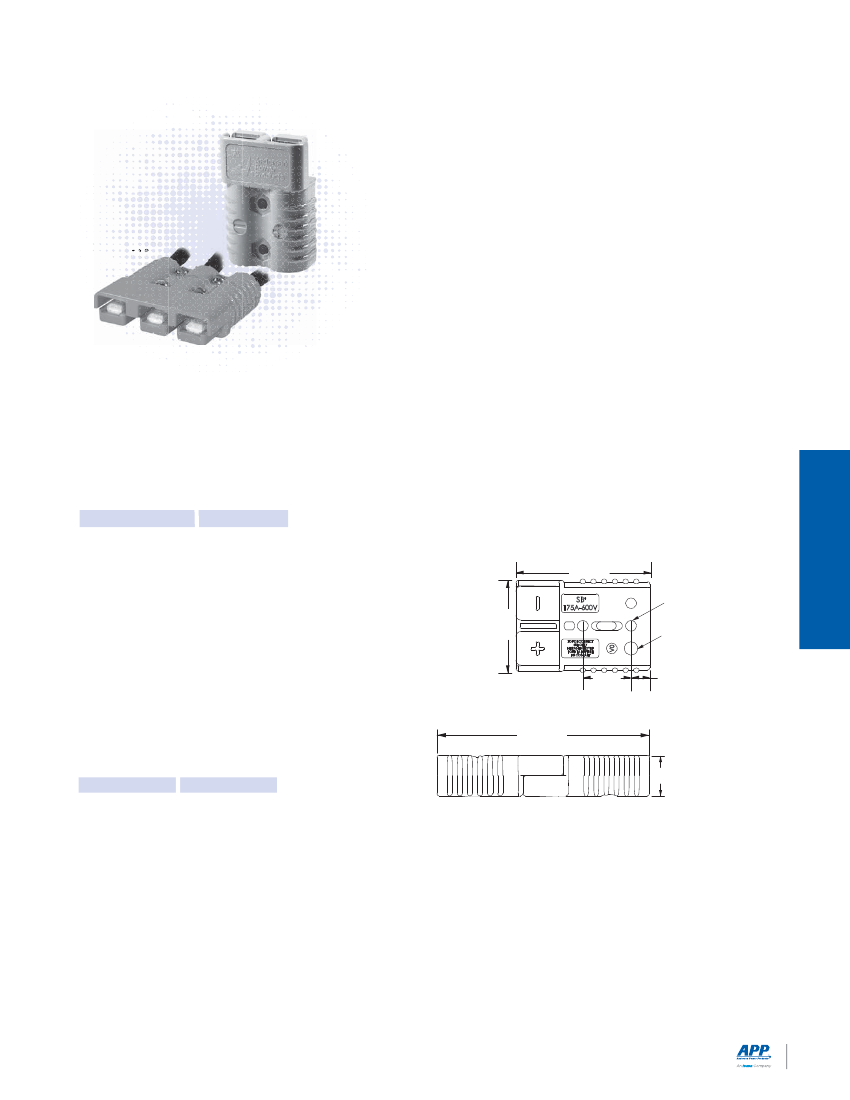

SB
®
175 Connectors
- up to 280 Amps
2 Pole
Wires sizes from #10 (5.3 mm²) to 1/0 (50 mm²)
t in
the second to largest connector in the SB
®
series. The
3 pole SB
®
175 adds an additional position for power or
grounding. All Multipole wire connector housings are
genderless and mate to themselves minimizing inven-
tory and assembly complexity.
3 Pole
• Silver Plated Wire Contacts up to 1/0 (50 mm²)
Allows UL rated currents up to 280 amps
• Chemical Resistant Housing Option
Extends temperature range down to -40°C, while offering
enhanced UV and chemical resistance
• UL Rated for Hot Plugging up to 100 Amps
Great for battery or other applications where the ability to
interrupt circuits is required
| SB
®
175 ORDERING INFORMATION |
SB
®
175 Standard Housings
The second to largest SB
®
housings work with wire contacts up to 1/0
AWG [50 mm²] as well as busbar contacts. Genderless design mates with
itself. Mechanical keys are color coded. NOTE: SB
®
175 black housing is
keyless and can be mated with all other colors.
Description
--- Part Numbers ---
Minimum Quantity .......... 200
50 ...
Yellow
943-BK
943
Orange
942-BK
942
Red
949-BK
949
Gray
940-BK
940
Blue
941-BK
941
Black (Keyless)
2-7252G11 -
SB
®
175
SECTION 3
Bottom View
[ 79.6 ]
3.13
[ 6.5 ]
Ø 0.26
(2) PLC’S
[ 55.6]
2.19
Material ID
P = Chemical
Resistant
[ 28.6 ]
1.13
Mated Length
[ 11.3 ]
0.45
SB
®
175 Chemical Resistant Housings
Same features as the Standard SB
®
175 but molded in a
chemical resistant PBT/ PC blend. Suitable for use to -40°C.
Description
---- Part Numbers ----
Minimum Quantity ....
200
50 ...
Red
P949-BK
P949
Gray
P940-BK
P940
[ 133.4 ]
5.25
[ 25.4 ]
1.00
© 2018 Anderson Power Products, Inc. All rights reserved. APP®, Anderson Power Products®, A®, SB® and the APP Logo are registered trademarks of Anderson Power Products, Inc.
All Data Subject To Change Without Notice
www.andersonpower.com
- 77 -
