1830088 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 1830088

1830088: DescriptionPluggable Terminal Blocks 15 Pos 3.81mm pitch Through Hole Header; CategoryThe connector terminals; File Size82KB，5 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

1830088 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1830088	-	-	View	Buy Now

1830088 Overview

Pluggable Terminal Blocks 15 Pos 3.81mm pitch Through Hole Header

1830088 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Samacsys Confidence	4
Samacsys Status	Released
Samacsys PartID	450410
Samacsys Pin Count	30
Samacsys Part Category	Connector
Samacsys Package Category	Other
Samacsys Footprint Name	1830088-2
Samacsys Released Date	2020-01-03 17:46:25
Is Samacsys	N
Other features	PBT, 94V-0
Manufacturer's serial number	1830088
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	15
Rated current	8 A
Rated voltage	160 V
safety certificate	UL
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/us/products/1830088

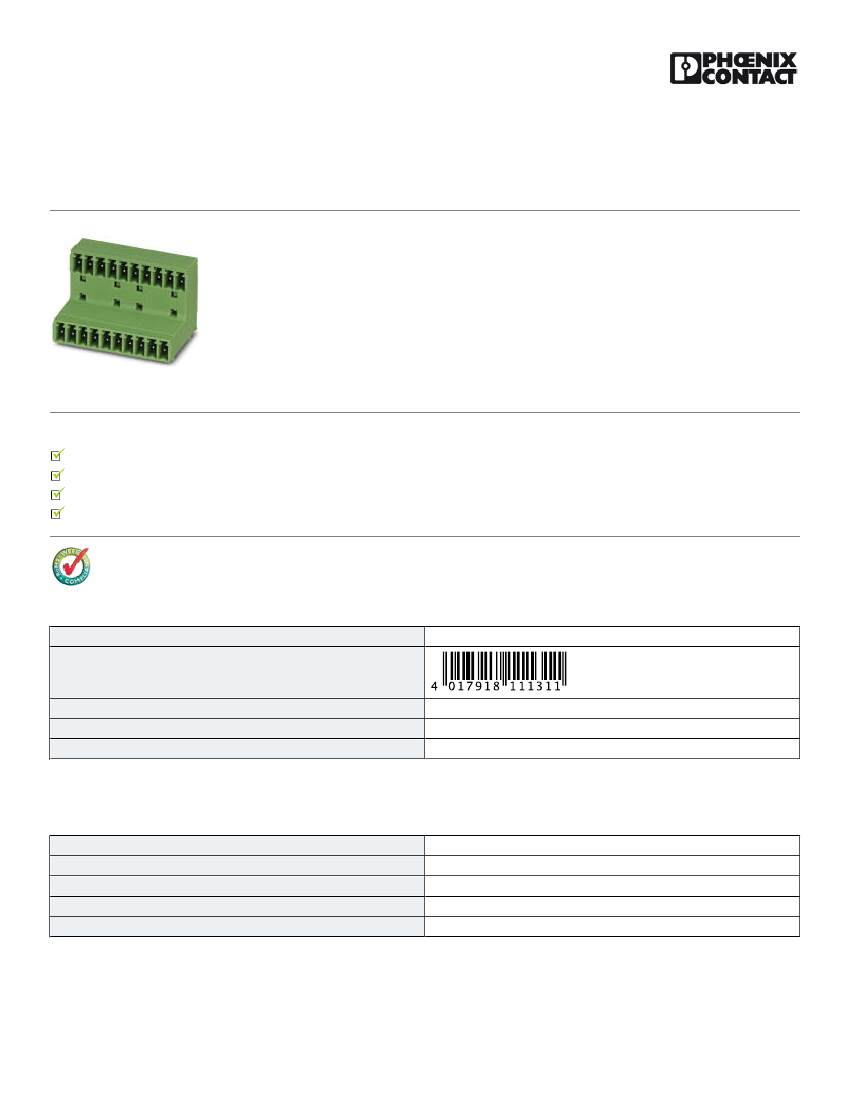

Base strip - MCD 1,5/15-G-3,81 - 1830088

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 15, Pitch: 3.81 mm, Color: green,

Contact surface: Tin, Assembly: Soldering, In combination with MCV plug components, both an MCVW and an

MCVR plug must be used.

The figure shows a 10-pos. version

with 20 contacts

Product Features

With offset levels

Low-profile double-level pin strips with high contact density

Improved view and access to lower level

Plug-in direction parallel to the PCB

Key commercial data

Packing unit

GTIN

Weight per Piece (excluding packing)

Custom tariff number

Country of origin

12.79 GRM

85366990

Germany

1 pc

Technical data

Dimensions

Length

Pitch

Dimension a

Pin dimensions

Hole diameter

21.9 mm

3.81 mm

53.34 mm

0,8 x 0,8 mm

1.2 mm

General

10/28/2014 Page 1 / 5
