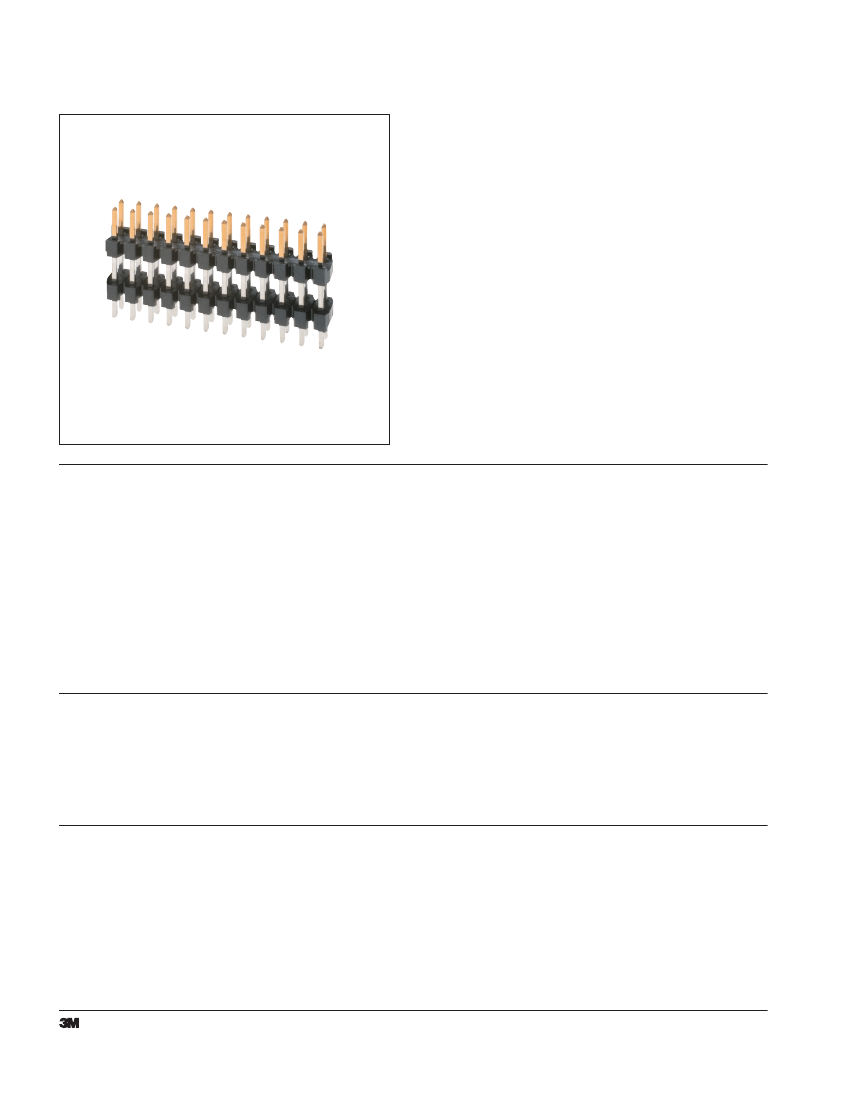

3M
™

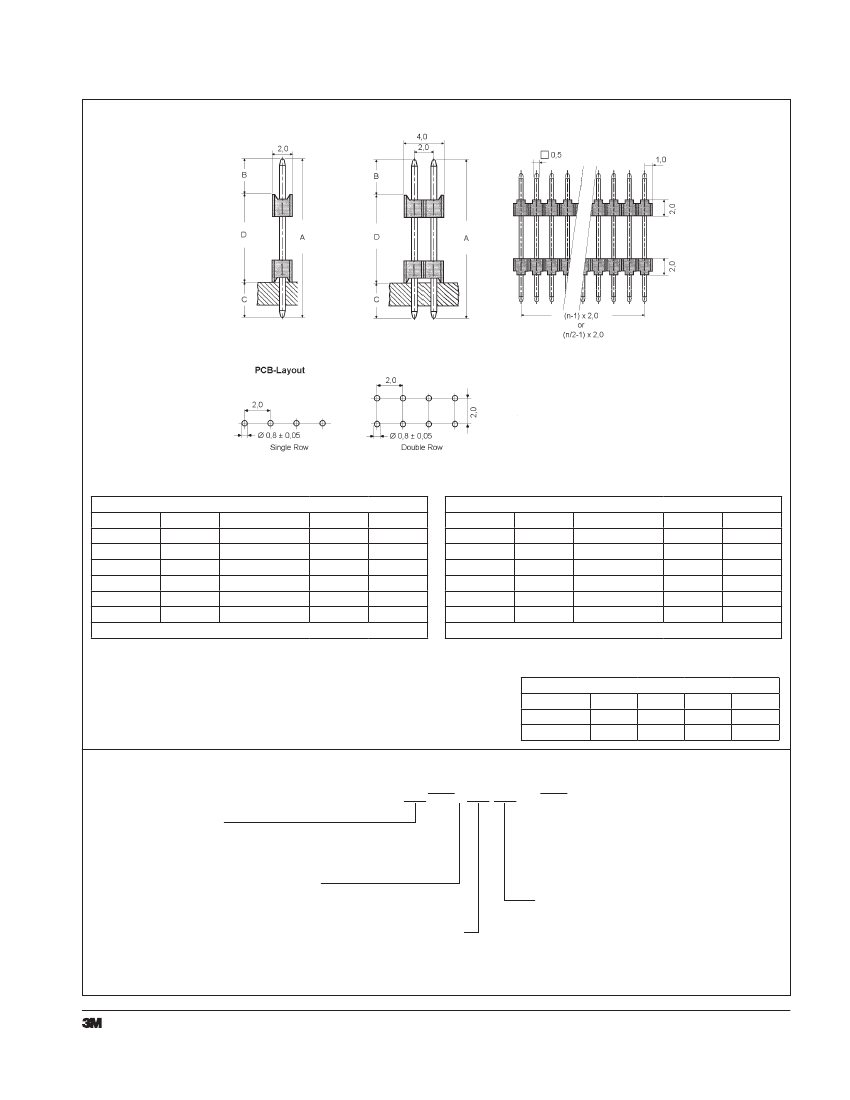

Pin Strip Header
2 mm and 2 mm x 2 mm Dual Insulator, Straight, Solder Tail
951 Series
•
High temperature dielectric
•
No lead” wave and reflow solder compatible
“
•
ptimizes use of PC board space
O
•
nd stackable feature
E
•
ide stackable feature
S
•
RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the „RoHS compliance“ section of
www.3Mconnectors.com for compliance information
(RIA E1 & C1 apply)
Date Modified: November 27, 2012
TS-2160-C
Sheet 1 of 2
Physical
Insulation
Material: High Temperature Thermo lastic
p
Flammability: UL 94V-0
Color: Black
Contact
Material: Copper Alloy
Plating
Underplating: 1.25–2.5 µm [50-100 µ’’] Nickel
Wiping Area: Flash Gold
Solder Tail Area: 1–3 µm [40–118 µ’’] Matte Tin
Electrical
Current Rating:
Insulation Resistance:
Withstanding Voltage:
Transition Resistance:
1A
> 5 x 10
8
Ohm at 100 V
DC
1000 V
DC
≤ 20 mOhm
Environmental
Temperature Range:
-40 °C to +105 °C
Processing Temperature:
ax. 260 °C (Profile per J-STD-020C)
m
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
Interconnect Solutions
www.3Mconnectors.com
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
3M
™
Pin Strip Header
2 mm and 2 mm x 2 mm Dual Insulator, Straight, Solder Tail
951 Series
Coding No.
A
08
10.8
11
11.9
15
14.3
19
16.5
22
18.6
25
21.2
Others on Request
Contact Dimensions
Mating Length B
4.0
4.0
4.0
4.0
4.0
4.0
C
2.8
2.8
2.8
2.8
2.8
2.8
D
4.0
5.1
7.5
9.7
11.8
14.4
Coding No.
A
08
12.7
11
13.8
15
16.2
19
18.4
22
20.5
25
23.1
Others on Request
Contact Dimensions
Mating Length B
5.9
5.9
5.9
5.9
5.9
5.9
C
2.8
2.8
2.8
2.8
2.8
2.8
D
4.0
5.1
7.5
9.7
11.8
14.4
n = No. of Contacts
Tolerance Unless Noted [mm]
Nominal Size
0.5–3
3–6
6–30
Linear Dim
+/- 0.1
+/- 0.1
+/- 0.2
Radii
+/- 0.2
+/- 0.5
+/- 1
30–120
+/- 0.3
+/- 1
Ordering Information
Contact Quantity:
02-40 Pins / 1 Row
04–80 Pins / 2 Row
9514XX
X XX XX 06
AR
(RIA E1 & C1 Apply)
Mounting Style:
8 = Solder Tail, 2 Row
9 = Solder Tail, 1 Row
Mating Pin Length
Dimension B:
01 = 4.0 mm
06 = 5.9 mm
Bord Stacking Height (D):
Coding Number: see Table
TS-2160-C
Sheet 2 of 2
Interconnect Solutions
www.3Mconnectors.com
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of ninety (90) days from the time of purchase.
3M MAKES NO OTHER WARRANTIES INCLUDING,
BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the warranty period
stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except where prohibited by
law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of the legal theory asserted.
3
3M Electronics Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
U.S.A.
1-800-225-5373
www.3Mconnectors.com
Please recycle. Printed in USA.
© 3M 2012. All rights reserved.
RIA-2217A-E
3M is a trademark of 3M Company.
