MILLIPACS HM
®
2.0 mm Hard Metric
Interconnection System
Millipacs
®
HM
Created in 1989, FCI - an Areva
Group company - rapidly secured its
place among the world’s top three
manufacturers of connectors and
interconnect systems. With a turnover
of 1.8 billion dollars in 2001, FCI
currently operates in 29 countries
where it covers the following markets:
communications, data, consumer,
industrial, military, aerospace,
automotive and electrical power
interconnect. The company employs
16,000 staff worldwide.
For more information, visit the
website at www.fciconnect.com
Content
Page
Features & benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Product range overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Male connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Female connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Male Right angle press-Fit connectors . . . . . . . . . . . . . . . . . . . . .53
Power Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Coaxial Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Coding devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
FCI reserves the right to make any engineering
refinements, alterations or improvements deemed
necessary on its products. The dimensions
appearing in this catalogue are thus subject to
change without notice. When dimensions are critical
detailed drawings should be requested.
Application Tooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Backplane layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Part number list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
Millipacs
®
HM
Features & benefits
Qualifications
• Designed in accordance with IEC 917 and IEC
61076-4-101.
• Fits DIN 43356 and IEEE 1301 Hard Metric Practice.
• Qualified by Bellcore as defined by GR-1217-CORE, iss. 1,
November 1995.
• UL and CSA recognized.
Main features
Millipacs
®
is a standard 2.0 mm Interconnection System
featuring 5 and 8 contacts rows and 2 rows for shielding and
grounding.
Millipacs
®
is a modular system built up by a number of
specific types of modules with different functions and
features signal modules with up to 200 signal contacts per
50 mm module (in 8 row versions) as well as hybrid modules
for power, coax and/or FO contacts.
It provides 3 mating levels with 1.5 mm in between and a
2,5 mm wiping length for the shortest contact.
Both headers and receptacles are equipped with the well
known FCI “eye of the needle” press-fit section for stable
and reliable connections in the boards.
Misalignment of up to 2.5 mm and inclinations of 2° in both
directions can be overcome.
FCI’s unique 1 piece female concept offers the most solid
and reliable Hard Metric connector to the market. FCI is also
offering the most versatile shielding solutions on their female
concept: no shielding, top shielding, top and semi-rear
shielding* or fully shielded modules are all standard available.
Male modules are aligned next to each other without loss of
contact positions and integrated edge polarization does
guarantee a correct positioning of the different modules on
the board. Module types without guiding features (type B and
E) are to be used in between modules with the integrated
guiding areas only.
Small pin sizes and related small PT hole diameters both at
backplane and component board level guarantee that
conventional PCB routing, manufacturing and component
assembly can still be used. Maximum wiring density (up to 3
tracks in between 2 holes) can be achieved while no
additional layers are required.
* on request

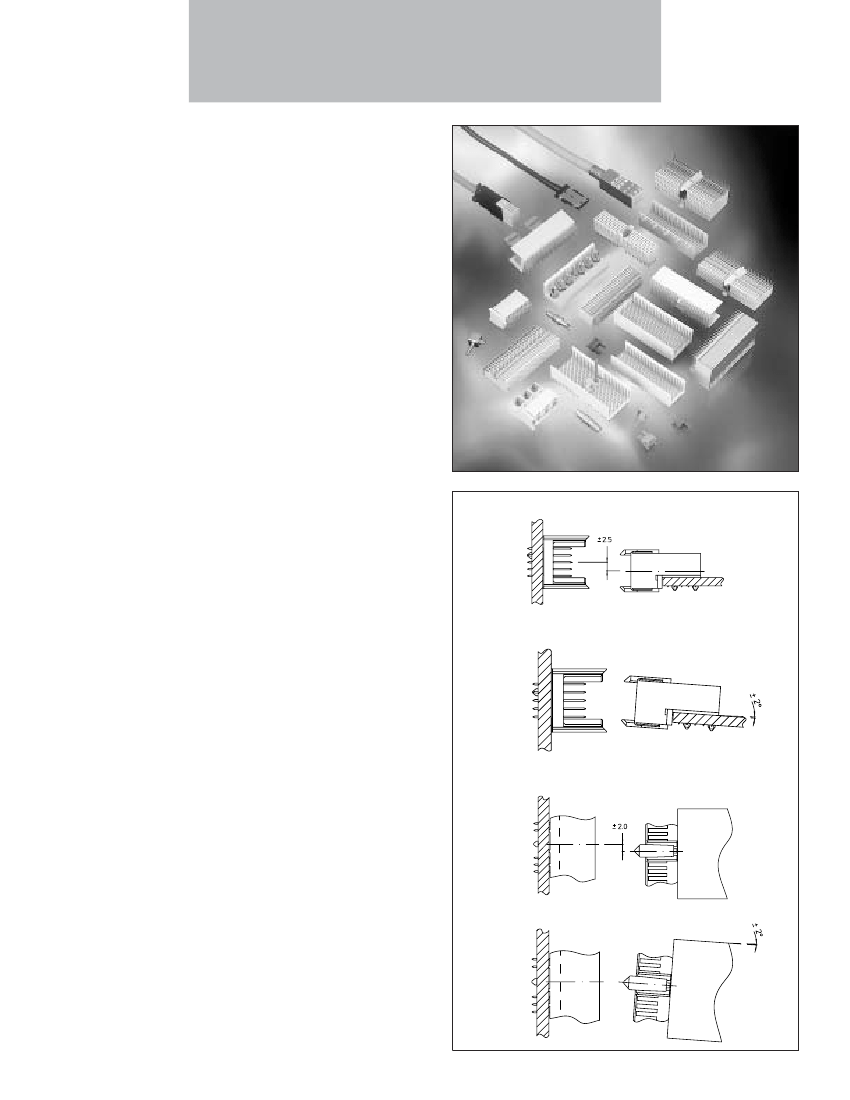

Allowed inclination
Allowed misalignment
3
Millipacs
®
HM

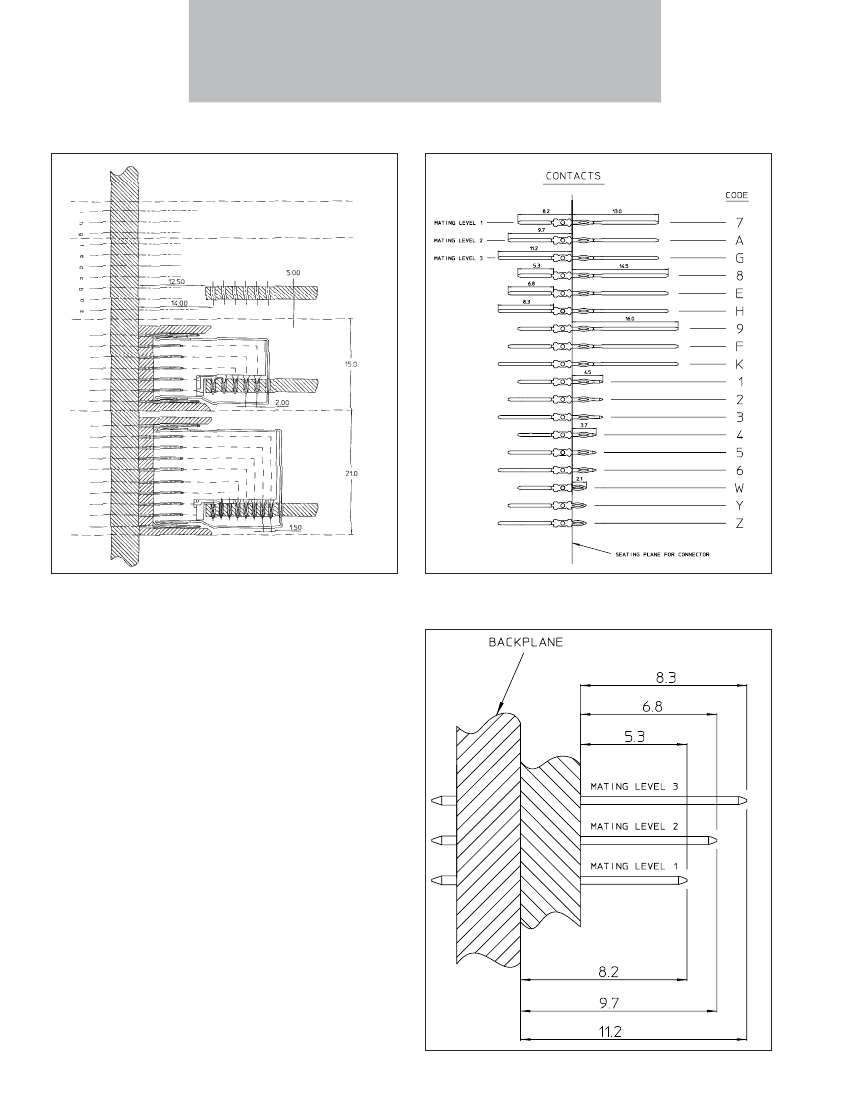

Built-in dimensions
Contacts overview
Signal contacts mating levels
4
Millipacs
®
HM

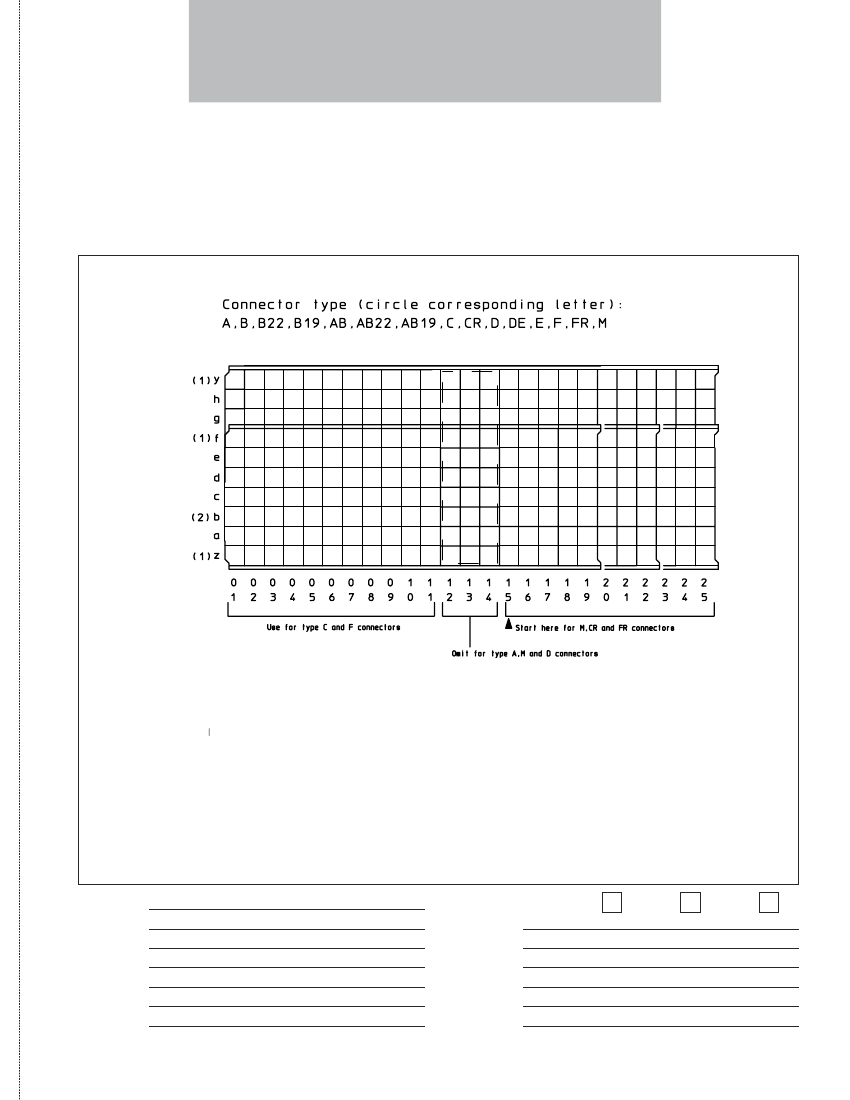

Customer Request Form for special loading
Description
This chart can be used to fill in a specific contact pin configuration for your application. An overview of the existing pins (with
the corresponding code to be filled in) is listed on page 4. Please, leave unfilled positions blank.
Note : Check on the FCI website to download the customer request form.
NOTES
(1) Ground return shield contacts only, mating level 3 required.
z+F for 5+2 row connector, z+y for 8+2 row connector.
(2) No level 3 contacts allowed when mating with right angle
female connector
Name
Address
Phone
Fax
E-mail
:
:
:
:
:
Performance level :
Remarks
:
1
2
3
Company :
5
