ROHS COMPLIANT

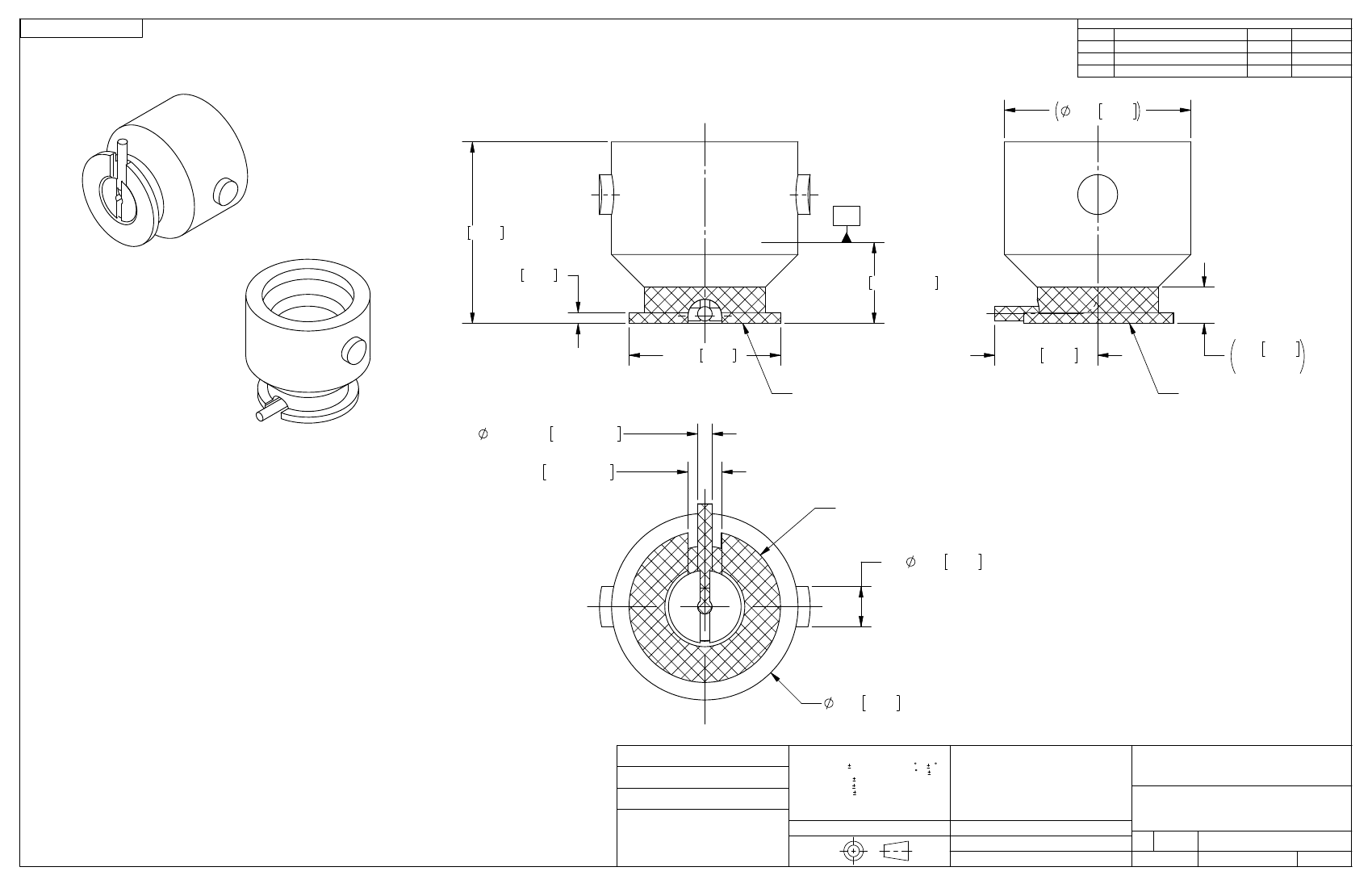

PRODUCT DATA DRAWING
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
-
DCN 42490
07/16
DAL
.154 3.91
RP
.150 3.81
.009 0.23
.067±.001 1.70±0.03
.125 3.18
NOTE 2
.012±.001 0.30±0.03
.028±.001 0.71±0.03
NOTE 2
.085 2.16
NOTE 2
.030 0.76
SOLDER
MATERIAL:
BODY:
CONTACT:
INSULATOR:
STAINLESS STEEL
BERYLLIUM COPPER
TORLON
NOTES:
1.
2.
3.
GOLD OVER NICKEL
.154 3.91
FOR RECOMMENDED FOOTPRINT TO YOUR SPECIFIC
PCB, CONTACT SV MICROWAVE SALES DEPARTMENT
(sales@svmicro.com, 561-840-1800)
TO BE TIN DIPPED USING Sn96 SOLDER
ALL DIMENSIONS APPLY PRIOR TO SOLDER DIPPING
2X
.033 0.84
FINISH:
BODY & CONTACT:
PERFORMANCE:
IMPEDANCE:
FREQ. RANGE:
VSWR:
50 OHMS
DC TO 20.0 GHz.
1.20:1 DC TO 20.0 GHz.
MATERIAL:
FINISH:
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
SMPM QB MALE SURFACE PCB
MOUNT WITH R/A CONTACT
SIZE CAGE CODE DWG. NO.
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
NHR 09/20/12
STW 08/20/13
STW 08/20/13
B
95077
SCALE: 4:1
3211-60112-TD
SHEET 1 OF 1
