61814-61118 datasheet, PDF - EEWORLD Datasheet

61814-61118: DescriptionCard Edge Connector, 168 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,; CategoryThe connector The connector; File Size434KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

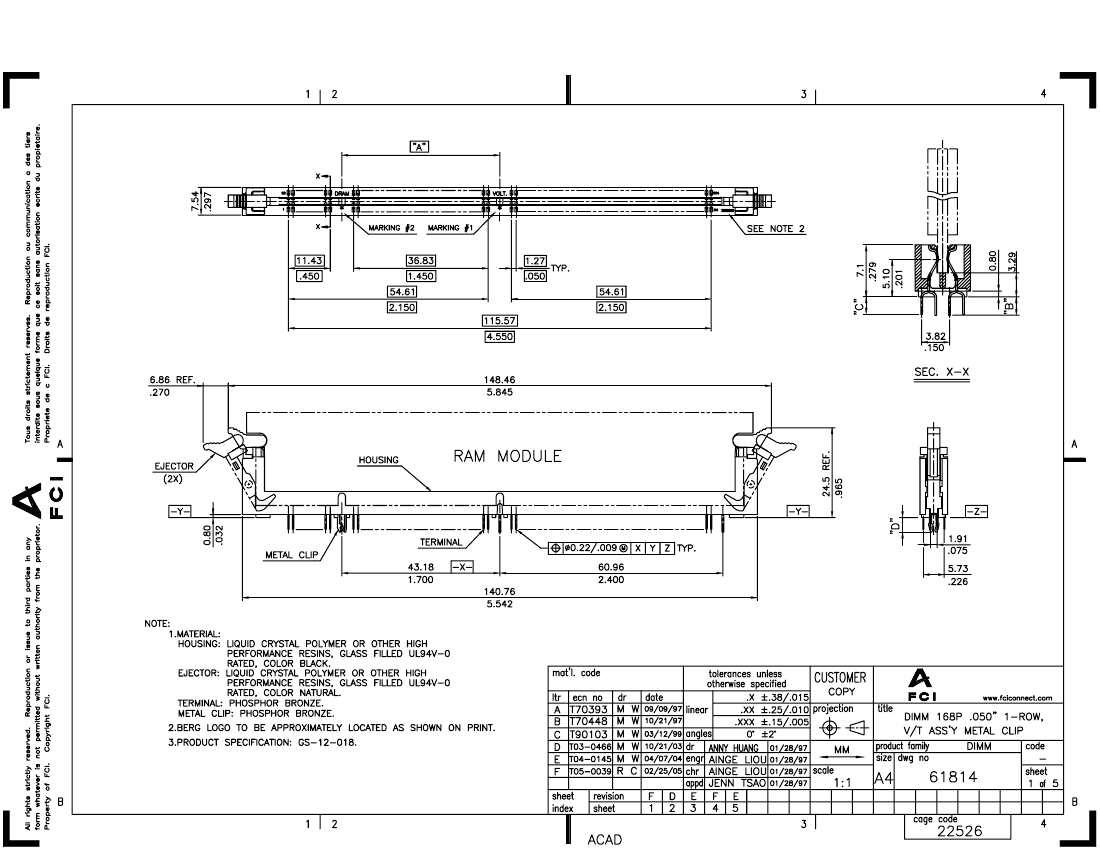

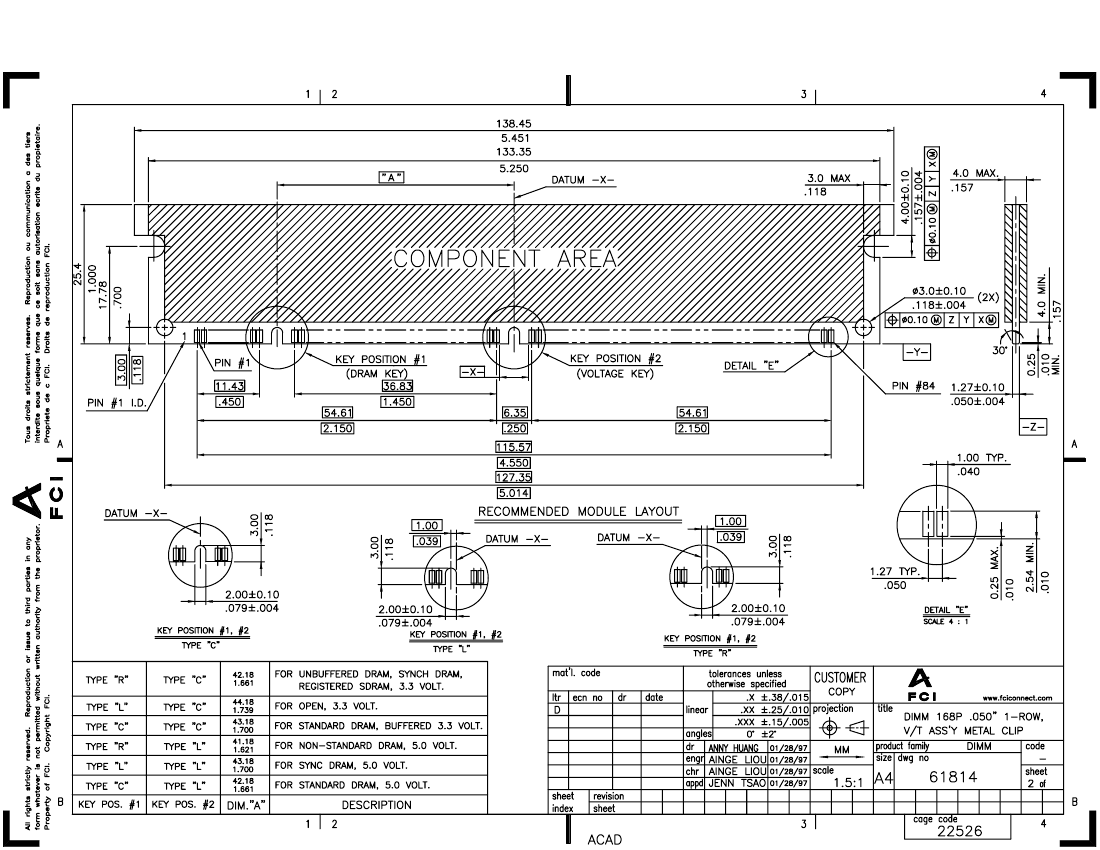

61814-61118 Overview

Card Edge Connector, 168 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compli
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN (100) OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO

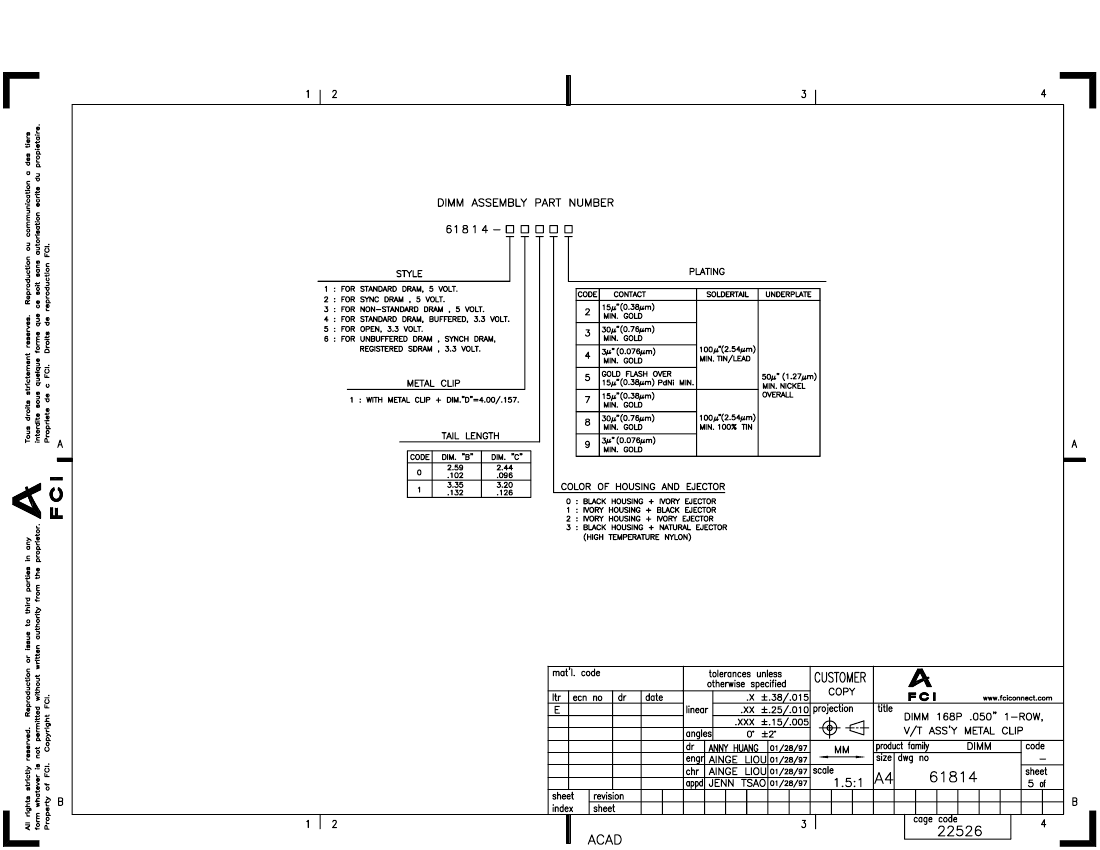

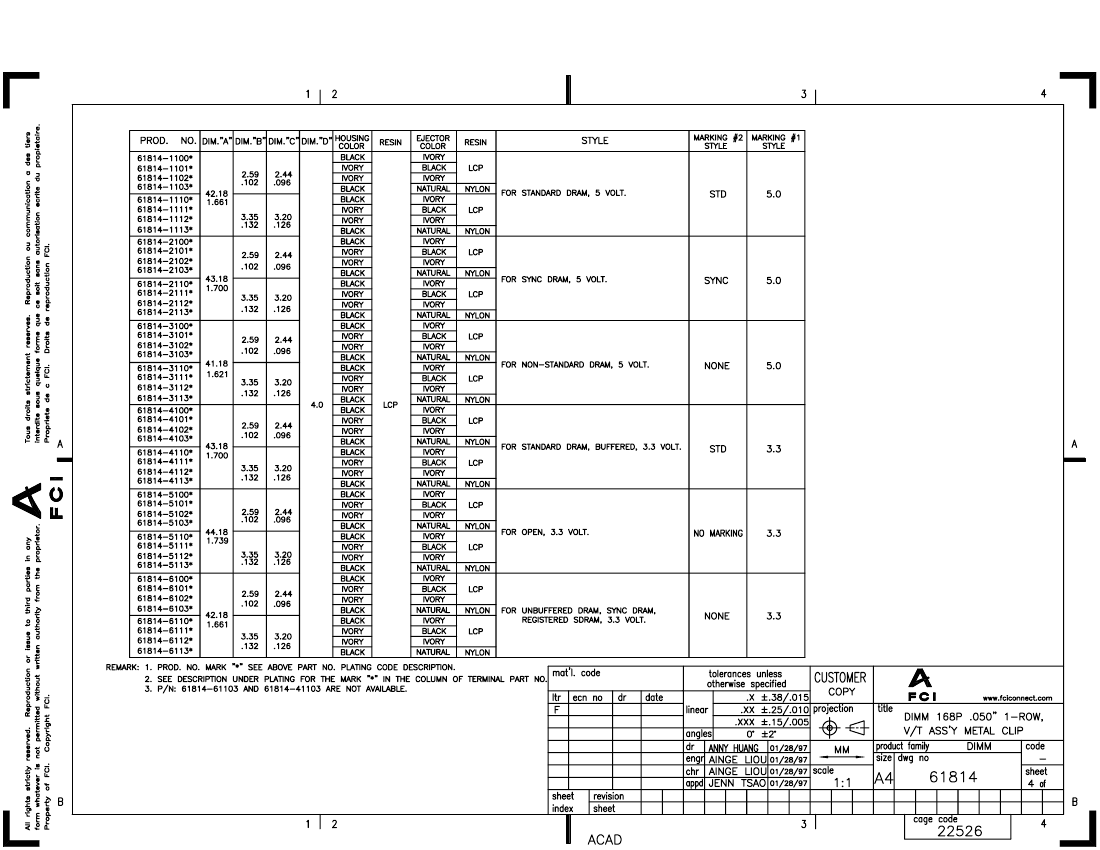

Manufacturer's serial number	61814
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE

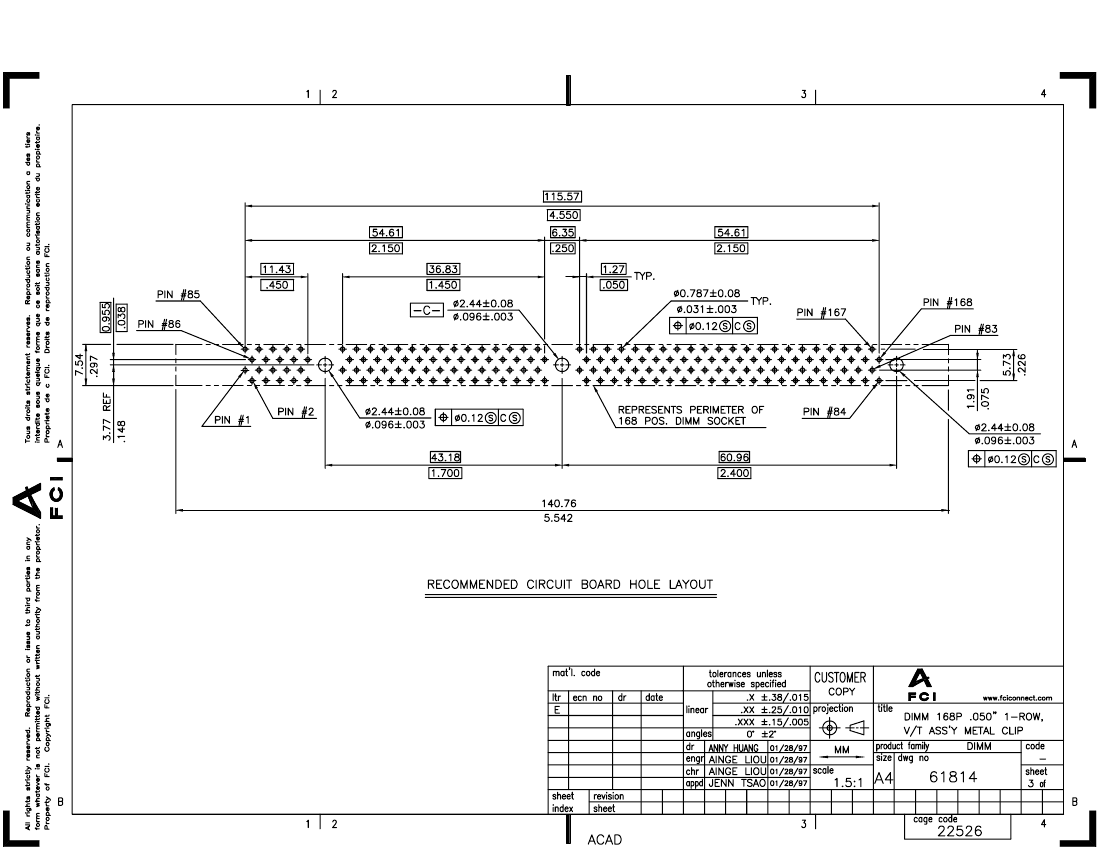

Terminal pitch	1.25 mm
Termination type	SOLDER
Total number of contacts	168
UL Flammability Code	94V-0

PDM: Rev:F

STATUS:

Released

Printed: Jul 28, 2010
