380-007
EMI/RFI Non-Environmental Backshell
Light-Duty with Strain Relief

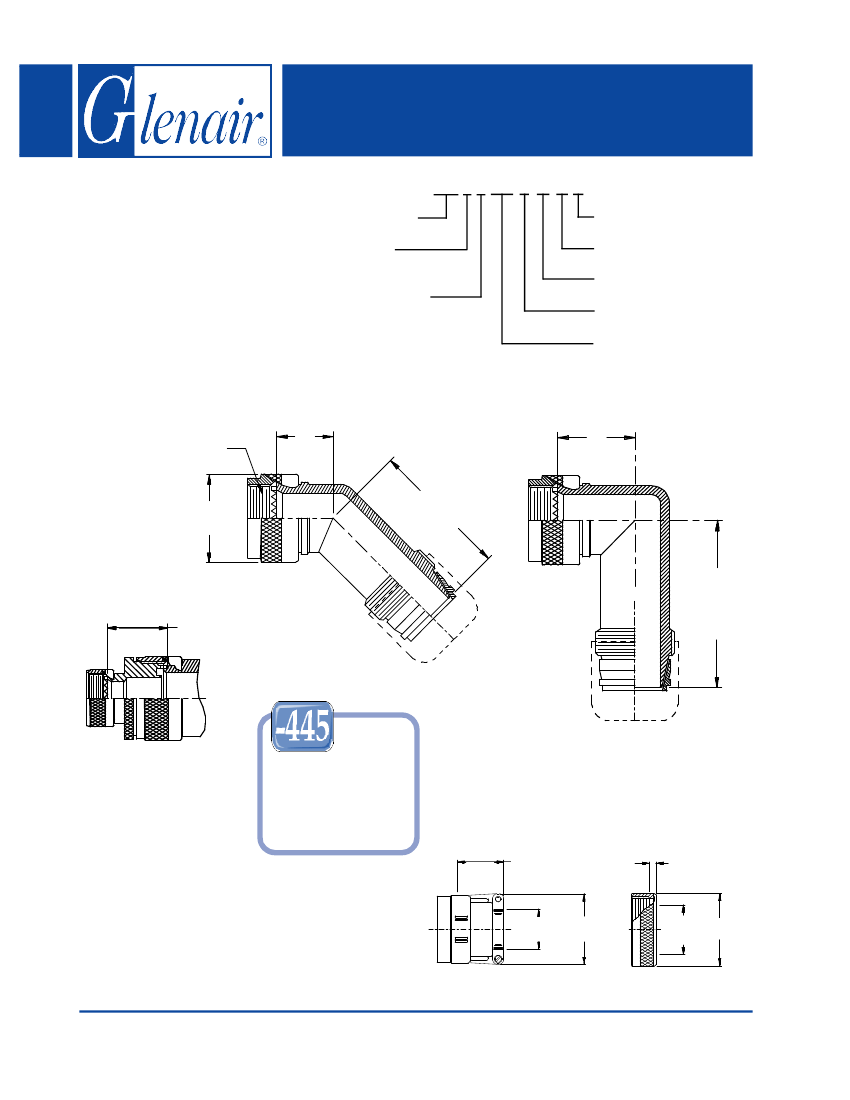

Type C - Rotatable Coupling - Standard Profile
380 F H 007 M 16 05 L
Product Series
Connector
Designator
Angle and Profile
H = 45
J = 90
See page 38-30 for straight
Strain Relief Style (L, G)
Cable Entry (Tables IV, V)
Shell Size (Table I)
Finish (Table II)
Basic Part No.
38
CONNECTOR
DESIGNATORS
A-F-H-L-S
ROTATABLE
COUPLING
TYPE C OVERALL
SHIELD TERMINATION
A Thread
(Table I)
E
(Table III)
G
(Table III)
C Typ.
(Table I)
F (Table III)
.88 (22.4)
Max
H
(Table
III)
Now Available
with the NESTOR
STYLE 2
(See Note 1)
Glenair’s Non-Detent,
Spring-Loaded, Self-
Locking Coupling.
Add “-445” to Specify
This AS85049 Style “N”
Coupling Interface.
STYLE L
Light Duty
(Table IV)
.850 (21.6)
Max
STYLE G
Light Duty
(Table V)
.072 (1.8)
Max
Cable
Entry
Cable
Range
K
L
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 34
Light-Duty with Strain Relief
Type C - Rotatable Coupling - Standard Profile
See inside back cover fold-out or
pages 13 and 14 for unabridged
Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig.
E
A-F-L-S H
Max
08
09
.639 (16.2)
10
.664 (16.9)
11
12
13
.688 (17.5)
14
15
.705 (17.9)
16
.732 (18.6)
17
18
19
.748 (19.0)
20
.773 (19.6)
21
22
23
.800 (20.3)
24
25
.823 (20.9)
28
1.041 (26.4)
36
1.138 (28.9)
40
1.184 (30.1)
61
.917 (23.3)
F
Max
1.100 (27.9)
1.130 (28.7)
1.150 (29.2)
1.180 (30.0)
1.200 (30.5)
1.210 (30.7)
1.230 (31.2)
1.270 (32.3)
1.300 (33.0)
1.470 (37.3)
1.560 (39.6)
1.600 (40.6)
1.330 (33.8)
G
Max
.750 (19.1)
.810 (20.6)
.870 (22.1)
.920 (23.4)
.980 (24.9)
1.020 (25.9)
1.080 (27.4)
1.140 (29.0)
1.200 (30.5)
1.480 (37.6)
1.720 (43.7)
1.830 (46.5)
1.320 (33.6)
H
Max
1.210 (30.7)
1.270 (32.3)
1.330 (33.8)
1.400 (35.6)
1.460 (37.1)
1.480 (37.6)
1.540 (39.1)
1.620 (41.1)
1.690 (42.9)
1.930 (49.0)
2.130 (54.1)
2.240 (56.9)
1.690 (42.9)
TABLE: STANDARD FINISHES
GLENAIR
SYMBOL
B
M
NF
FINISH
Cadmium Plate, Olive Drab
Electroless Nickel
Cadmium Plate, Olive Drab
Over Electroless Nickel
See Inside Back Cover
for Additional Finish Options
Dash
No.
01
02
03
04
05
06
07
08
09
10
TABLE IV: CABLE ENTRY
Cable Range
K
Max
Min
Max
.781 (19.8)
.062 (1.6)
.125 (3.2)
.968 (24.6)
.125 (3.2)
.250 (6.4)
1.046 (26.6)
.250 (6.4)
.375 (9.5)
1.156 (29.4)
.250 (6.4)
.500 (12.7)
1.218 (30.9)
.375 (9.5)
.625 (15.9)
1.343 (34.1)
.500 (12.7)
.750 (19.1)
1.468 (37.3)
.625 (15.9)
.875 (22.2)
1.593 (40.5)
.625 (15.9)
1.000 (25.4)
1.718 (43.6)
.750 (19.1)
1.125 (28.6)
1.843 (46.8)
.875 (22.2)
1.250 (31.8)
TABLE V: CABLE ENTRY
Cable Entry
L
Dash
Max
Max
No.
.125 (3.2)
.593 (15.1)
01
.250 (6.4)
.718 (18.2)
02
.375 (9.5)
.843 (21.4)
03
.500 (12.7)
.968 (24.6)
04
.625 (15.9)
1.109 (28.2)
05
.750 (19.1)
1.218 (30.9)
06
.875 (22.2)
1.343 (34.1)
07
1.000 (25.4)
1.468 (37.3)
08
1.125 (28.6)
1.593 (40.5)
09
1.250 (31.8)
1.718 (43.6)
10
1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
Dimensions E, F, G and H will not apply. Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the wire bundle or
cable. Dimensions shown are not intended for inspection criteria.
4. -445 "NESTOR" modification not available for MIL-DTL-38999 Series II.
Add “-445” to Specify Glenair’s Non-Detent,
("NESTOR") Spring-Loaded, Self-Locking Coupling.
See Page 41 for Details.
