360-017
Non-Environmental Backshell
with QwikClamp® Strain Relief
Standard Profile - Self-Locking - Rotatable Coupling
36
CONNECTOR
DESIGNATORS
360 F S 017 M 16 10 6
Product Series
Connector Designator
Angle and Profile
H = 45°
J = 90°
S = Straight
Basic Part No.
Length ± .060 (1.52)
Min. Order
Length 1.5 Inch
(See Note 1)
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Cable Entry (Tables IV)
Shell Size (Table I)
Finish (Table II)
A-F-H-L-S
SELF-LOCKING
ROTATABLE
COUPLING
QWIKCLAMP®
STRAIN RELIEF

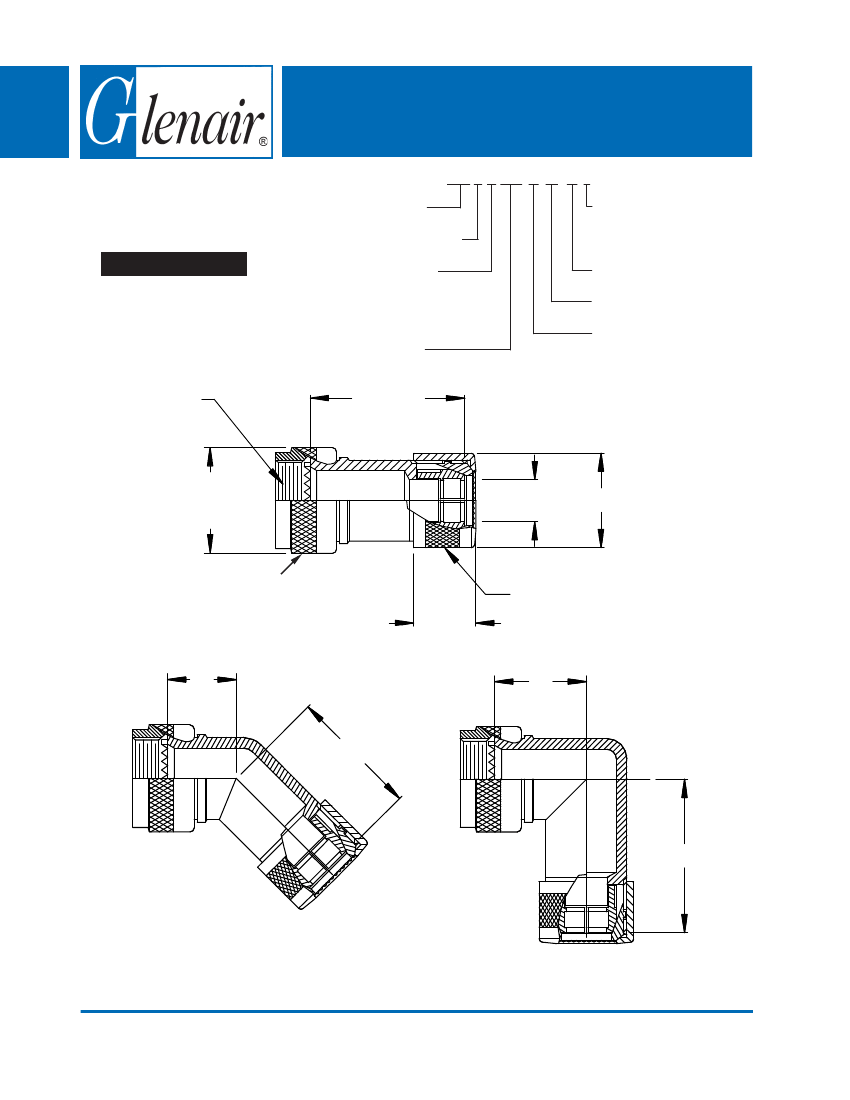

A Thread
(Table I)
E Typ.
(Table I)
Cable
Range
L (Table IV)
Anti-Rotation
Device (Typ.)
K
(Table IV)
F
(Table III)
Internal Mechanical
Strain-Relief
Anti-Rotation (Typ.)
H
(Table III)
G (Table III)
J (Table III)
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 36 - Page 8
with QwikClamp® Strain Relief
Standard Profile - Self-Locking - Rotatable Coupling
See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig.
H
A-F-L-S
09
08
11
10
13
12
15
14
17
16
19
18
21
20
23
22
25
24
28
32
36
40
44
F
Max
.795 (20.2)
.820 (20.8)
.844 (21.4)
.861 (21.9)
.888 (22.6)
.904 (23.0)
.929 (23.6)
.956 (24.3)
.979 (24.9)
1.197 (30.4)
1.280 (32.5)
1.294 (32.9)
1.340 (34.0)
1.360 (34.5)
G
Max
1.390 (35.3)
1.420 (36.1)
1.440 (36.6)
1.470 (37.3)
1.490 (37.8)
1.500 (38.1)
1.520 (38.6)
1.560 (39.6)
1.590 (40.4)
1.760 (44.7)
1.800 (45.7)
1.850 (47.0)
1.890 (48.0)
1.940 (49.3)
H
Max
.906 (23.0)
.966 (24.5)
1.026 (26.1)
1.076 (27.3)
1.136 (28.9)
1.176 (29.9)
1.236 (31.4)
1.296 (32.9)
1.356 (34.4)
1.636 (41.6)
1.780 (45.2)
1.876 (47.7)
1.986 (50.4)
2.235 (56.8)
J
Max
1.500 (38.1)
1.560 (39.6)
1.620 (41.1)
1.690 (42.9)
1.750 (44.5)
1.770 (45.0)
1.830 (46.5)
1.910 (48.5)
1.980 (50.3)
2.220 (56.4)
2.310 (58.7)
2.420 (61.5)
2.530 (64.3)
2.650 (67.3)
Dash
No.
08
12
16
20
24
28
32
36
40
44
48
K
Max
.530 (13.5)
.710 (18.0)
.720 (18.3)
.720 (18.3)
.660 (16.8)
.790 (20.1)
.870 (22.1)
.830 (21.1)
.820 (20.8)
.910 (23.1)
.900 (22.9)
TABLE IV: CABLE ENTRY
Cable Range
L
Max
Min
Max
.720 (18.3)
.128 (3.3)
.250 (6.4)
.910 (23.1)
.233 (5.9)
.375 (9.5)
1.090 (27.7)
.358 (9.1)
.500 (12.7)
1.220 (31.0)
.482 (12.2)
.625 (15.9)
1.340 (34.0)
.545 (13.8)
.750 (19.1)
1.530 (38.9)
.670 (17.0)
.875 (22.2)
1.720 (43.7)
.795 (20.2)
1.000 (25.4)
1.850 (47.0)
.889 (22.6)
1.125 (28.6)
1.970 (50.0)
1.014 (25.8)
1.250 (31.8)
2.090 (53.1)
1.155 (29.3)
1.375 (34.9)
2.280 (57.9)
1.280 (32.5)
1.500 (38.1)
TABLE II: STANDARD FINISHES
1. Consult factory for shorter lengths on straight backshells.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for
the wire bundle or cable.
Dimensions shown are not intended for inspection
criteria.
