39732-0008 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 39732-0008

39732-0008: DescriptionPluggable Terminal Blocks 5.0MM EURO HDR 45D CL ENDS 08C-GRN; CategoryThe connector; File Size136KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

39732-0008 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39732-0008	-	-	View	Buy Now

39732-0008 Overview

Pluggable Terminal Blocks 5.0MM EURO HDR 45D CL ENDS 08C-GRN

39732-0008 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Pluggable Terminal Blocks
RoHS	Not Applicable
Product	Headers
Number of Positions	8 Position
Pitch	5 mm
Factory Pack Quantity	280

Preview

Download Datasheet

View All

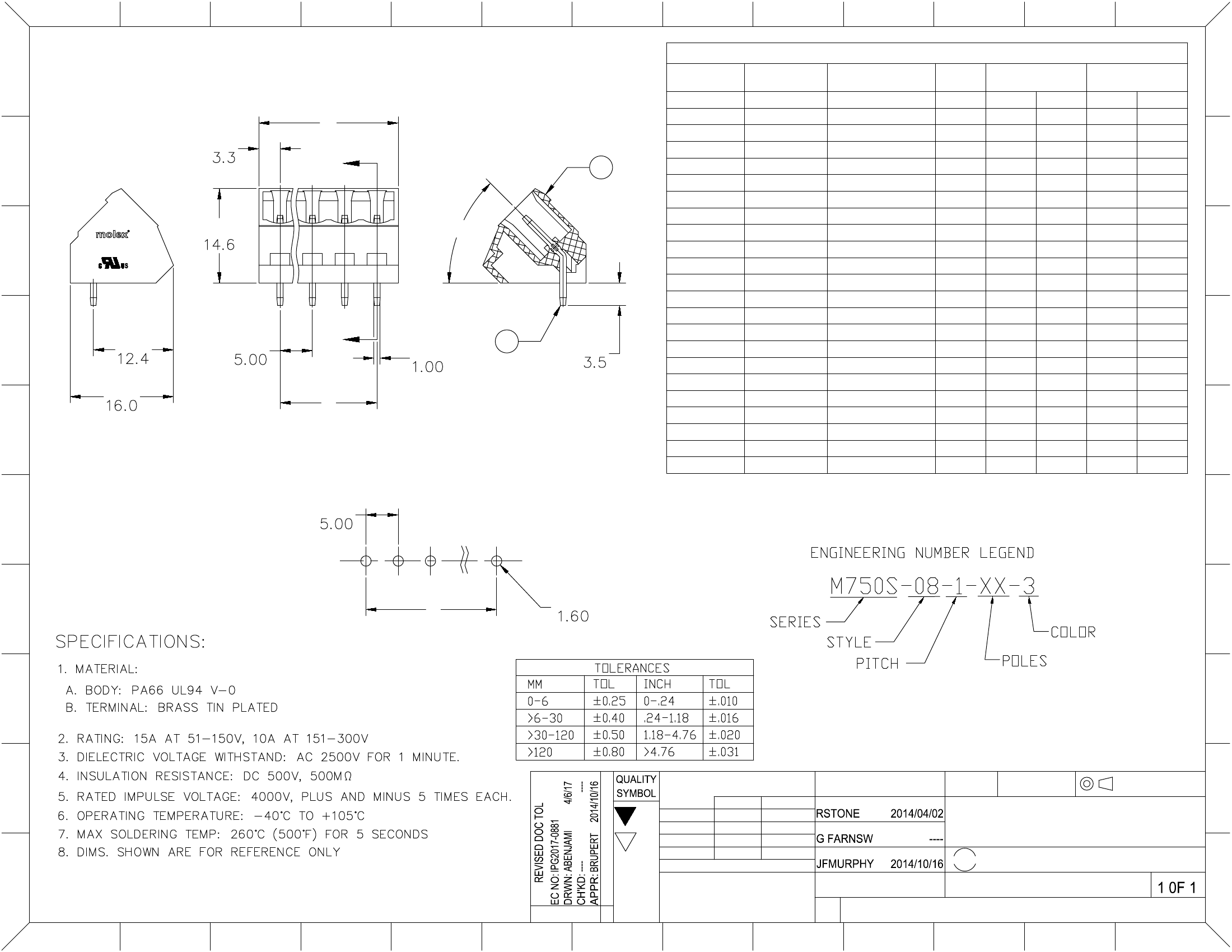

PART NUMBER DATA

CIRCUITS

.13

.57

M750S

PART

NUMBER

397320002

397320003

397320004

397320005

397320006

397320007

397320008

397320009

397320010

397320011

397320012

.49

.63

.197

.039

SQ.

.14

ENGINEERING

NUMBER

M750S-08-1-02-3

M750S-08-1-03-3

M750S-08-1-04-3

M750S-08-1-05-3

M750S-08-1-06-3

M750S-08-1-07-3

M750S-08-1-08-3

M750S-08-1-09-3

M750S-08-1-10-3

M750S-08-1-11-3

M750S-08-1-12-3

M750S-08-1-13-3

M750S-08-1-14-3

M750S-08-1-15-3

M750S-08-1-16-3

M750S-08-1-17-3

M750S-08-1-18-3

M750S-08-1-19-3

M750S-08-1-20-3

M750S-08-1-21-3

M750S-08-1-22-3

M750S-08-1-23-3

M750S-08-1-24-3

COLOR

GREEN

A IN mm

.46

.65

.85

1.05

1.24

1.44

1.64

1.84

2.03

2.23

2.43

2.62

2.82

3.02

3.21

3.41

3.61

3.80

4.00

4.20

4.39

4.59

4.79

11.6

16.6

21.6

26.6

31.6

36.6

41.6

46.6

51.6

56.6

61.6

66.6

71.6

76.6

81.6

86.6

91.6

96.6

101.6

106.6

111.6

116.6

121.6

B IN mm

.197

.394

.591

.787

.984

1.181

1.378

1.575

1.772

1.969

2.165

2.362

2.559

2.756

2.953

3.150

3.346

3.543

3.740

3.937

4.134

4.331

4.528

5.00

10.00

15.00

20.00

25.00

30.00

35.00

40.00

45.00

50.00

55.00

60.00

65.00

70.00

75.00

80.00

85.00

90.00

95.00

100.00

105.00

110.00

115.00

PCB LAYOUT

.197

REF. LAST 2 DIGITS OF PART NUMBER EQUAL NUMBER OF POLES

CONTACT FACTORY FOR OPTIONAL COLORS

DESCRIPTION

GENERAL TOLERANCES

(UNLESS SPECIFIED)

DIMENSION STYLE

SCALE

DESIGN UNITS

IN/MM

DRAWN BY

DATE

TITLE

CHECKED BY

DATE

---

METRIC

THIRD ANGLE

PROJECTION

4 PLACES

3 PLACES

2 PLACES

1 PLACE

---

INCH

---

APPROVED BY

DATE

molex

5.00MM EURO HEADER

45 DEGREE CLOSED ENDS

----

MOLEX INCORPORATED

SHEET NO.

REV

DRAFT WHERE

APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

MATERIAL NO.

DOCUMENT NO.

SEE CHART

SIZE

SD-39732-001

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX

INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
