Preliminary Data Sheet
GPZ30A . . . 30M Series
Description
3.0 Amp Glass Passivated
Sintered Rectifiers
Mechanical Dimensions
JEDEC
D0-201AD
.190
.210
.285
.375
1.00 Min.
.050 typ.
Features
n
LOWEST COST FOR GLASS SINTERED
CONSTRUCTION
n
LOWEST V
F
FOR GLASS SINTERED
CONSTRUCTION
n
TYPICAL I
R
< 100 nAmps
n
3.0 AMP OPERATION @ T
A
= 55°C, WITH
NO THERMAL RUNAWAY
n
SINTERED GLASS CAVITY-FREE
JUNCTION
Electrical Characteristics @ 25
o
C.
Maximum Ratings
Peak Repetitive Reverse Voltage...V
RRM
RMS Reverse Voltage...V
R(rms)
DC Blocking Voltage...V
DC
Average Forward Rectified Current...I
F(av)
Current 3/8" Lead Length @ T
A
= 55°C
Non-Repetitive Peak Forward Surge Current...I
FSM
8.3mS, ½ Sine Wave Superimposed on Rated Load
Forward Voltage @ 3.0A...V
F
Full Load Reverse Current...I
R
(av)
Full Cycle Average @ T
A
= 55°C
DC Reverse Current...I
R(max)
@ Rated DC Blocking Voltage
T
A
= 25°C
T
A
= 150°C
30A
50
35
50
30B
100
70
100
GPZ30A . . . 30M Series
30D
200
140
200
30G
400
280
400
30J
600
420
600
30K
800
560
800
30M
1000
700
1000
Units
Volts
Volts
Volts
Amps
Amps
Volts
µAmps
............................................. 3.0 ...............................................
............................................. 1 2 5 ...............................................
< ...... 1.1 ...... > < ............................. 1.0 ........................... >
............................................. 1 0 0 ...............................................
............................................. 5.0 ...............................................
............................................. 2 0 0 ...............................................
............................................. 4 0 ...............................................
............................................. 1 5 ...............................................
............................................. 2.0 ...............................................
µAmps
pF
°C
/ W
µS
°C
Typical Junction Capacitance...C
J
(Note 1)
Typical Thermal Resistance...R
θJA
(Note 2)
Typical Reverse Recovery Time...t
RR
(Note 3)
Operating & Storage Temperature Range...T
J
, T
STRG
......................................... -65 to 175 ..........................................
Preliminary Data Sheet
3.0 Amp Glass Passivated
Sintered Rectifiers

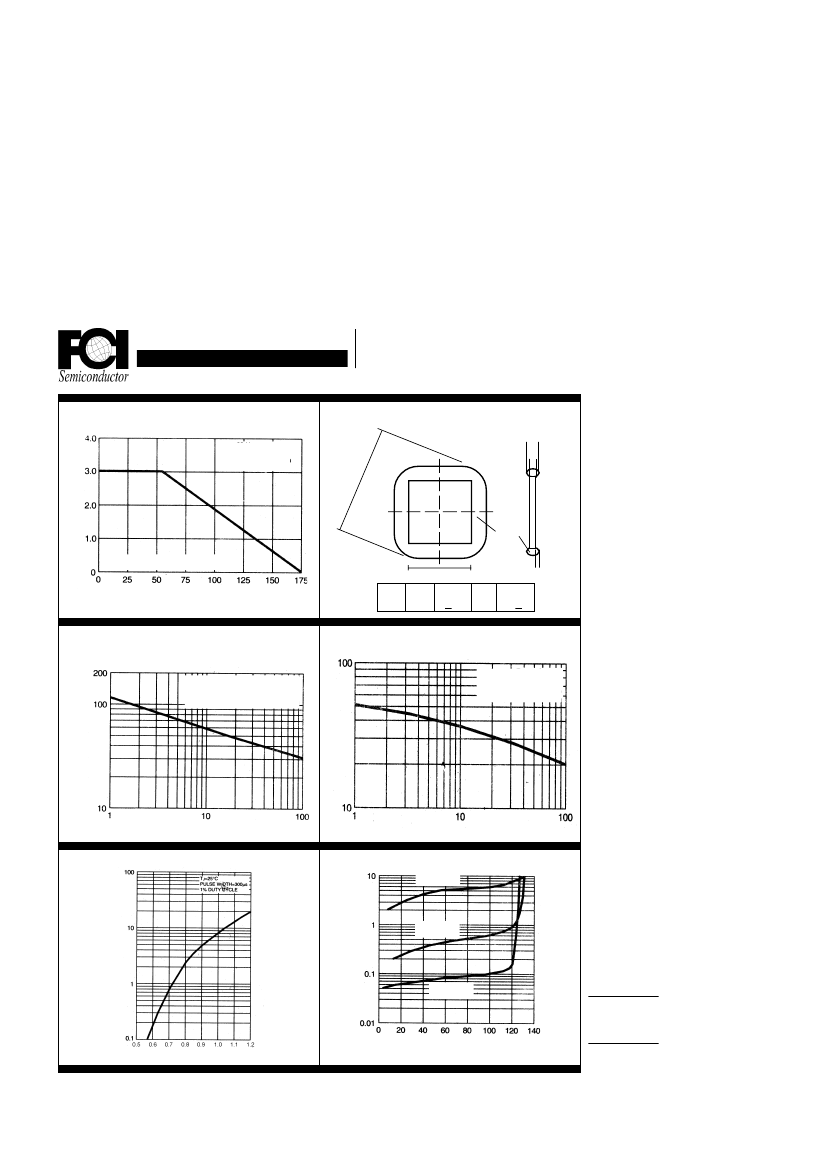

Forward Current Derating Curve
60 Hz
RESISTIVE OR
INDUCTIVE LOAD
A
T
D
Glass
0.375″ (9.5mm) LEAD LENGTH
″
d
G
T
A
= Ambient Temperature (°C)
°
D
126
d
G
86 2+0.5
T
11
A
15+1
Non-Repetitive
Peak Forward Surge Current
T
J
= T
J
max.
8.3 mS Single Half Sine Wave
(Jedec Method)
Typical Junction Capacitance
T
J
= 25°C
°
f = 1.0 MHZ
V
SIG
= 50mVp-p
Amps
Number of Cycles @ 60 HZ
Typical Instantaneous Forward Characteristics
pF
Reverse Voltage (Volts)
Typical Reverse Characteristics
T
J
= 125°C
°
µ
Amps
T
J
= 75°C
°
Ratings at
25 Deg. C ambient
temperature
unless otherwise
specified.
Single Phase Half
Wave, 60 HZ
Resistive or
Inductive Load.
For Capacitive
Load, Derate
Current by 20%.
Amps
T
J
= 25°C
°
Volts
Percent of Rated Peak Voltage
NOTES:
1. Measured @ 1 MHZ and applied reverse voltage of 4.0V.
2. Thermal Resistance from Junction to Ambient at 3/8" Lead Length, P.C. Board Mounted.
3. Reverse Recovery Condition I
F
= 0.5A, I
R
= 1.0A, I
RR
= 0.25A.
GPZ30A . . . 30M Series
Die Dimension (mils)
Amps
