46437-1084 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 46437-1084

46437-1084: DescriptionPower to the Board Ten60 RA PLUG 24S-4DC-3AC; CategoryThe connector The connector; File Size26KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

46437-1084 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	46437-1084	-	-	View	Buy Now

46437-1084 Overview

Power to the Board Ten60 RA PLUG 24S-4DC-3AC

46437-1084 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	EXTREME TEN60POWER, POLARIZED
body width	0.394 inch
subject depth	1.167 inch
body length	3.278 inch
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S24P7
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	1500VDC V
Durability	200 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation option 1	GUIDE SLOT
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Rated current (signal)	2.5 A
Guideline	CSA,TUV,UL
reliability	COMMERCIAL
Shell material	POLYETHYLENE
Termination type	SOLDER
Total number of contacts	31
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 02/06/2018

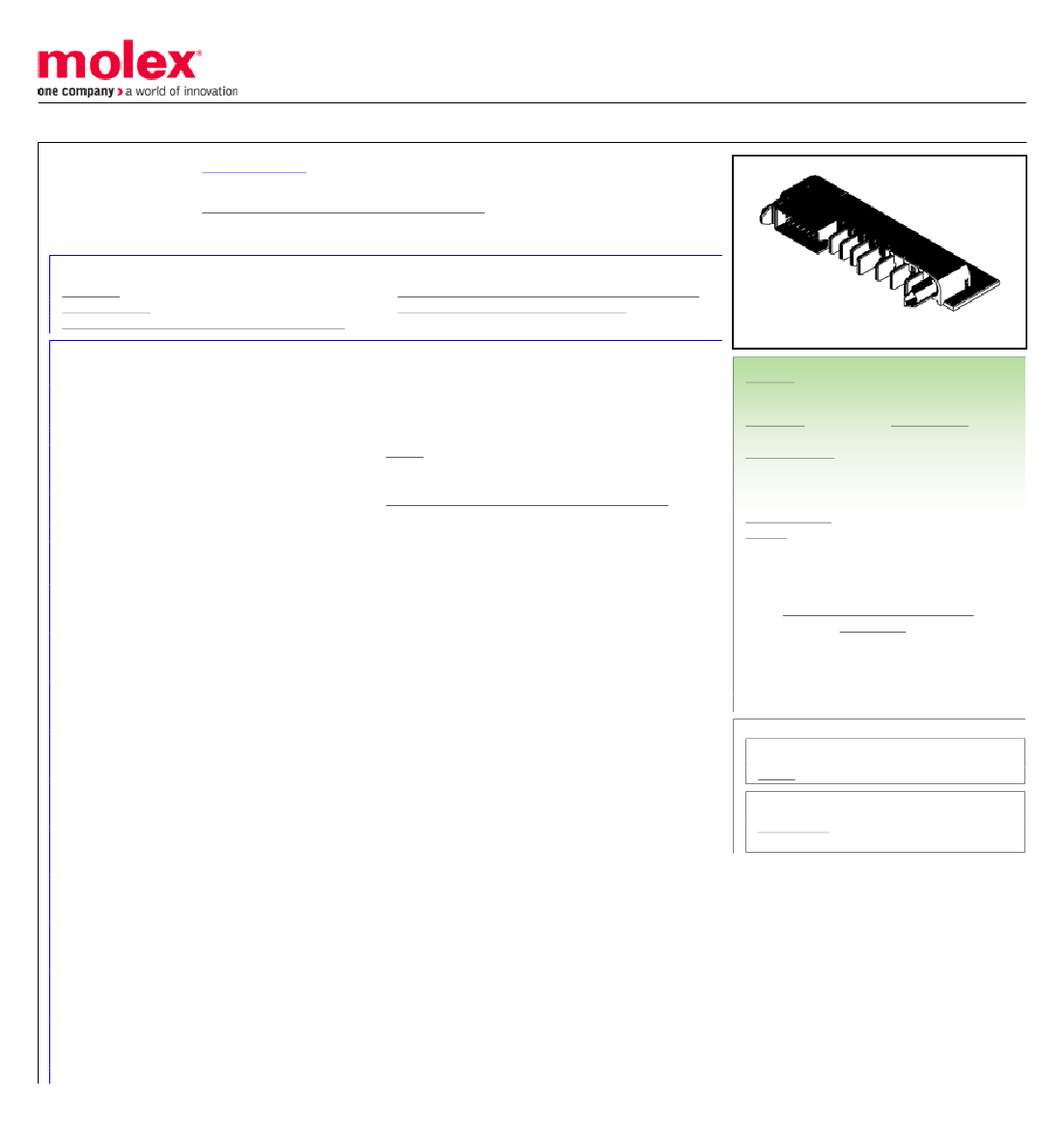

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0464371084

Active

EXTreme Ten60Power High-Current Connector

2.54mm, 5.50mm, 7.50mm Pitch EXTreme Ten60Power Right Angle Plug Assembly

with Guide Pins, 24 Signal Circuits, 4 DC Power Circuits, 3 AC Power Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-46436-100-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Overview

Product Name

UPC

Physical

(p)ower-(s)ignal Configuration

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Application Specification AS-46436-100-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E29179

PCB Headers

46437

Board-to-Board, Power, Signal

See PS-46436-100 for details

EXTreme Ten60Power High-Current Connector

EXTreme Ten60Power

884982045415

3p - 4p - 24s

Black

200

94V-0

Yes

None

18.00mm

Copper

Gold

Tin

High Temperature Thermoplastic

40.000/g

1, 3

Right Angle

2.84mm

Yes

None

1.58mm

Tray

2.54mm, 5.50mm, 7.50mm

Yes

-40°C to +105°C

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

46437 Series

Mates With

46562-1084 EXTreme Ten60Power

Receptacle
