D38999/20GC35SA datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> D38999/20GC35SA

Preview

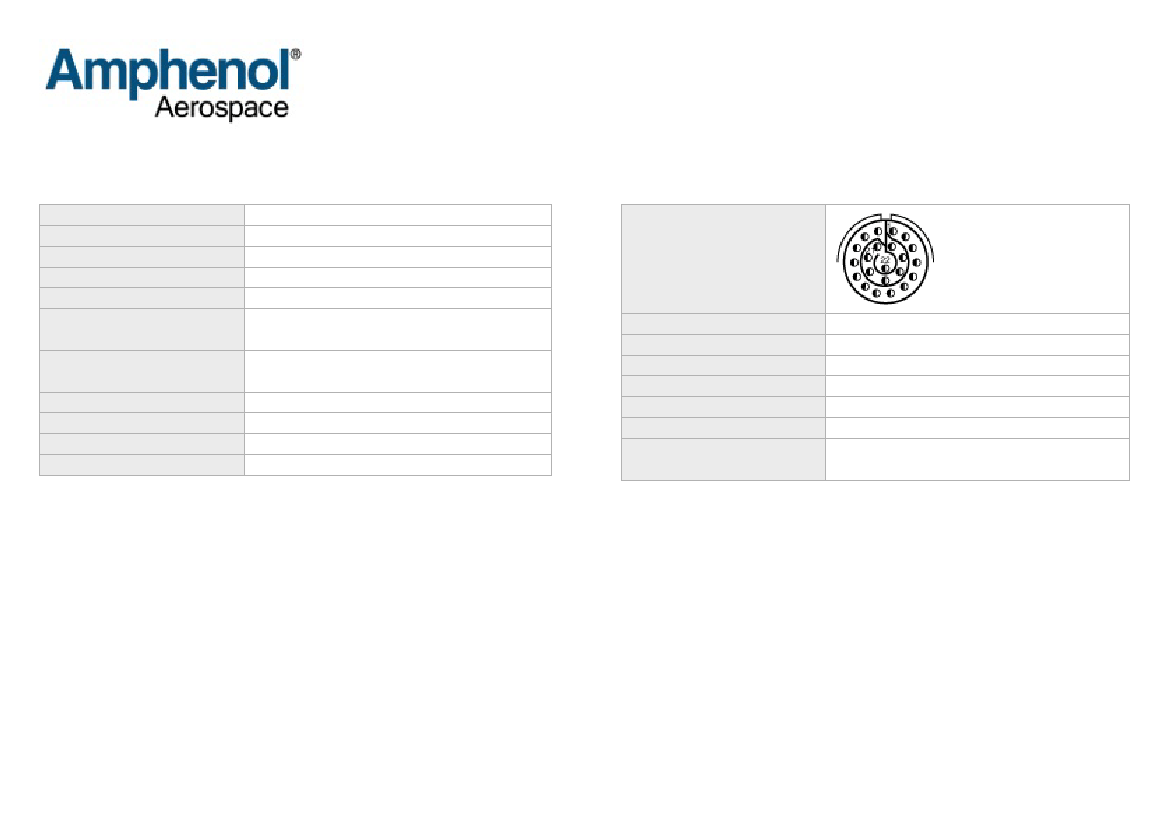

D38999/20GC35SA: DescriptionCircular MIL Spec Connector 22P Wall Mt Recpt Sz 13 w/ Skt Cont; CategoryThe connector; File Size163KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

D38999/20GC35SA Overview

Circular MIL Spec Connector 22P Wall Mt Recpt Sz 13 w/ Skt Cont

D38999/20GC35SA Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	Circular MIL Spec Connector
Shipping Restrictions	This product may require additional documentation to export from the United States.
RoHS	N
Number of Positions	22 Position
Insert Arrangement	13 - 35
Contact Gender	Socket (Female)
MIL Type	MIL-DTL-38999 III
Product	Receptacles
Shell Size	13
Shell Style	Wall Mount
Mounting Style	Panel
Termination Style	Crimp
Current Rating	5 A
Contact Plating	Gold
Contact Material	Copper Alloy
Mounting Angle	Straight
Shell Plating	Nickel
Mating Style	Self Locking
Shell Material	Aluminum

Preview

Download Datasheet

View All

1.137

[28.88]

.906

[23.01]

.905

[22.99]

.469

[11.91]

.820

[20.83]

.812

[20.62]

.8750

.234

[5.94]

M18X1-6g

.922

[23.42]

.128

[3.25]

.194

[4.93]

.153

[3.89]

.750

[19.05]

D38999/20GC35SA
