73415-1001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 73415-1001

73415-1001: DescriptionRF Connectors / Coaxial Connectors RIGHT ANGLE JACK PCB; CategoryThe connector The connector; File Size30KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

73415-1001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	73415-1001	-	-	View	Buy Now

73415-1001 Overview

RF Connectors / Coaxial Connectors RIGHT ANGLE JACK PCB

73415-1001 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	not_compliant
Factory Lead Time	10 weeks
Other features	ROHS COMPLIANT
body width	0.15 inch
subject depth	0.256 inch
body length	0.138 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF MMCX CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
Contact resistance	5 mΩ
Contact style	RND PIN-SKT
Coupling type	SNAP
DIN compliance	NO
Dielectric withstand voltage	700VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	15.1232 N
Insertion loss	0.2 dB
Insulation resistance	1000000000 Ω
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating frequency	6 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	COMMERCIAL
Shell surface	GOLD
Shell material	BRASS
Terminal length	0.118 inch
Termination type	SOLDER
Total number of contacts	1
voltage standing wave ratio	1.35
Evacuation force-minimum value	5.96032 N
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 02/27/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

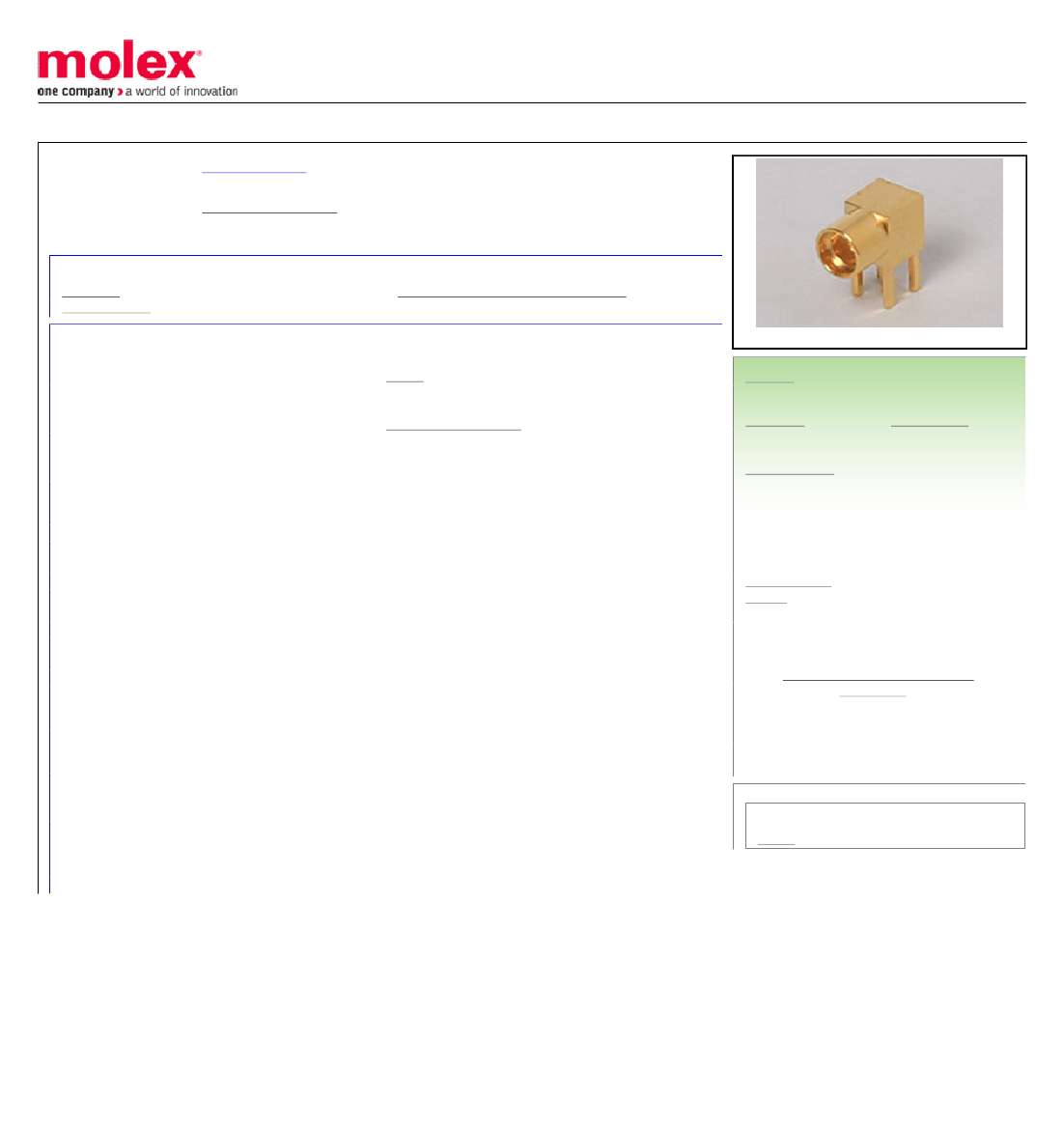

Part Number:

Status:

Overview:

Description:

0734151001

Active

MMCX RF Connectors

50 Ohms, MMCX Right Angle Jack, PCB, Gold (Au) Plated Body per Commercial

Requirements, Tray

Documents:

3D Model

Drawing (PDF)

General

Product Family

Series

Data Load Status

Made From

Overview

Product Name

Style

UPC

Wire/Cable Type

Physical

Gender

Keying to Mating Part

Net Weight

Orientation

PCB Mounting

PCB Thickness - Recommended

Packaging Type

Panel Mount

Panel Mount Method

Reverse Polar

Electrical

Impedance

Solder Process Data

Duration at Max. Process Temperature (seconds)

Lead-freeProcess Capability

Max. Cycles at Max. Process Temperature

Process Temperature max. C

Material Info

Reference - Drawing Numbers

Sales Drawing

RoHS Certificate of Compliance (PDF)

Series image - Reference only

RF/Coax Connectors

73415

Data Bulk Loaded from Saqqara

0895086802, 0895098000, 0895098100, 0895100003

MMCX RF Connectors

MMCX

PCB

800755970708

N/A

Jack

None

0.436/g

Right Angle

Through Hole

2.40mm

Tray

N/A

50Ω

010

SMC&WAVE

002

260

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant with

Exemption 6(c)

REACH SVHC

Contained Per -

ED/01/2018 (15

January 2018)

2,4-Di-tert-butyl-6-(5-

chlorobenzotriazol-2-

yl)p

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

50 Image

Not Relevant

Not Contained

Search Parts in this Series

73415 Series

SD-73415-100

This document was generated on 02/27/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
