Part Number

Search

85052-0282

Description
DIN 41612 Connectors DINCONN. R FEMALE 96 MALE 96CKT 850520282
CategoryThe connector    The connector
File Size28KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

85052-0282 Online Shopping

Suppliers Part Number Price MOQ In stock
85052-0282 - - View Buy Now

85052-0282 Overview

DIN 41612 Connectors DINCONN. R FEMALE 96 MALE 96CKT 850520282

85052-0282 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSTANDARDS: DIN 41612; IEC 603-2
body width0.413 inch
subject depth0.418 inch
body length3.701 inch
Body/casing typePLUG
Connector typeBOARD EURO CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTin (Sn)
Contact point genderFEMALE
Contact materialCOPPER ALLOY
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceYES
Dielectric withstand voltage1000VAC V
Durability500 Cycles
Filter functionNO
IEC complianceYES
maximum insertion force.9452 N
Insulation resistance1000000000 Ω
insulator materialGLASS FILLED POLYESTER
JESD-609 codee3
MIL complianceNO
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Loaded row nameA,B,C
PCB row number3
Number of rows loaded3
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness39u inch
polarization keyENDS
Rated current (signal)1.5 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts96
UL Flammability Code94V-0

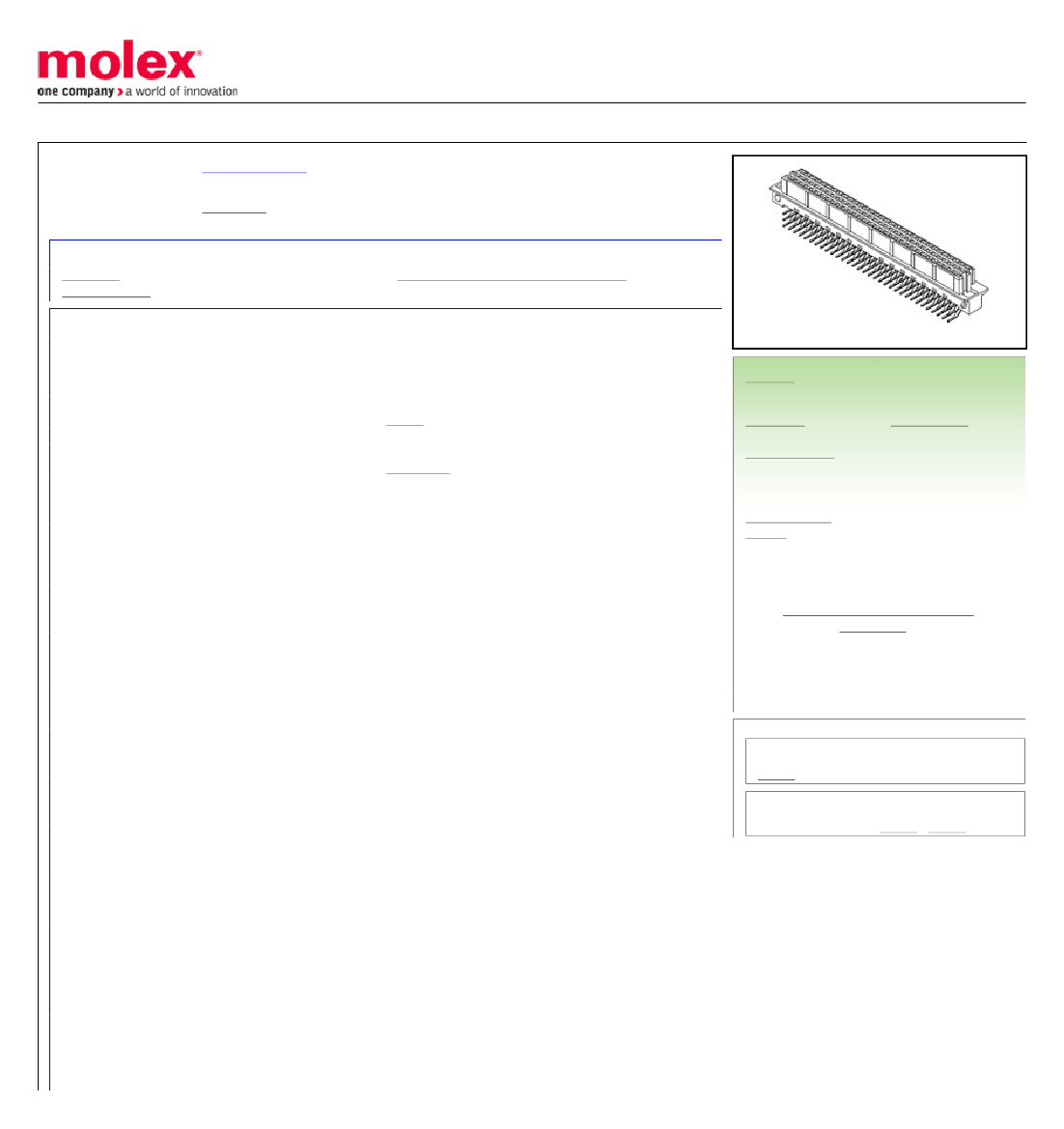

This document was generated on 05/18/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
Documents:
3D Model
Drawing (PDF)
Agency Certification
CSA
UL
General
Product Family
Series
Application
Component Type
Overview
Product Name
Style
UPC
Physical
Circuits (Loaded)
Circuits (maximum)
Durability (mating cycles max)
First Mate / Last Break
Flammability
Guide to Mating Part
Keying to Mating Part
Material - Plating Mating
Net Weight
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Data Rate
Real Signals (per 25mm)
Voltage - Maximum
Solder Process Data
Lead-freeProcess Capability
0850520282
Active
DIN 41612
2.54mm Pitch DIN 41612 Receptacle, Style R Reverse, 96 Circuits
RoHS Certificate of Compliance (PDF)
LR19980
E29179
Backplane Connectors
85052
Backplane
PCB Receptacle
DIN 41612
IEC 603-2/DIN 41612
R
800753857964
96
96
500
No
94V-0
No
Yes
Gold
15.996/g
32
Open Pin Field
3
Right Angle
2.80mm
No
Yes
1.60mm, 3.20mm
Tray
2.54mm
2.54mm
Yes
No
No
-55°C to +125°C
Through Hole
1.0A
622.0 Mbps
30
250V AC (RMS)
N/A
Series image - Reference only
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Not Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
85052 Series
Mates With
DIN 41612 Headers 85003 , 85013
