319-120

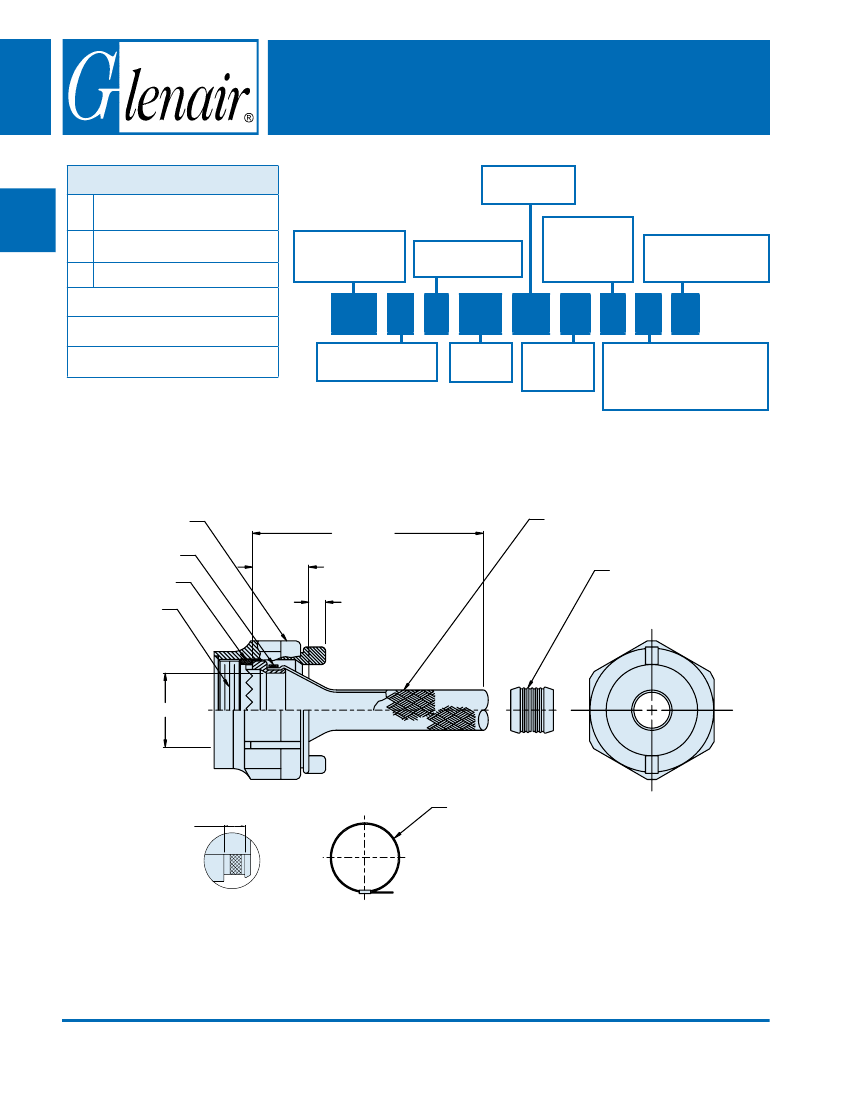

Composite EMI/RFI Backshell
with Shield Sock and
Self-Locking Rotatable Coupling
Finish Symbol
(See
Table III)
Optional Braid
Material
Omit for Standard
(See
Table IV)
Composite
Backshells
CONNECTOR DESIGNATOR:
A
A
F
H
MIL-DTL-5015, -26482 Series II,
and -83723 Series I and III
MIL-DTL-38999 Series I, for Series
II see note 3
MIL-DTL-38999 Series III and IV
Product Series
319
- EMI/RFI Shield
Sock Assemblies
Angle and Profile
S
- Straight
Custom Braid Length
Specify In Inches
(Omit for Std. 12" Length)
SELF-LOCKING
B
ROTATABLE COUPLING
LOW PROFILE
319
H
S
120
Basic Part
Number
XB
15
B
R - 14
Connector Designator
A, F, and H
Connector
Shell Size
(See
Table II)
Split Ring / Band Option
Split Ring (687-749) and Band
(600-052-1) supplied with
R
option
(Omit
for none)
C
Anti-Rotation Device
Crimp Ring
12.00 Min
.40 Ref
.15
Standard Shield IAW 107-030
Nickel / Copper. See Table III for
optional material.
Split Ring
Glenair Part Number 687-749
EMI Shroud
A Thread
D
E
K
F
Termination
Area Free of
Cadmium
Band
Glenair Part
Number 600-052-1
Detail "B"
Finish XN
G
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-14
REV 22 NOVEMBER 2013
with Shield Sock and
Self-Locking Rotatable Coupling
TABLE II: SHELL SIZE
Shell Size
A, F
08
10
12
14
16
18
20
22
24
H
09
11
13
15
17
19
21
23
25
A Code
.265 (6.7)
.370 (9.4)
.506 (12.9)
.580 (14.7)
.705 (17.9)
.784 (19.9)
.909 (23.1)
1.034 (26.3)
1.149 (29.2)
K
Diameter
F Code
.275 (7.0)
.412 (10.5)
.526 (13.4)
.651 (16.5)
.776 (19.7)
.872 (22.1)
1.007 (25.6)
1.132 (28.8)
1.257 (31.9)
H Code
.264 (6.7)
.390 (9.9)
.504 (12.8)
.630 (16.0)
.756 (19.2)
.843 (21.4)
.969 (24.6)
1.091 (27.7)
1.217 (30.9)
TABLE III: FINISH
Symbol
XB
Finish
Composite Material–No Plating, Color
Black, Brass Interface Shroud and
Adapter–Nickel Plated
2000 Hour Corrosion Resistant Ni-
PTFE, Nickel-Fluorocarbon Polymer.
1000 Hour Grey
TM
Composite Material–No Plating, Color
Black and Brown, Brass Interface
Shroud and Adapter–Selectively
Cadmium Plated
(See Detail B)
TABLE IV: BRAID TYPE
Symbol
A
B
L
Standard
T
Braid Type
100% AmberStrand
®
75%/25% AmberStrand
®
Blend
100% ArmorLite
TM
Nickel/Copper 34awg
Tin/Copper 34awg
XMT
XN
NOTES
1.
2.
3.
4.
See Table I in Intro for front-end dimensional details.
See composite thermoplastic shield sock assembly procedure for detailed installation instructions.
Add mod code -475 to end of part number for use with Series II connectors. Backshell to be supplied less shroud.
Coupling nuts supplied unplated.
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-15
Rev. 12 FEBRUARY 2013
