AXG710047

Description
Board to Board & Mezzanine Connectors 10 Pin Socket P=0.35mm H=0.6mm
CategoryThe connector
File Size1MB,12 Pages
ManufacturerPanasonic
Websitehttp://www.panasonic.co.jp/semicon/e-index.html
Environmental Compliance
Download Datasheet Parametric Compare View All

AXG710047 Online Shopping

Suppliers Part Number Price MOQ In stock
AXG710047 - - View Buy Now

AXG710047 Overview

Board to Board & Mezzanine Connectors 10 Pin Socket P=0.35mm H=0.6mm

AXG710047 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerPanasonic
Product CategoryBoard to Board & Mezzanine Connectors
RoHSDetails
ProductSockets
Number of Positions10 Position
Pitch0.35 mm
Number of Rows2 Row
Termination StyleSMD
Mounting AngleStraight
Current Rating5 A
Voltage Rating60 V
PackagingCut Tape
PackagingMouseReel
PackagingReel
Contact PlatingGold
Housing MaterialLiquid Crystal Polymer (LCP)
Contact MaterialCopper Alloy
Flammability RatingUL 94 V-0
Mounting StyleSMD
Insulation Resistance1 GOhms
Maximum Operating Temperature+ 85 C
Minimum Operating Temperature- 55 C
Stack Height0.6 mm
Factory Pack Quantity500
For board-to-FPC
Narrow Pitch Connectors
(0.35mm pitch)

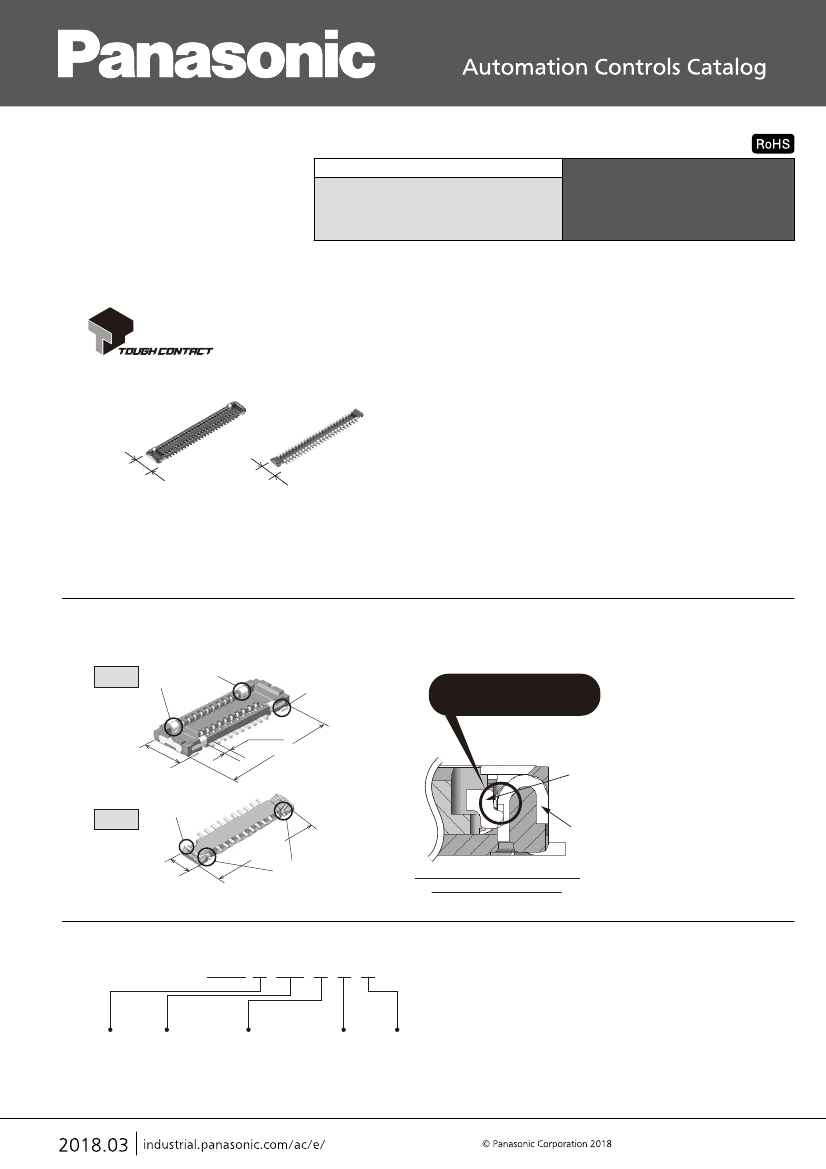

A35US
Low profile! 0.6 mm mated height Slim! 2.2 mm width
FEATURES
1. 0.6 mm mated height with 2.2 mm width
2. Proprietary “Fine Fitting Construction”
3. A slim 2.2 mm (width) design provides space-saving
benefits.
4. “TOUGH CONTACT” construction provides low profile
and slim design resistant to various environmental
conditions.
5. Soldering terminals enhance mounting strength
6. Connectors for inspection available
2.2mm
Socket
1.8mm
Header
APPLICATIONS
Smartphones, tablet PC and other mobile devices
DETAILED FEATURES
Our proprietary design “Fine Fitting Construction” provides a comfortable and tact feel while providing a secure connection
despite being low profile and slim!
Socket
(4 locations)
Fine fitting construction
Soldering terminals
at four corners
Proprietary fine
fitting construction
High removal force is maintained while soldering
terminals on socket and header are held in place.
Soldering terminal on header
2.2mm
0.35mm
6.00mm
(20 pins)
Header
Soldering terminals
at four corners
Soldering terminal on socket
5.30mm
(20 pins)
Fine fitting construction
(4 locations)
1.8mm
Cross section showing mating
with soldering terminals
ORDERING INFORMATION
AXG
0 4
7: Socket
8: Header
Number of pins
(2 digits)
Mated height
(Socket/Header)
0: 0.6 mm
4: (Fixed)
Surface treatment (Contact portion / Terminal portion)
(Socket)
7: Base: Ni plating, Surface: Au plating/Base: Ni plating, Surface: Au plating
(Header)
4: Base: Ni plating, Surface: Au plating/Base: Ni plating, Surface: Au plating
–1–
ACCTB65E 201803-T
