384218 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 384218

384218: DescriptionDIN 41612 Connectors 48P 2.54MM RA MALE TYPE C/2 CLIP 3MM; CategoryThe connector; File Size52KB，2 Pages; ManufacturerERNI Electronics; Environmental Compliance

Download Datasheet Parametric View All

384218 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	384218	-	-	View	Buy Now

384218 Overview

DIN 41612 Connectors 48P 2.54MM RA MALE TYPE C/2 CLIP 3MM

384218 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	ERNI Electronics
Product Category	DIN 41612 Connectors
RoHS	Details
Factory Pack Quantity	30

Preview

Download Datasheet

View All

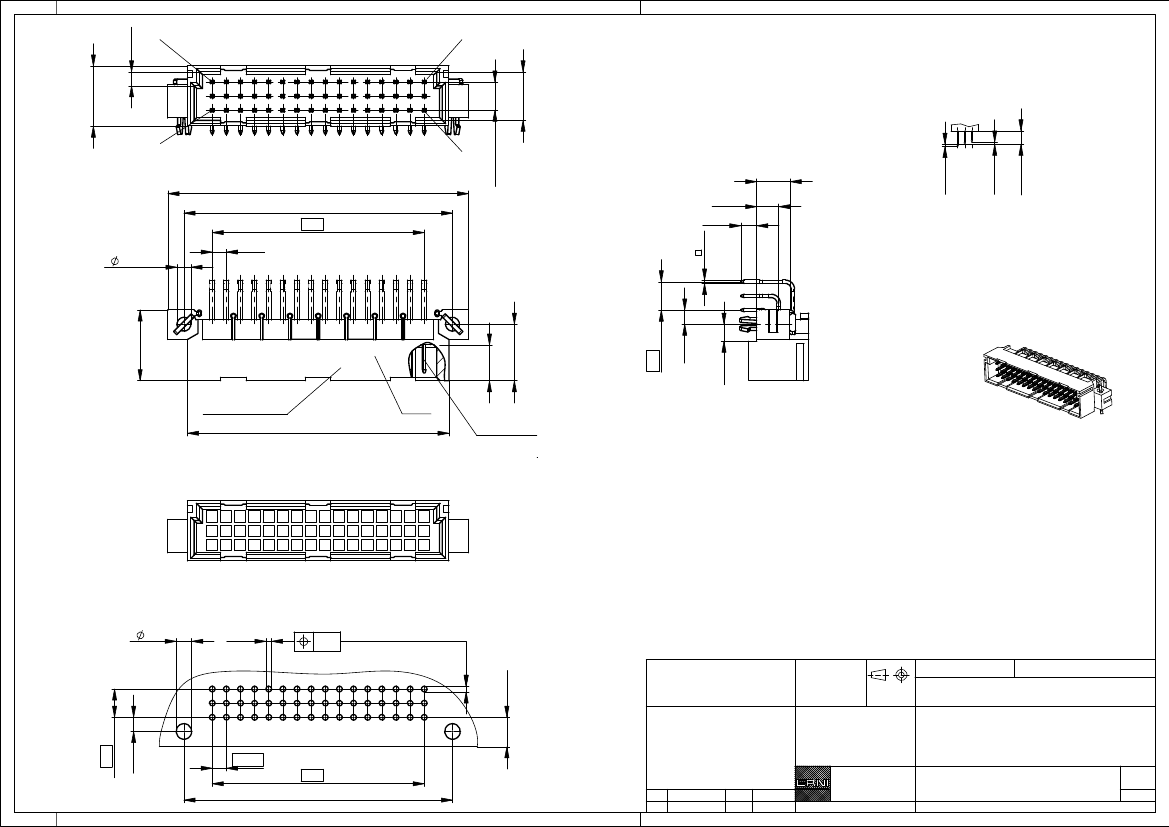

2,5

-0,2

c16

11,1 max.

8,7

+0,1

Stecklänge / mating length

ESL

a16

53,9 max.

48,26

15 x 2,54 (=38,1)

2x2,54=5,08

±0,1

3,95

-0,4

0,6

E =

early mate, late break

/ voreilend

S = standard

L = late mate, early break / nacheilend

2,5

+0,1

2,54

12,7

10,2

-0,2

6,4

-0,1

5,08

ERNI

Anforderungsstufe

class

Datum

date

Stecklänge

mating length

Bestückungsplan /

contact layout

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

S S S S S S S S S S S S S S S S

THR =

through hole reflow

Bauart 4 / t

ype 4

Anforderungsstufe 2 = 400 Steckzyklen

/ performance class 2 = 400 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

+0,1

XXXXXXX

RC 2

2,54

a b c

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Leiterplatten- Lochbild / PCB drillhole pattern

2,8

+0,1

±0,1

0,05

alle Löcher /

all holes

2x 2,54 =5,08

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

2,54

15 x 2,54 (=38,1)

48,26

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Tolerances

All Dimensions

in mm

Scale

5,3

±0,1

2:1

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

09.09.2013

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Messerleiste C/2 48 THR+Clip

Male Con.C/2 48 THR+clip

www.ERNI.com

Class

384218

STVC/2

4,8

±0,2

0,8

±0,1

0,8

±0,1
