Plug - PP-H 2,5/1-R BU - 3210130
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

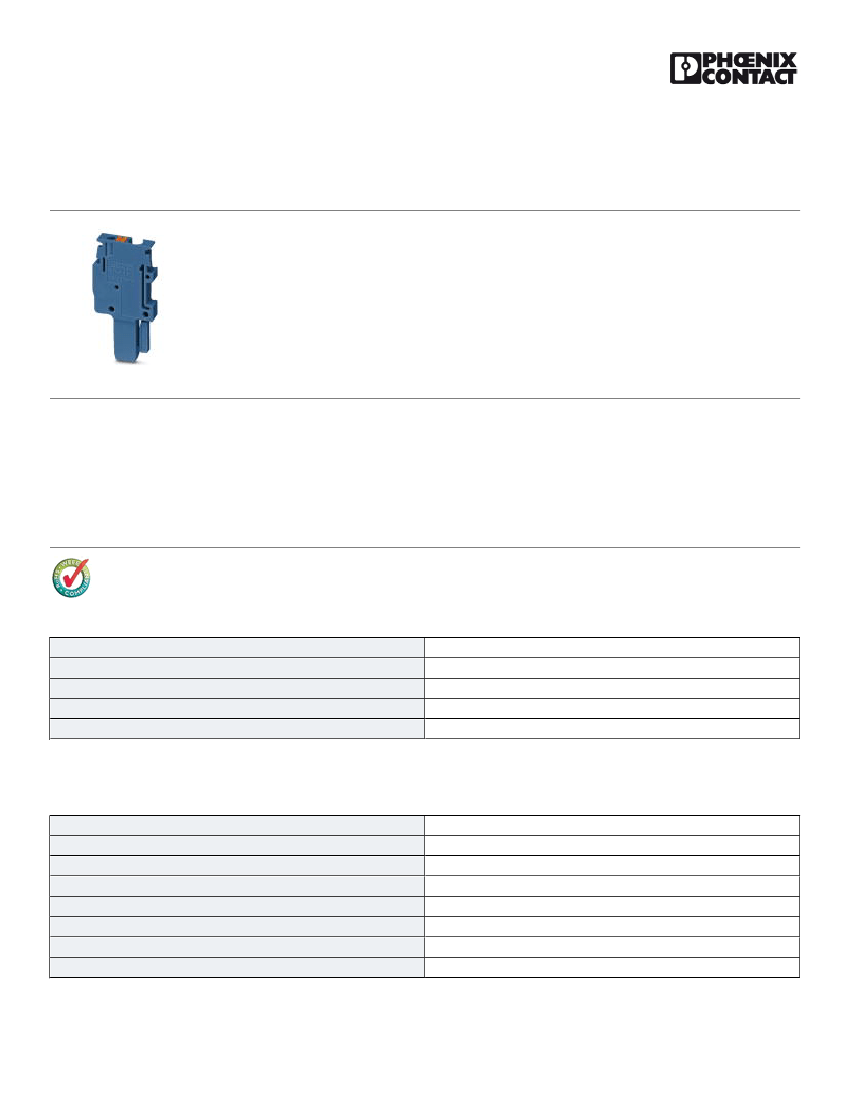

Plug, Connection method: Push-in connection, Number of positions: 1, Cross section: 0.14 mm² - 4 mm²,
AWG: 26 - 12, Width: 5.2 mm, Height: 40.2 mm, Color: blue
Image shows the version in gray
Product Description
Connector element right, left housing with engagement pin, right closed with cover
Product Features
■
■
■
Large-surface labeling option
The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
Tested for railway applications
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
50 pc
3.6 g
85366990
Poland
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Area of application
1
1
2.5 mm²
blue
PA
V0
Railway industry
Machine building
04/27/2016 Page 1 / 13
https://www.phoenixcontact.com/us/products/3210130
Plug - PP-H 2,5/1-R BU - 3210130
Technical data
General
Plant engineering
Maximum load current
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
24 A (with a 2.5 mm² conductor cross section)
6 kV
3
III
I
24 A (with 4 mm² conductor cross section)
24 A
500 V
No
Dimensions
Width
Length
Height
Pitch
5.2 mm
15.8 mm
40.2 mm
24.00 mm
5.20 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Push-in connection
IEC 61984
0.14 mm²
4 mm²
26
12
0.14 mm²
2.5 mm²
26
14
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, max.
Stripping length
Internal cylindrical gage
8 mm ... 10 mm
A3
Standards and Regulations
04/27/2016 Page 2 / 13
https://www.phoenixcontact.com/us/products/3210130
Plug - PP-H 2,5/1-R BU - 3210130
Technical data
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CSA
IEC 61984
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27260701
27141151
27141151
27141151
27141151
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC002021
EC002021
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211802
39121402
39121402
39121402
39121402
Approvals
Approvals
Approvals
CSA / RS / ABS / UL Recognized / cUL Recognized / BV / EAC / NK / EAC / cULus Recognized
Ex Approvals
04/27/2016 Page 3 / 13
https://www.phoenixcontact.com/us/products/3210130
Plug - PP-H 2,5/1-R BU - 3210130
Approvals
Approvals submitted
Approval details
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-12
20 A
300 V
C
26-12
20 A
300 V
RS
ABS
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-12
20 A
300 V
C
26-12
20 A
300 V
D
26-12
5A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-12
20 A
300 V
C
26-12
20 A
300 V
D
26-12
5A
600 V
BV
EAC
04/27/2016 Page 4 / 13
https://www.phoenixcontact.com/us/products/3210130
Plug - PP-H 2,5/1-R BU - 3210130
Approvals
NK
EAC
cULus Recognized

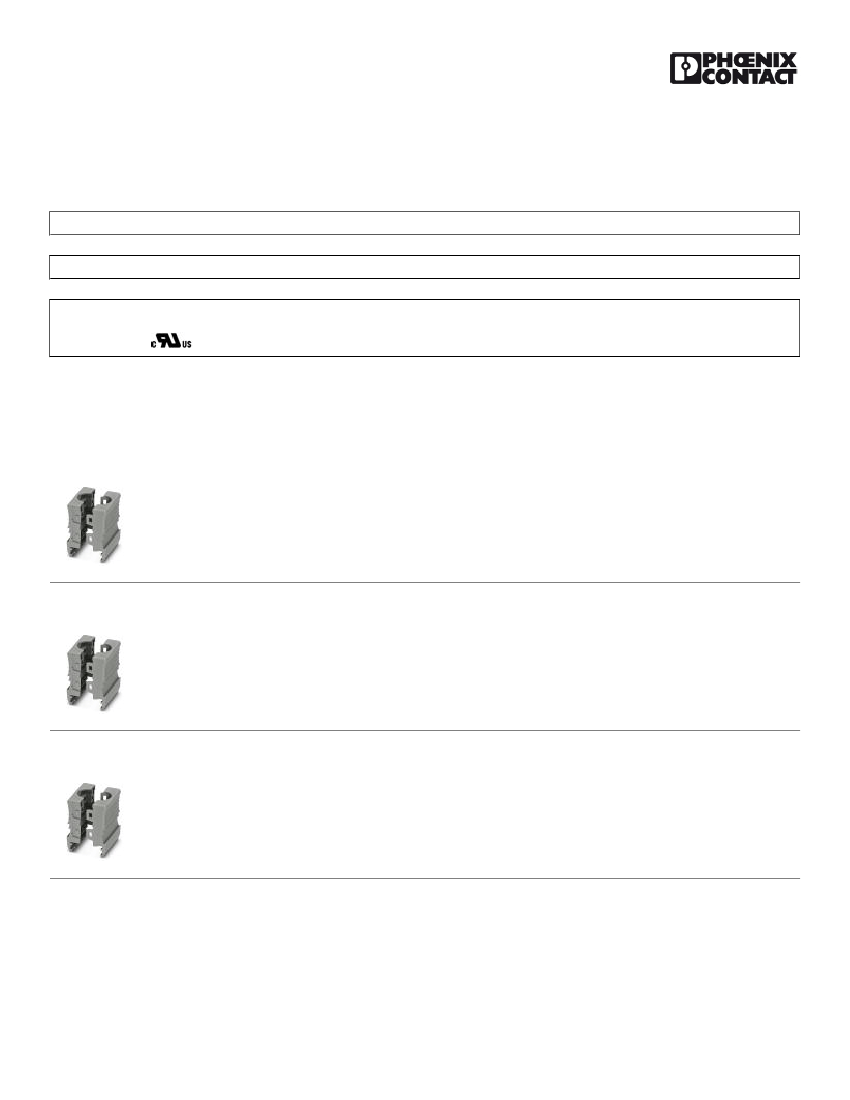

Accessories
Accessories
Cable housing
Cable housing - PH 2,5/ 2 - 3209691
Cable housing, Pitch: 10.4 mm, Length: 19.9 mm, Width: 10.4 mm, Height: 36.8 mm, Number of positions: 2, Color: gray
Cable housing - PH 2,5/ 3 - 3209701
Cable housing, Pitch: 15.6 mm, Length: 19.9 mm, Width: 15.6 mm, Height: 36.8 mm, Number of positions: 3, Color: gray
Cable housing - PH 2,5/ 4 - 3209714
Cable housing, Pitch: 20.8 mm, Length: 19.9 mm, Width: 20.8 mm, Height: 36.8 mm, Number of positions: 4, Color: gray
