503175-1400 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 503175-1400

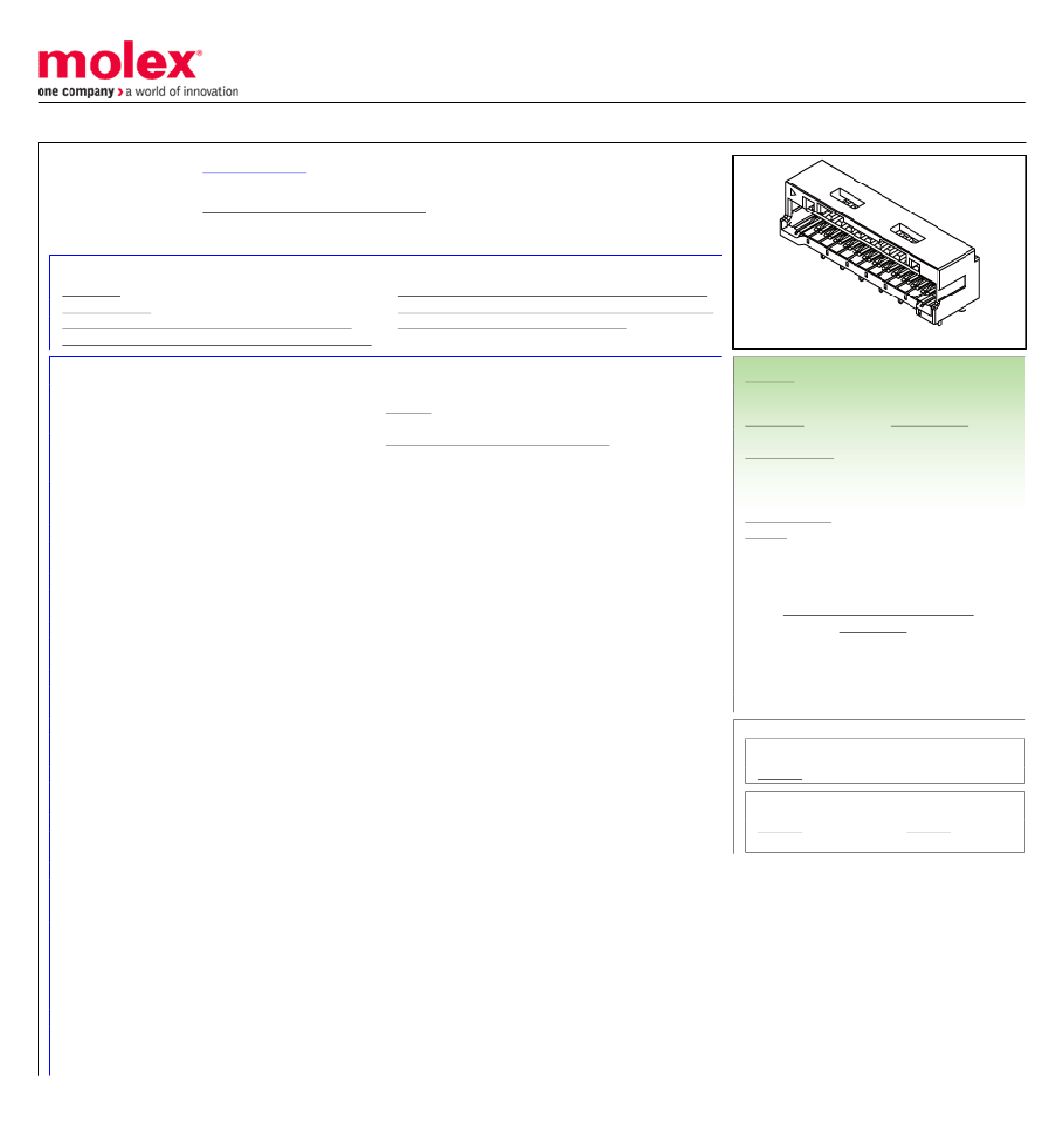

503175-1400: DescriptionHeaders & Wire Housings 1.5 W/B SGLDIPR/ARec Assy14CktW/BossBeige; CategoryThe connector The connector; File Size27KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

503175-1400 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	503175-1400	-	-	View	Buy Now

503175-1400 Overview

Headers & Wire Housings 1.5 W/B SGLDIPR/ARec Assy14CktW/BossBeige

503175-1400 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Board mount options	PEG
body width	0.274 inch
subject depth	0.285 inch
body length	0.941 inch
Body/casing type	RECEPTACLE
Connector type	DIP CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
DIN compliance	NO
Dielectric withstand voltage	700VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BEIGE
insulator material	POLYAMIDE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.059 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-85 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	3.7084 mm
Plating thickness	39u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.134 inch
Terminal pitch	1.5 mm
Termination type	SOLDER
Total number of contacts	14
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

This document was generated on 03/02/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

5031751400

Active

CLIK-Mate Wire-to-Board Connectors

1.50mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Through Hole,

Right Angle, Tin Plating, with Peg, 14 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-503175-001-001 (PDF)

Application Specification AS-502578-001-001 (PDF)

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Glow-Wire Capable

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Polarized to Mating Part

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Application Specification

Packaging Specification

Product Specification

Sales Drawing

Application Specification AS-502578-002-001 (PDF)

Packaging Specification SPK-503175-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

PCB Receptacles

503175

Signal, Wire-to-Board

CLIK-Mate Wire-to-Board Connectors

CLIK-Mate

883906058203

Beige

Yes

Copper Alloy

Tin

1188.001/mg

Right Angle

Yes

1.60mm, 2.40mm

Tray

1.50mm

Yes

-40°C to +105°C

Through Hole

2.0A

100V

Search Parts in this Series

503175 Series

Mates With

502578 Crimp Housing . 502579 Crimp

Terminal

AS-502578-001-001, AS-502578-002-001

SPK-503175-001-001

PS-503175-001-001

SD-503175-001
