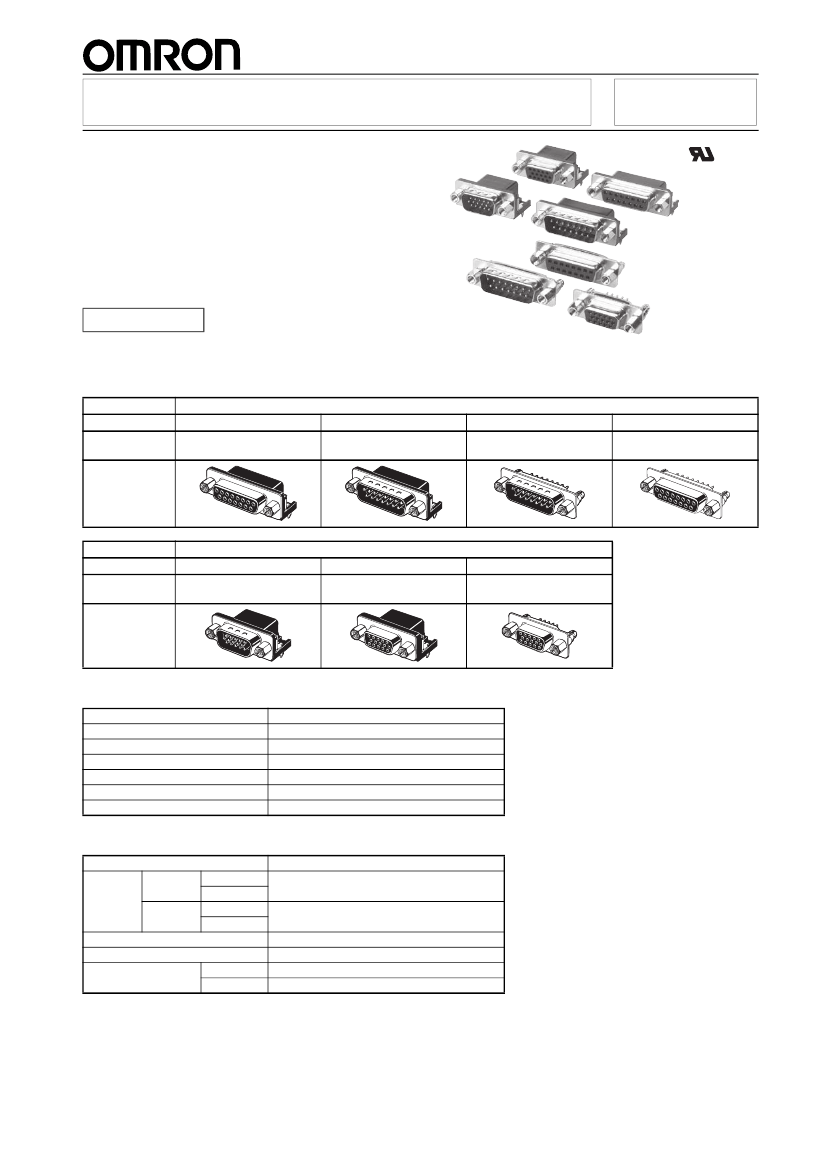

D-sub Connectors
The D-sub Connector Series Enters a
New Era with Lead-free Products.
■
Determine anchor screw diameters at a glance.
■
Greatly simplified anchor combinations.
■
Shielded against EMI.
■
The XM3-L/XM2-L/XM4K/XM4L conform to UL
XM3-L/XM2-L/
XM4K/XM4L
*
standards (No. E103202) (Some models are not
included)
RoHS Compliant
*
Some models are not included.
■
Connectors
Classification
Model
Type
Appearance
XM3B-L
Sockets with Right-angle
DIP Terminals
XM2C-L
Plugs with Right-angle
DIP Terminals
D-sub Connectors
XM2E-L
Plugs with Straight DIP
Terminals
XM2F-L
Sockets with Straight DIP
Terminals
Classification
Model
Type
Appearance
XM4K
Plugs with Right-angle
DIP Terminals
High-density D-sub Connectors
XM4L
Sockets with Right-angle
DIP Terminals
XM4L
Sockets with Straight DIP
Terminals
■
Ratings and Characteristics
Rated current
Rated voltage
Contact resistance
Insulation resistance
Dielectric strength
Insertion durability
Ambient operating temperature
3A
300 VAC
20 mΩ max. (at 20 mV, 100 mA max.)
1,000 MΩ min. (at 500 VDC)
1,000 VAC for 1 min (leakage current: 1 mA max.)
100 times
−
25 to 105°C (with no condensation or icing)
■
Materials and Finish
Housing
Contact
Socket
Plug
Shell
Anchors
Grounding Fixture
Straight
Right angle
Mating end
Terminal
Mating end
Terminal
Steel
Steel
Brass/Tin plated
Brass/Nickel plated
Brass/Nickel base, flash gold plated
PBT (UL94 V-0)/black
Phosphor bronze/nickel base, flash gold plated
1
XM3-L/XM2-L/XM4K/XM4L
D-sub Connectors
■
Ordering Information

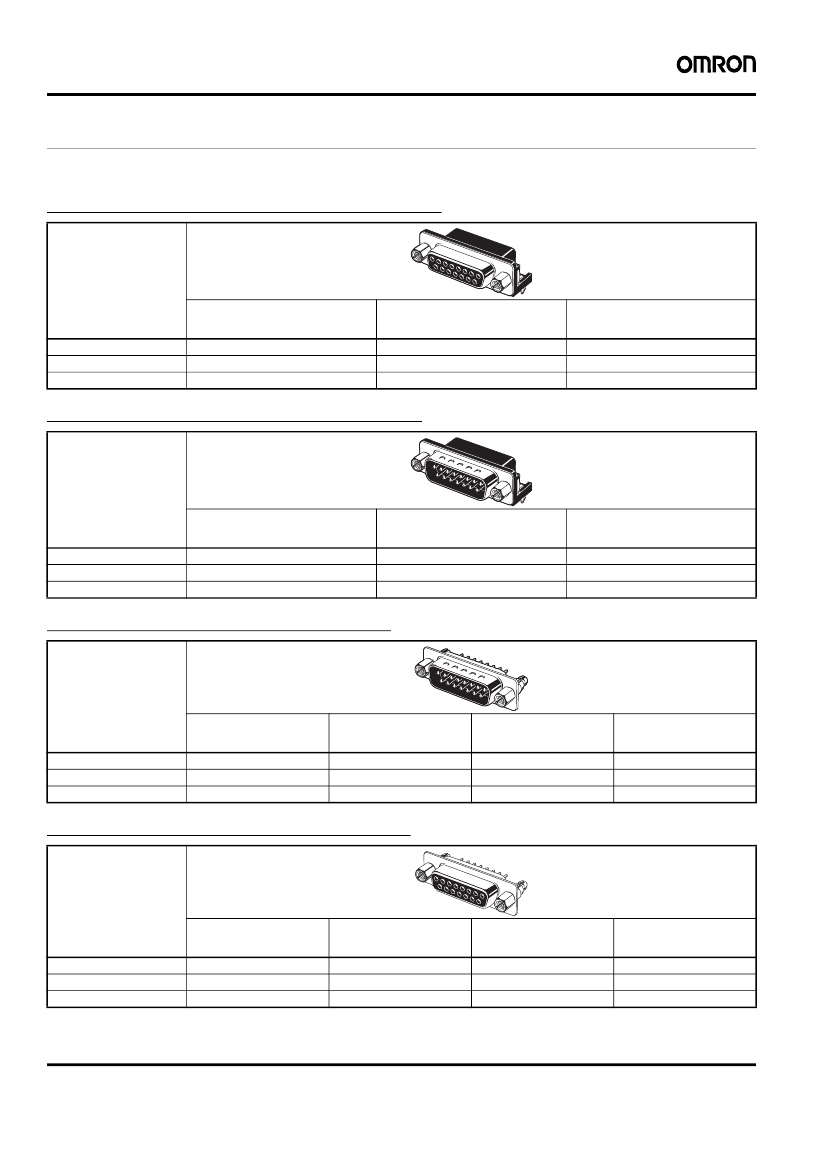

D-sub Sockets with Right-angle DIP Terminals
Appearance
Accessories
No. of contacts
9
15
25
No anchors
Anchor 2 (XM4Z-0011) M2.6
×
0.45
XM3B-0942-112L
XM3B-1542-112L
XM3B-2542-112L
Anchor 2 (XM4Z-0013) #4-40 UNC
XM3B-0942-502L
XM3B-1542-502L
XM3B-2542-502L
XM3B-0942-132L
XM3B-1542-132L
XM3B-2542-132L
D-sub Plugs with Right-angle DIP Terminals
Appearance
Accessories
No. of contacts
9
15
25
No anchors
Anchor 2 (XM4Z-0011) M2.6
×
0.45
XM2C-0942-112L
XM2C-1542-112L
XM2C-2542-112L
Anchor 2 (XM4Z-0013) #4-40 UNC
XM2C-0942-502L
XM2C-1542-502L
XM2C-2542-502L
XM2C-0942-132L
XM2C-1542-132L
XM2C-2542-132L
D-sub Plugs with Straight DIP Terminals
Appearance
Accessories
No. of contacts
9
15
25
No anchors
Without ground pins
XM2E-0940-L
XM2E-1540-L
XM2E-2540-L
No anchors
Anchor 2 (XM4Z-1011)
M2.6
×
0.45
XM2E-0940-112L
XM2E-1540-112L
XM2E-2540-112L
Anchor 2 (XM4Z-1013) #4-
40 UNC
XM2E-0940-132L
XM2E-1540-132L
XM2E-2540-132L
XM2E-0940-502L
XM2E-1540-502L
XM2E-2540-502L
D-sub Sockets with Straight DIP Terminals
Appearance
Accessories
No. of contacts
9
15
25
No anchors
Without ground pins
XM2F-0940-L
XM2F-1540-L
XM2F-2540-L
No anchors
Anchor 2 (XM4Z-1011)
M2.6
×
0.45
XM2F-0940-112L
XM2F-1540-112L
XM2F-2540-112L
Anchor 2 (XM4Z-1013) #4-
40 UNC
XM2F-0940-132L
XM2F-1540-132L
XM2F-2540-132L
XM2F-0940-502L
XM2F-1540-502L
XM2F-2540-502L
Note:
For other models with Anchors, contact your OMRON representative.
2
D-sub Connectors
XM3-L/XM2-L/XM4K/XM4L

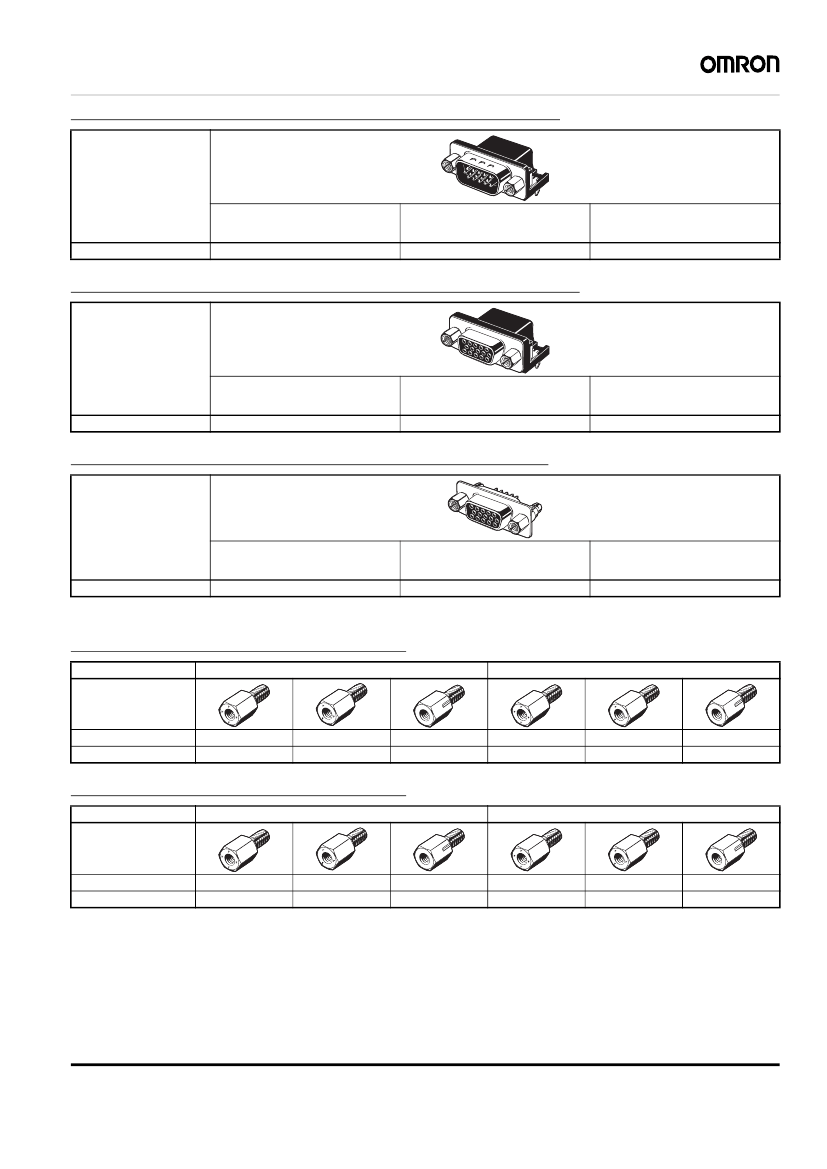

High-density D-sub Plugs with Right-angle DIP Terminals
Appearance
Accessories
No. of contacts
15
No anchors
Anchor 2 (XM4Z-0011) M2.6
×
0.45
XM4K-1542-112
Anchor 2 (XM4Z-0013) #4-40 UNC
XM4K-1542-502
XM4K-1542-132
High-density D-sub Sockets with Right-angle DIP Terminals
Appearance
Accessories
No. of contacts
15
No anchors
Anchor 2 (XM4Z-0011) M2.6
×
0.45
XM4L-1542-112
Anchor 2 (XM4Z-0013) #4-40 UNC
XM4L-1542-502
XM4L-1542-132
High-density D-sub Sockets with Straight DIP Terminals
Appearance
Accessories
No. of contacts
15
No anchors
Anchor 2 (XM4Z-1011) M2.6
×
0.45
XM4L-1541-112
Anchor 2 (XM4Z-1013) #4-40 UNC
XM4L-1541-502
XM4L-1541-132
Note:
For other models with Anchors, contact your OMRON representative.
Anchor 2 (Screw Head Length: 5.8 mm)
Type
Appearance
For right-angle DIP terminals
For straight DIP terminals
Lock screw
Model
M2.6
×
0.45
XM4Z-0011
M3
×
0.5
XM4Z-0012
#4-40 UNC
XM4Z-0013
M2.6
×
0.45
XM4Z-1011
M3
×
0.5
XM4Z-1012
#4-40 UNC
XM4Z-1013
Anchor 3 (Screw Head Length: 4.8 mm)
Type
Appearance
For right-angle DIP terminals
For straight DIP terminals
Lock screw
Model
M2.6
×
0.45
XM4Z-0021
M3
×
0.5
XM4Z-0022
#4-40 UNC
XM4Z-0023
M2.6
×
0.45
XM4Z-1021
M3
×
0.5
XM4Z-1022
#4-40 UNC
XM4Z-1023
D-sub Connectors
XM3-L/XM2-L/XM4K/XM4L
3
■
Dimensions

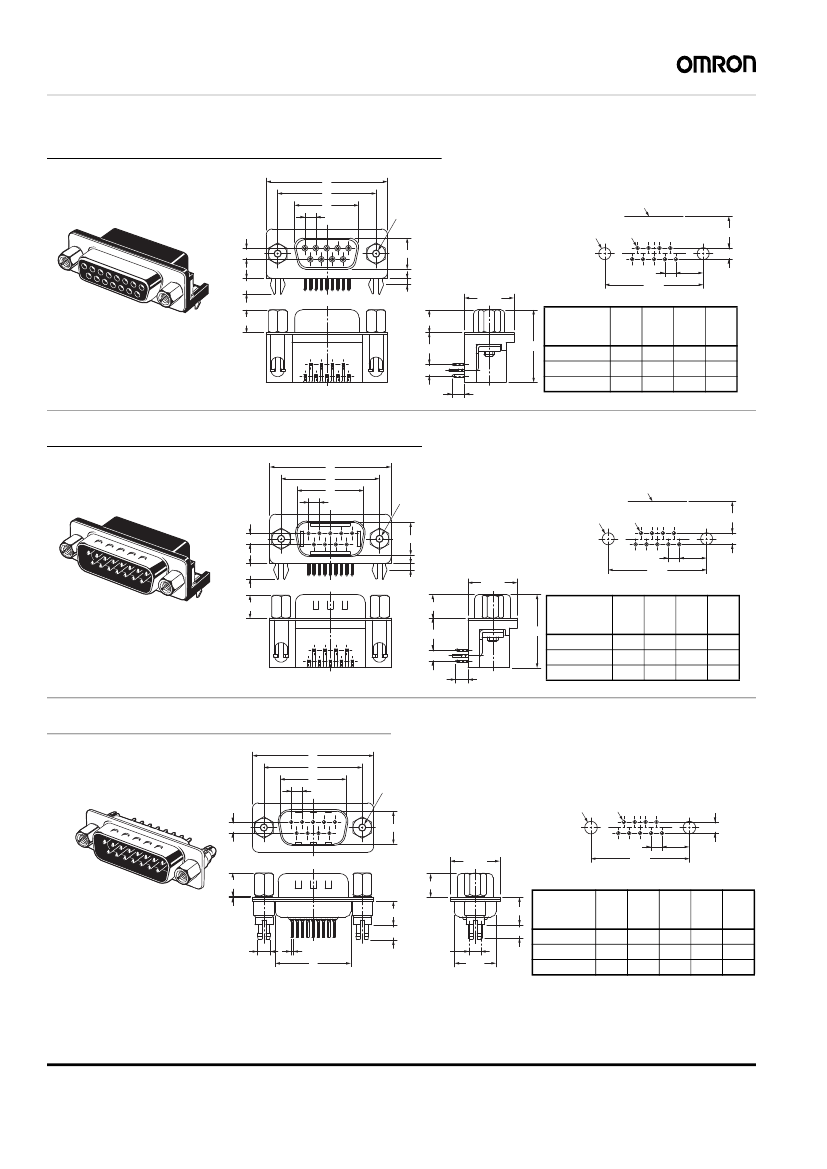

D-sub Sockets with Right-angle DIP Terminals
XM3B-0942-132L
XM3B-1542-132L
XM3B-2542-132L
A
B
C
2.77
#4-40 UNC
Two, 3.05±
0.1
dia.
2.84
7.9
2.77±
0.1
B±
0.1
N,
1±
0.1
dia.
(unit: mm)
Mounting holes (t = 1.6 mm, bottom view)
Board edge
8.1±
0.1
2.84±
0.1
D±
0.1
(3.9)
1.6
5.8
5.8
18.4
12.55
Dimensions
No. of
contacts
(N)
9
15
25
A
B
C
D
8.1
2.84
3.18
30.8
39.1
53.0
24.99 16.33 6.96
33.32 24.66 6.96
47.04 38.38 6.91
D-sub Plugs with Right-angle DIP Terminals
XM2C-0942-132L
XM2C-1542-132L
XM2C-2542-132L
A
B
C
2.77
#4-40 UNC
Two, 3.05±
0.1
dia.
2.84
8.3
2.77±
0.1
B±
0.1
1.6
5.8
6
18.6
12.55
D±
0.1
N,
1±
0.1
dia.
8.1±
0.1
2.84±
0.1
Mounting holes (t = 1.6 mm, bottom view)
Board edge
(3.9)
Dimensions
No. of
contacts
(N)
9
15
25
A
B
C
D
8.1
2.84
3.18
30.8
39.1
53.0
24.99 16.92 6.96
33.32 25.25 6.96
47.04 38.96 6.91
D-sub Plugs with Straight DIP Terminals
XM2E-0940-132L
XM2E-1540-132L
XM2E-2540-132L
A
B
C
2.77
#4-40 UNC
Mounting holes (t = 1.6 mm, bottom view)
Two, 3.2 +
0.1
dia.
N,
1±
0.1
dia.
−0
2.84
8.3
2.77±
0.1
B±
0.1
E±
0.1
2.84±
0.1
12.55
5.8
0.35
Dimensions
6
7
3.4
2.84
10.7
6.2
3.8
No. of
contacts
(N)
9
15
25
A
B
C
D
E
30.8
39.1
53.0
24.99 16.92 19.23 6.96
33.32 25.25 27.56 6.96
47.04 38.96 41.28 6.91
3.25
0.6 dia.
D
4
D-sub Connectors
XM3-L/XM2-L/XM4K/XM4L
D-sub Sockets with Straight DIP Terminals
XM2F-0940-132L
XM2F-1540-132L
XM2F-2540-132L
A
B
C
2.77
#4-40 UNC
(unit: mm)
Mounting holes (t = 1.6 mm, bottom view)
Two, 3.2 +
0.1
dia.
N,
1±
0.1
dia.
−
0
2.84
7.9
2.77±
0.1
B±
0.1
E±
0.1
2.84±
0.1
12.55
Dimensions
5.8
0.35
5.8
7
3.2
2.84
10.7
6.2
3.8
No. of
contacts
(N)
9
15
25
A
B
C
D
E
30.8
39.1
53.0
24.99 16.33 19.23 6.96
33.32 24.66 27.56 6.96
47.04 38.38 41.28 6.91
3.25
0.6 dia.
D

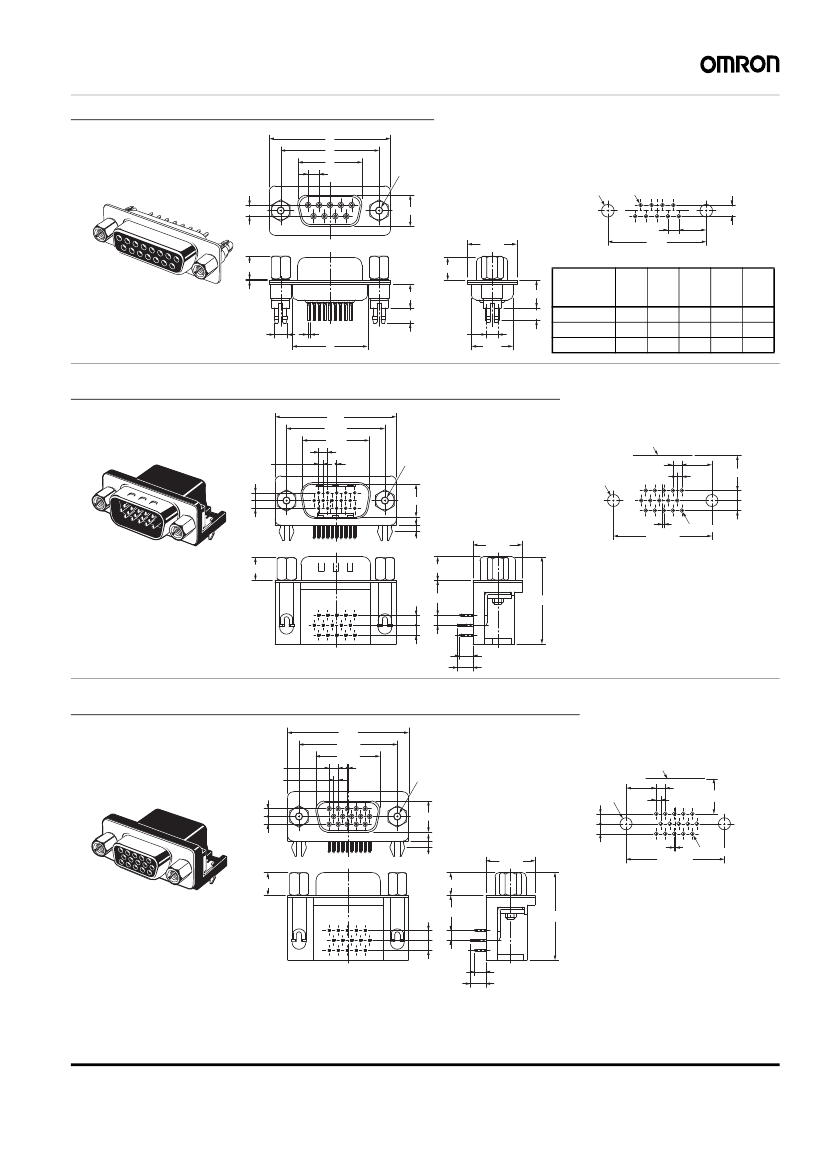

High-density D-sub Plugs with Right-angle DIP Terminals
XM4K-1542-132
30.8
24.99
16.92
1.145
1.98
1
6
11
5
10
15
Mounting holes (t = 1.6 mm, bottom view)
Board edge
#4-40 UNC
2.29±
0.1
1.145
Two, 3.05±
0.1
dia.
11
6
1
2.29
0.25
7.67±
0.1
8.89±
0.1
15
10
5
8.3
2.54±
0.1
2.54±
0.1
1.98
1.6
5.8
6
12.55
0.25
0.1
Fifteen, 1.0 +
0
dia.
−
24.99±
0.1
2.54
8.89
22.2
2.54
2.54
3.5
(3.94)
High-density D-sub Sockets with Right-angle DIP Terminals
XM4L-1542-132
2.29
1.145
1.98
5
10
15
6
11
1
30.8
24.99
16.33
0.25
#4-40 UNC
Mounting holes (t = 1.6 mm, bottom view)
Board edge
7.67±
0.1
Two, 3.05±
0.1
dia.
7.9
2.54±
0.1
2.54±
0.1
15
10
5
1.145
2.29±
0.1
8.89±
0.1
11
6
1
1.98
1.6
5.8
5.8
12.55
0.25
Fifteen, 1.0 +
0.1
dia.
−0
24.99±
0.1
2.54
8.89
22.2
2.54
2.54
3
(3.94)
D-sub Connectors
XM3-L/XM2-L/XM4K/XM4L
5
