VFHH
Leadless SMD Crystal
5.5x12mm
Features
Low profile (5.0 mm)
Excellent for Solder Reflow Applications
Wide Frequency Range Available
Cost Efficient
RoHS Status
Electrical Specifications
Parameter
Frequency
Range
Frequency
Tolerance
Frequency
Stability
Operating
Temperature
Range
Storage
Temperature
Range
Shunt
Capacitance
Drive Level
Aging Per
Year
C
O
∆F/F
Symbol
F
@ 25°C
Condition
Min
3.2
±50
±50
Typ
Max
70
Unit
MHz
ppm
ppm
See “How to
Order” chart
See “How to
Order” chart
See “How to
Order” chart
Note
T
-40°
+85°
C
-40
+85
°C
7.0
pF
100
µW
@ 25°C
±5.0
ppm
75 South Street, Hopkinton, MA 01748 • 800-982-5737 • 508-497-6377 • FAX 508-435-5289 • www.ctsvalpey.com • RevC0612
Specifications are subject to change without notice
1
VFHH
Leadless SMD Crystal
5.5x12mm
Frequency Range
Frequency Range
3.200 – 3.500
3.500 – 4.000
4.000 – 4.400
4.400 – 4.900
4.900 – 6.000
6.000 – 7.000
7.000 – 8.000
8.000 – 11.000
11.000 – 12.000
12.000 – 15.000
15.000 – 36.000
27.000 – 70.000
Mode
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
3
rd
Overtone
Max ESR (Ω)
200
140
120
100
80
60
50
45
40
35
30
100
HOW TO ORDER
VFHH
MODE
Code Specification
1
Fundamental
rd
3
3 OT
1
J
11
E
0
TR
FREQ.
Series/Parallel
Code
Specification
0
Series
ENTER VALUE OF LOAD
CAPACITOR FOR
PARALLEL CIRCUITS
Options
Code Specification
TR
Tape + Reel
Calibration Tolerance
@25°C
Code
Specification
C
15ppm
D
20ppm
E
25ppm
F
30ppm
G
35ppm
H
40ppm
I
45ppm
J
50ppm
K
100ppm
Temperature Stability
Code
Specification
5
20ppm
6
25ppm
7
30ppm
8
35ppm
9
40ppm
10
45ppm
11
50ppm
12
100ppm
Operating Temp. Range
Code
Specification
A
0C to 70C
B
-20C to 70°C
C
-40°C to 85°C
E
-10°C to 60°C
75 South Street, Hopkinton, MA 01748 • 800-982-5737 • 508-497-6377 • FAX 508-435-5289 • www.ctsvalpey.com • RevC0612
Specifications are subject to change without notice
2

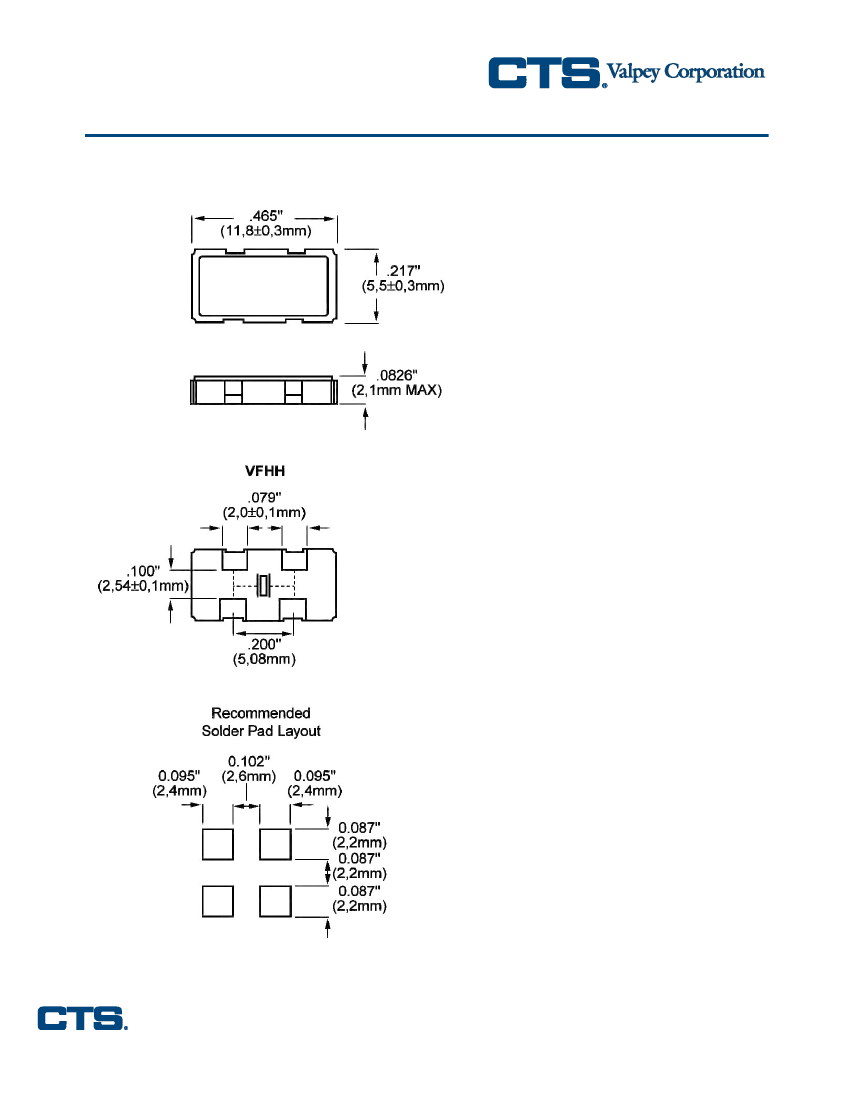

VFHH
Leadless SMD Crystal
5.5x12mm
75 South Street, Hopkinton, MA 01748 • 800-982-5737 • 508-497-6377 • FAX 508-435-5289 • www.ctsvalpey.com • RevC0612
Specifications are subject to change without notice
3
