75827-2103 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 75827-2103

75827-2103: DescriptionHigh Speed / Modular Connectors GbX 2-Pair 10-Col. L Left End BP Assembly; CategoryThe connector The connector; File Size29KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

75827-2103 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	75827-2103	-	-	View	Buy Now

75827-2103 Overview

High Speed / Modular Connectors GbX 2-Pair 10-Col. L Left End BP Assembly

75827-2103 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PANEL MOUNTABLE, DIFFERENTIAL CONTACTS, 3 ROWS OF GROUND BLADE AVAILABLE
body width	0.539 inch
subject depth	0.583 inch
body length	0.976 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	.5838 N
Insulator color	GRAY
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.073 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.85 mm
Termination type	PRESS FIT
Total number of contacts	40
UL Flammability Code	94V-0

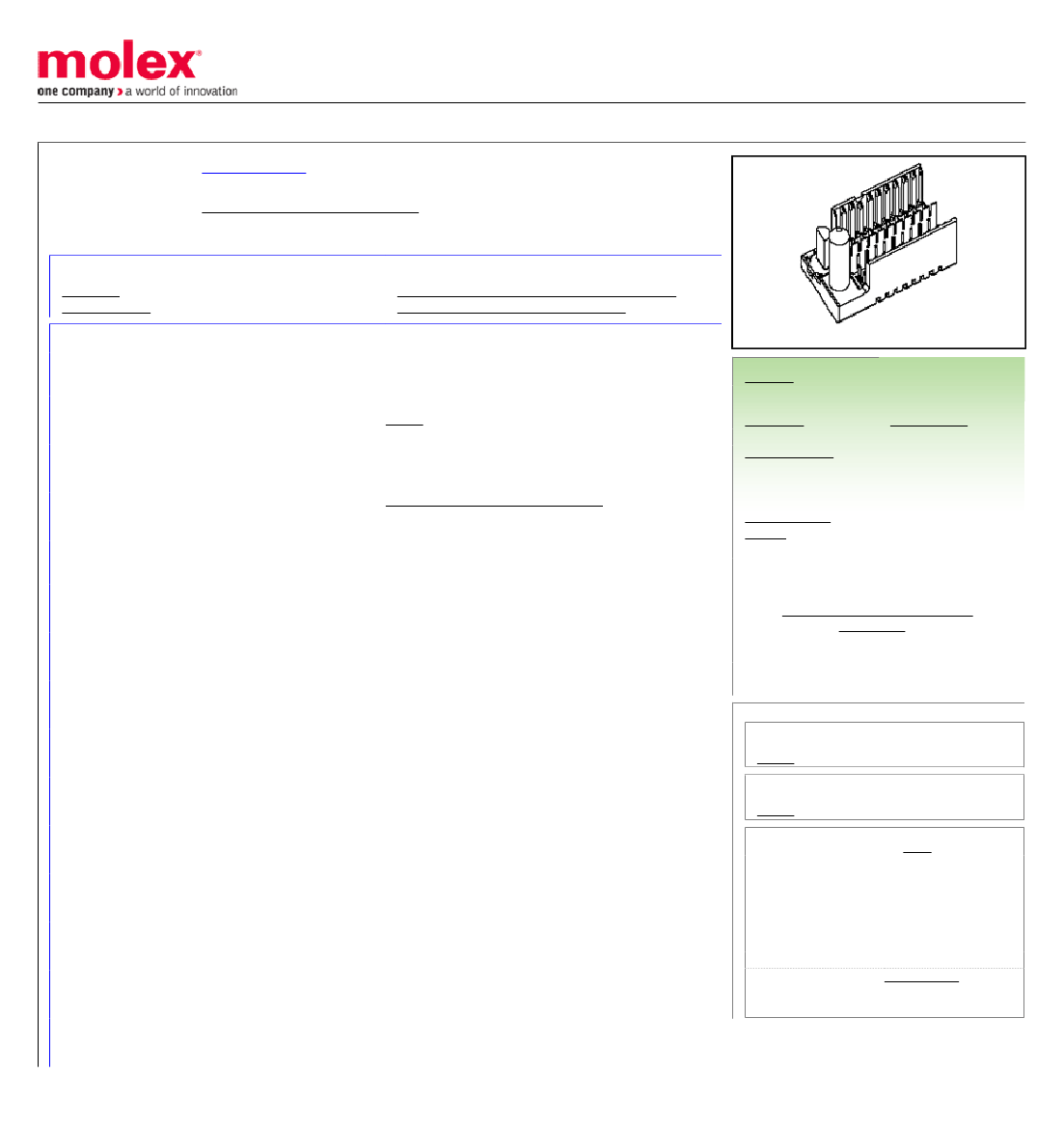

Preview

Download Datasheet

View All

This document was generated on 07/11/2016

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0758272103

Active

GbX® Backplane Connector System

2-Pair GbX® Backplane Connector System, Left Guide Header, 40 Circuits, Gold (Au)

0.76µm, Pin Length 3.55mm

Documents:

3D Model

Drawing (PDF)

Agency Certification

General

Product Family

Series

Application

Application Tooling Documents

Comments

Component Type

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Packaging Specification PK-70873-5058 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E29179

Backplane Connectors

75827

Backplane

TM-622022099

Left Guide Header, No Keying Position

PCB Header

GbX® Backplane Connector System

GbX®

822350665759

Gray (Dark)

200

94V-0

Yes

None

High Performance Alloy (HPA), Stainless Steel

Gold

Tin-Lead

High Temperature Thermoplastic

5.281/g

Vertical

2.30mm

Yes

1.60mm

Tray

1.85mm

0.762µm

Yes

105°C

Through Hole - Compliant Pin

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/21/2016 (20 June

2016)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

Green Image

Not Relevant

Search Parts in this Series

75827 Series

Mates With

75650 GbX® Daughtercard

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

GbX® 2-Pair by 10- 0622022410

Wide Differential

Insertion Tool

Recommended Resources

Differential temperature sensor

intercom circuit

Energy-saving three-phase asynchronous motor phase failure protection circuit

TV game console infrared remote control transmitter

555 relay low power consumption holding circuit

10～20MHz crystal oscillator
