023445 datasheet, PDF - EEWORLD Datasheet

023445: DescriptionBoard Euro Connector, 16 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Plug,; CategoryThe connector The connector; File Size188KB，4 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

023445 Overview

Board Euro Connector, 16 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Plug,

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARDS: DIN 41612; IEC 60603-2, TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM
body width	0.417 inch
subject depth	0.496 inch
body length	3.74 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact arrangement	S6C10
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	YES
Insulation resistance	1000000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.216 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	16
UL Flammability Code	94V-0
Base Number Matches	1

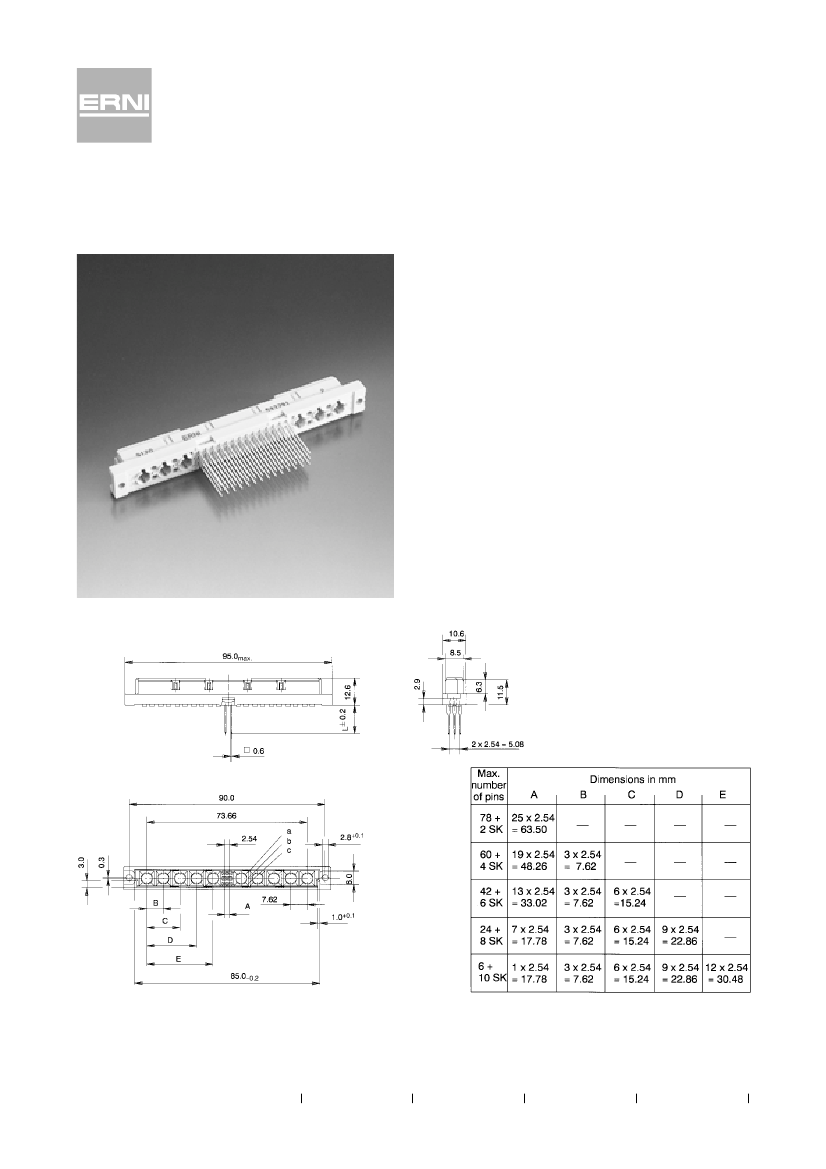

Size M

acc. to DIN 41612/IEC 60603-2

The size M connectors come with a range of 5 different

housings with a specific number of pre-loaded signal pins in

each. The balance of the connector housing would be

customer loaded with the individual M series contacts

(referred to here as SK’s); either high current contacts

(up to 40 A), coaxial contacts, and/or fiber optic contacts.

For more information refer to „Connectors Type M

DIN 41 612/IEC 60603-2“ data sheet.

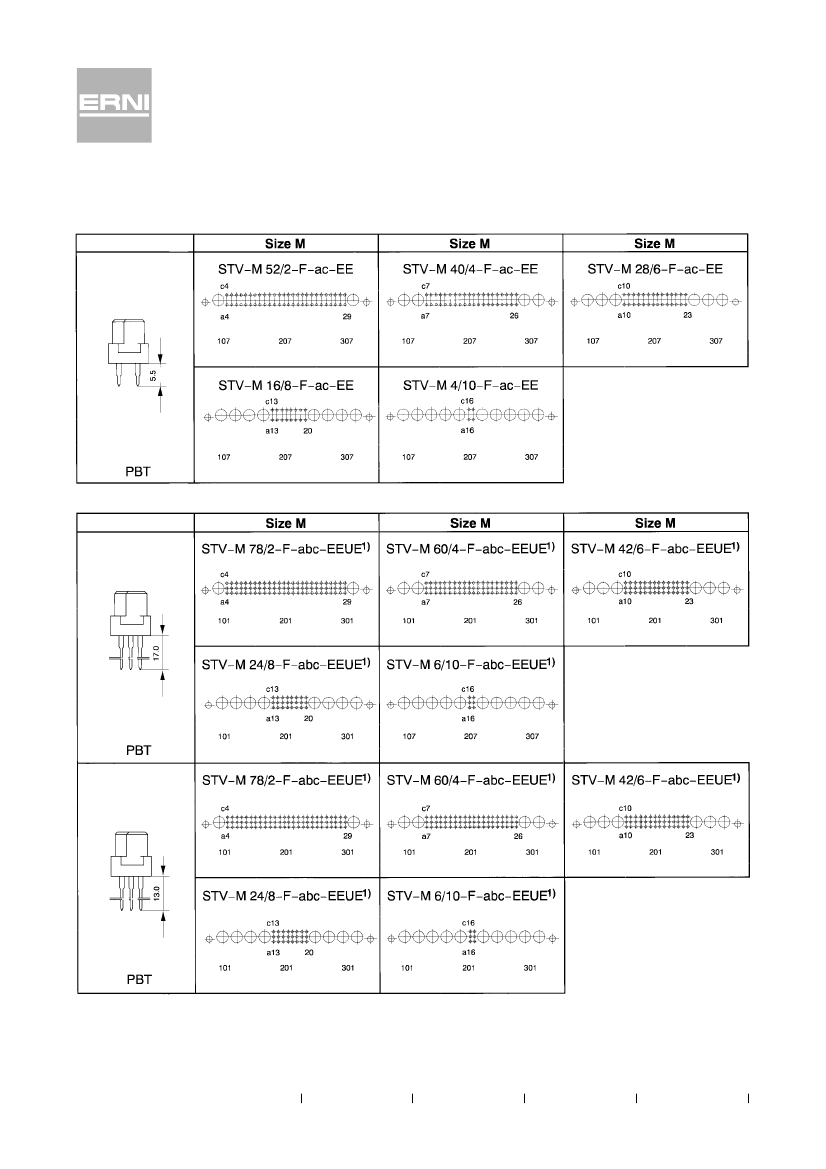

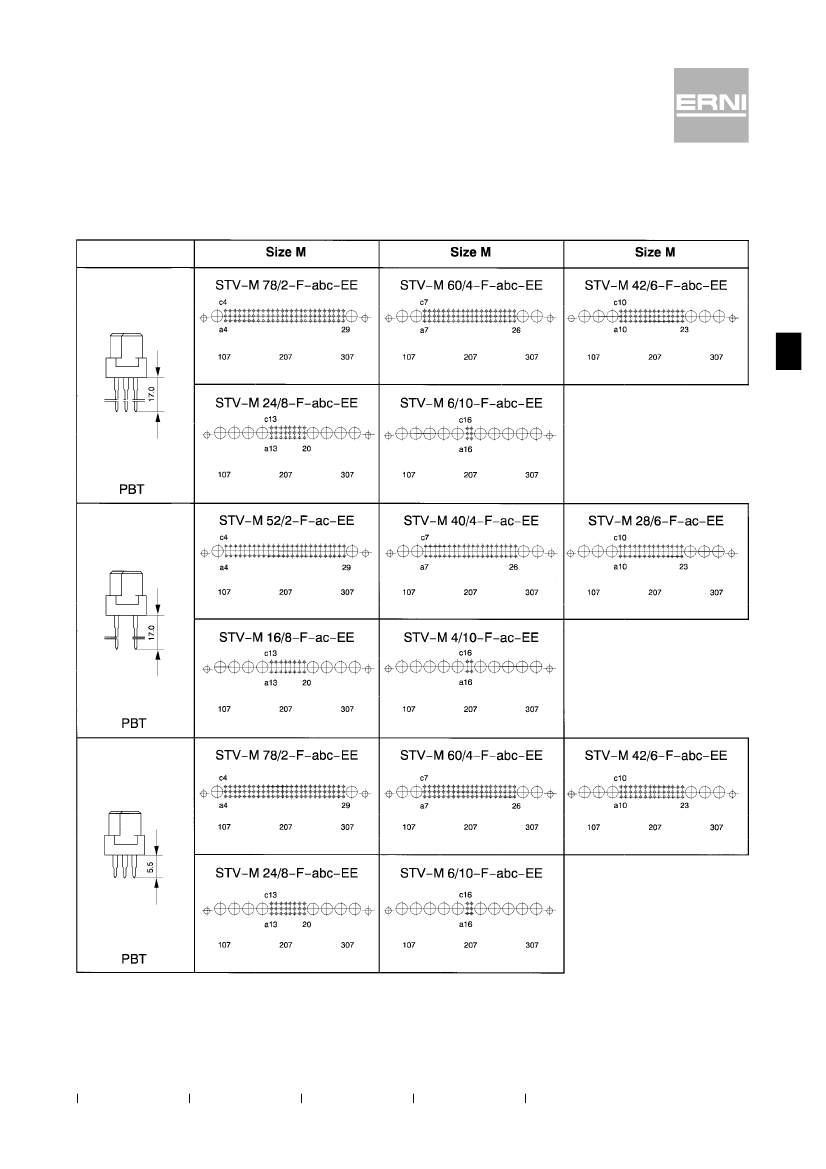

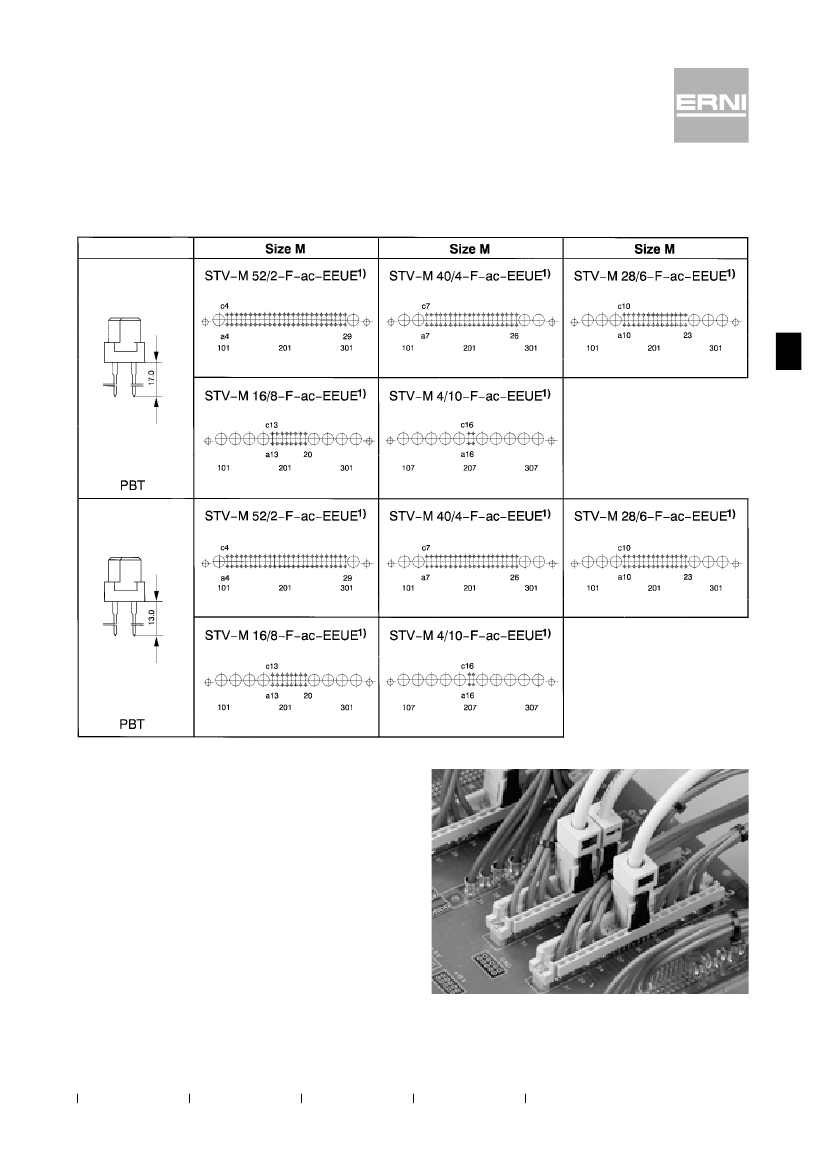

Dimensional drawings

Female connector

256

Catalog E 074484

04/04

Edition 6

www.erni.com
