The RS9113 WiSeConnect module is based on Redpine Signals RS9113 ultra-low-power, single spatial stream, dual-band 802.11n + Bluetooth (BT4.0) + ZigBee (ZB)
Convergence SoC. The RS9113 module is a complete IEEE 802.11 a/b/g/n, ZB and BT wireless device server that provides a wireless interface to any equipment with a SDIO,
UART, SPI or USB interface. The RS9113 module integrates a multi-threaded MAC processor with integrated analog peripherals and support for digital peripherals, baseband
digital signal processor, analog front-end, crystal oscillator, calibration OTP memory, dual-band RF transceiver, dual-band high-power amplifiers, baluns, diplexers, diversity
switch and Quad-SPI Flash thus providing a fully-integrated solution for embedded wireless applications and all WLAN, BT and ZB protocols and networking stack functionality
in embedded firmware to make a fully self-contained wireless solution for a variety of applications. The module integrates an antenna and a U.FL connector for external antenna
with an option to select either one of them. The M2MCombo (RS9113) chips and modules leverage and improve upon Redpine’s proven low power innovations from Lite-Fi
TM
products (RS9110) and provide WLAN 802.11n, BT4.0 and ZB convergence solution for integration into mobile and M2M communication devices.
1x1 802.11abgn + BT4.0 + ZigBee
PRODUCT BRIEF
Features and Benefits
T
RS9113 WiSeConnect module integrates WLAN, BT 4.0 and ZigBee functions.
T
WLAN: Compliant to IEEE 802.11 a/b/g/n with dual band support.
T
Bluetooth: Compliant to dual-mode Bluetooth V4.0
T
ZigBee: Compliant to IEEE 802.15.4
T
Supports both 20MHz and 40MHz bandwidth.
T
WLAN transmit power up to +18dBm and receiver with sensitivity of -97dBm.
T
T
T
T
T
T
T
T
T
T
T
Support for Bluetooth Transmit power class-1 with integrated PA and high performance
Bluetooth receiver with -94dBm Rx sensitivity.
Support for multiple ZigBee output powers up to +19dBm with integrated PA and high
perform ance ZigBee receiver with -100dBm Rx sensitivity.
U.FL connector for external antenna connection is selectable.
Dual external antenna (diversity supported).
Embedded WLAN stack, ZigBee stack, BT stack, TCP/IP stack, HTTP server.
Support for Embedded Client mode and Access Point mode.
BT profile support for GAP,SDN,PAN,SPP,IAP,HFP 1.5,GATT,ATTR,IAP,A2DP,ACRP.
†
Supports for ZigBee profiles like Home-automation and Smart Energy
Supports SPI, UART, USB, SDIO host interfaces.
Can operate with 8-bit microcontrollers with no OS.
Single supply 3.0 to 3.6 V operation.
Applications
Module without integrated antenna
Module with integrated antenna
T
Music and video players
T
Medical Devices
T
IoT Devices
T
VoWi-Fi phones
T
Smart Meters and in-home displays
T
Industrial automation and telemetry
Evaluation Package
T
Wi-Fi-BT gateway device
T
Wireless headset
T
Industrial monitoring and control
T
Home and building automation
T
Wi-Fi-ZB gateway device
The evaluation package comprises RS9113 WiSeConnect module based evaluation
board. This is accompanied by driver source code for host interface, firmware and
documentation.

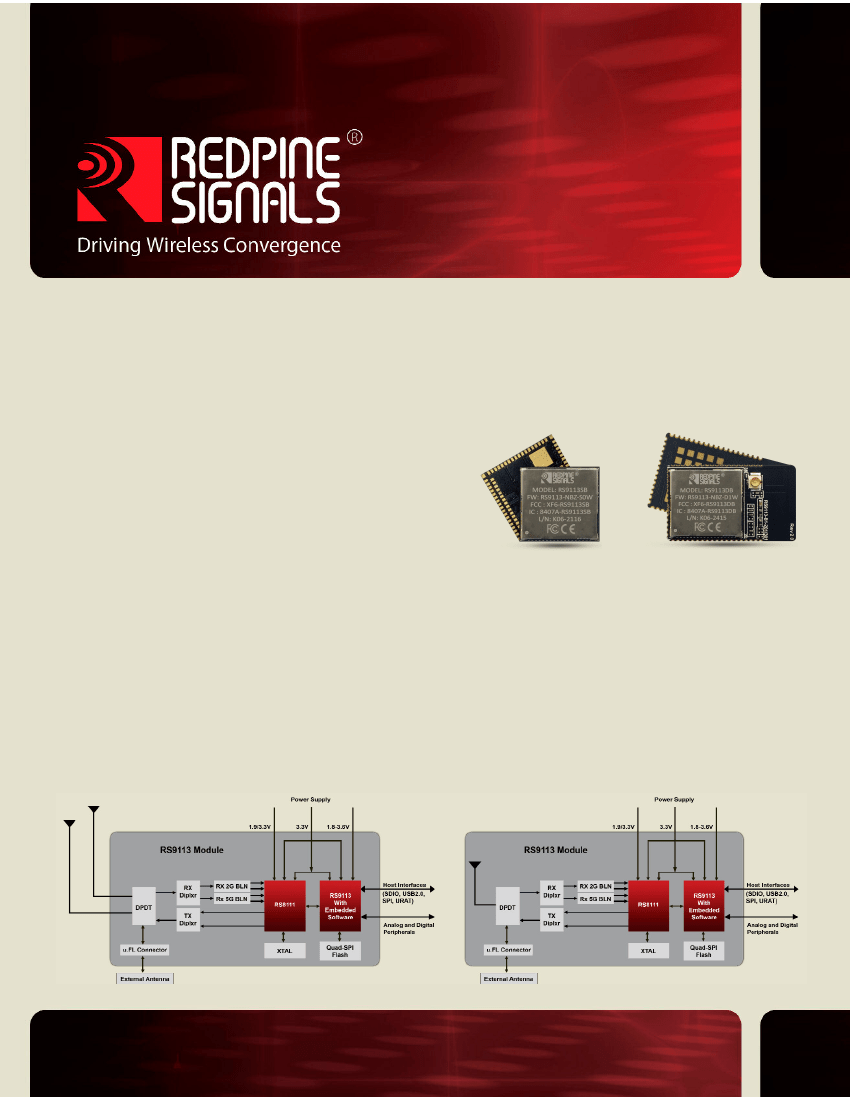

RS9113 Module Block Diagram without integrated antenna
RS9113 Module Block Diagram with integrated antenna
R S 9 1 1 3
RS9113 WiSeConnect
®
Module Family
Wireless Specifications
Network Standard Support
Data Rates
Modulation Techniques
802.11n: from 6.5 Mbps to 150 Mbps (MCS 0-7)
802.11a/g: from 6 Mbps to 54 Mbps
802.11b: from 1 Mbps to 11 Mbps
Bluetooth: 1, 2, 3Mbps
802.15.4-2009: 250Kbps
OFDM with BPSK, QPSK, 16-QAM, 64-QAM
802.11b with CCK and DSSS
Bluetooth: GFSK, DQPSK, 8DPSK
802.15.4-2009: DSSS
IEEE 802.11 a/b/g/n, 802.11j
†
, 802.11d/e/i, 802.11w
†
, 802.1X, 802.11k
†
,
802.11v
†
, 802.11r
†
, 802.11h
†
Bluetooth v2.1 EDR, v4.0
802.15.4-2009 (2.4GHz)

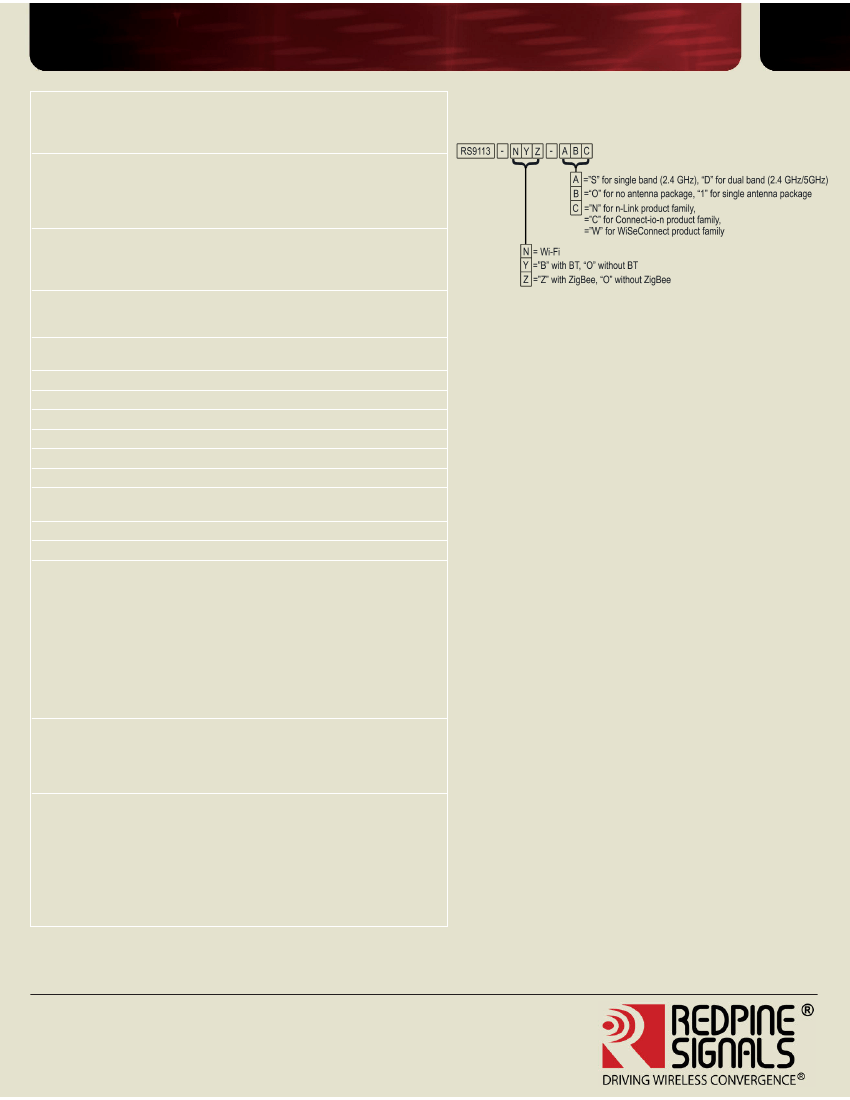

Device Ordering Information
The device numbering is based on the following naming convention. All the devices are labeled as
RS9113-XYZ-ABC Where,
802.11n Advanced Features
Bluetooth Advanced Features
†
ZigBee Advanced Features
Wi-Fi modes
Bluetooth Modes
ZigBee Modes
QoS
1-SS, 40MHz bandwidth, Greenfield Preamble, Short-GI, 1 spatial stream
STBC, RIFS, A-MSDU, A-MPDU, Aggregation with Block-ack, A-MSDU
inside A-MPDU and Virtual AP support
Scatternet, Adaptive Frequency Hopping, Interlaced scanning,
15 active slaves in proprietary mode, hold, sniff and park modes
CCM* security, orphan scanning, coordinator realignment
Wi-Fi client, Access point, Wi-Fi Direct
Master, slave, scatternet
†
Examples:
T
T
T
ZigBee Coordinator
†
, Router
†
, End device
WMM and WMM Power Save Support
USB 2.0, SPI, UART
Module Reference Design
RS9113-NBZ-S0N will refer to single band n-Link module with no antenna and integrated Wi-Fi,
Bluetooth and Zigbee.
RS9113-N00-D1C will refer to a dual band Connect-io-n module with embedded single antenna and
integrated Wi-Fi.
RS9113-NB0-S0W will refer to a single band WiSeConnect module with no antenna and integrated
Wi-Fi and Bluetooth.
Host Interfaces
Redpine offers form-factor SPI, USB2.0, UART and SDIO reference designs along with software for
manufacture testing and diagnostics. For details on availability please contact sales
Other Peripherals/Interfaces
Supply Voltage
I2C, I2S, SPI, QSPI, USART, GPIO, JTAG, Analog(ADC/DAC) and
Ultra-low-power peripherals.
Industrial Grade -40ºC to +85ºC
3.0-3.6V, 1.8-3.6V
Operating Temperature
Software and Regulatory Certification
Typical Transmit
Power(+/-2 dBm)
Wi-Fi Alliance Compliance (802.11bgn, WPA, WPA2 Personal and
Enterprise, WMM, WMM-PS, WPS, Wi-Fi Direct™, Voice-Personal
β
,
Protected management frames
†
),
Cisco CCX v5
†
,
Bluetooth-SIG Qualification
‡
,
Worldwide Regulatory Compliance:
FCC (IDs are XF6-RS9113SB, XF6-RS9113DB)
IC (IDs are 8407A-RS9113SB, 8407A-RS9113DB)
CE/ETSI,
TELEC
‡
,
SRRC
‡
Wi-Fi:
17.5 dBm for 802.11b DSSS
17.5 dBm for 802.11g/n OFDM
12 dBm for 802.11a/g/n OFDM
15 dBm
15 dBm
Rx sensitivity
(+/- 1dBm)
Wi-Fi:
Bluetooth:
ZigBee :
Bluetooth:
ZigBee:
1Mbps
54 Mbps
MCS7(20MHz)
MCS7(40MHz)
1 Mbps
2 Mbps
3 Mbps
BTLE(1Mbps)
250 Kbps
-97 dBm (< 8% PER)
-76.5 dBm (< 10% PER)
-73 dBm (< 10% PER)
-69.5 dBm (< 10% PER)
-94 dBm
-92 dBm
-84 dBm
-91 dBm
-102 dBm (< 8% PER)
For additional information, please contact Sales at Redpine Signals, Inc.:
†:
These features may not be supported by current software releases. Contact Repine Signals Sales (sales@redpinesignals.com) for details.
‡:
These certifications are in progress at this time. Contact Redpine Signals Sales (sales@redpinesignals.com) for more details and for certifications not listed here.
β:
Applicable to n-Link
®
modules only
Phone: +1 408 748 3385 • Email: sales@redpinesignals.com • Website: www.redpinesignals.com
Redpine Signals, Inc. • 2107 North First Street • Suite 540 • San Jose, CA 95131
Redpine Signals, Inc. reserves the right to make changes to the product(s) or information contained herein without notice. No Liability is assumed as a
result of their use or application.Redpine, Redpine Signals, the Redpine logo, Driving Wireless Convergence, WiSeConnect and Lite-Fi are trademarks of
Redpine Signals,Inc. All other company names, products and logos are registered trademarks of their respective companies.
© Copyright 2016 Redpine Signals, Inc. All Rights Reserved.
