LCMB95-10-X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> LCMB95-10-X

LCMB95-10-X: DescriptionTerminals Copp Comp Lug 1H Long Bar; CategoryThe connector terminals; File Size237KB，1 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com; Environmental Compliance

Download Datasheet Parametric View All

LCMB95-10-X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LCMB95-10-X	-	-	View	Buy Now

LCMB95-10-X Overview

Terminals Copp Comp Lug 1H Long Bar

LCMB95-10-X Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Base Number Matches	1

Preview

Download Datasheet

View All

THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.

* cULus LISTED WIRE CONNECTOR

NOTES:

1. Material: High conductivity seamless copper tube.

2. Plating: Parts are annealed and tin plated.

LCMB 50-12

50r/35f

3. Wire Type: Class 2r, 5f & 6f Stranded Copper per DIN VDE 0295, IEC 60228 and HD 383.

4. UL Listed Wire Connector: Yes, for applications up to 35kv.

Consult cable manufacturer for voltage stress relief instructions

with applications greater than 2000 volts.

5. UL Temperature Rating: 90 C

LISTED

Wire Connector

LISTED

Wire Connector

CERTIFIED

m (ref)

(internal)

No Inspection

Window

6. C.S.A. Certified Wire Connector: Yes

7. Parts are CE and tested per EN 61238-1:2003/IEC 61238-1:2003 Class B, with Class 2r wire 35mm² - 150mm².

TITLE

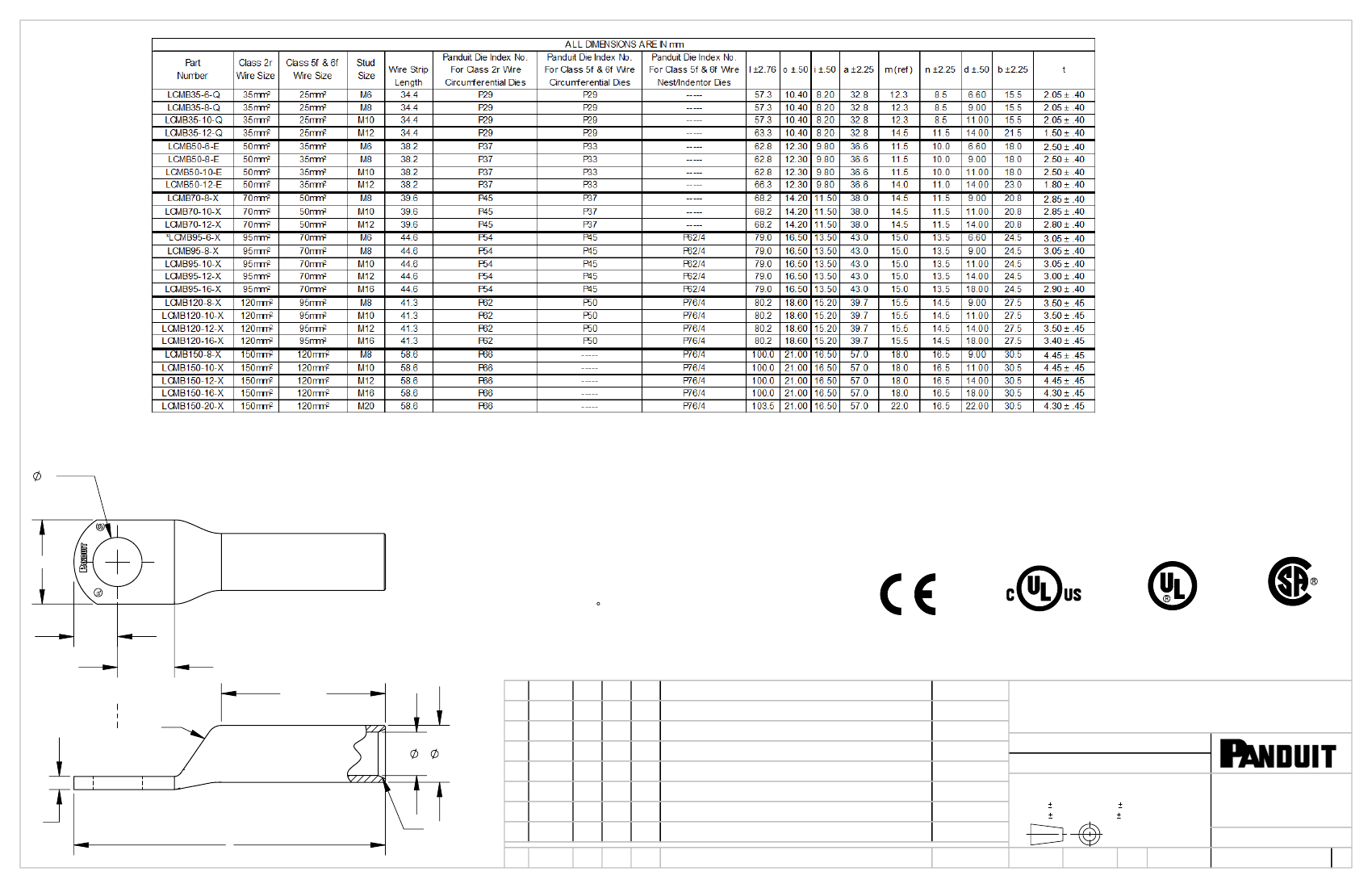

METRIC LUGS - LCMB ONE HOLE SERIES 35-150mm

LONG BARREL

CUSTOMER DRAWING

12J036BI/01

12J036BI-JC/01.SLDDRW

MATERIAL

ITEM REVISION NAME

DATASET FILE NAME

7/15

7/13

JHNU TLCO RGB ADDED LCMB95-6-X

JHNU TLCO RGB

DRAWING RELEASED

12J036BI-JC

UNLESS OTHERWISE SPECIFIED,

DIMENSIONAL TOLERANCES ARE: IN [mm]

.XXX

.XX

ANGLES

THIRD ANGLE

PROJECTION

DRAWN BY

SEE NOTES

DRAWING NUMBER

Beveled wire

entry

12J036BI-JC

SIZE

REV

DATE

CHK APR

DESCRIPTION

ECN

JHNU

DATE

7/13 TLCO

CHK

SCALE

NONE

SHEET 1 0F 1
