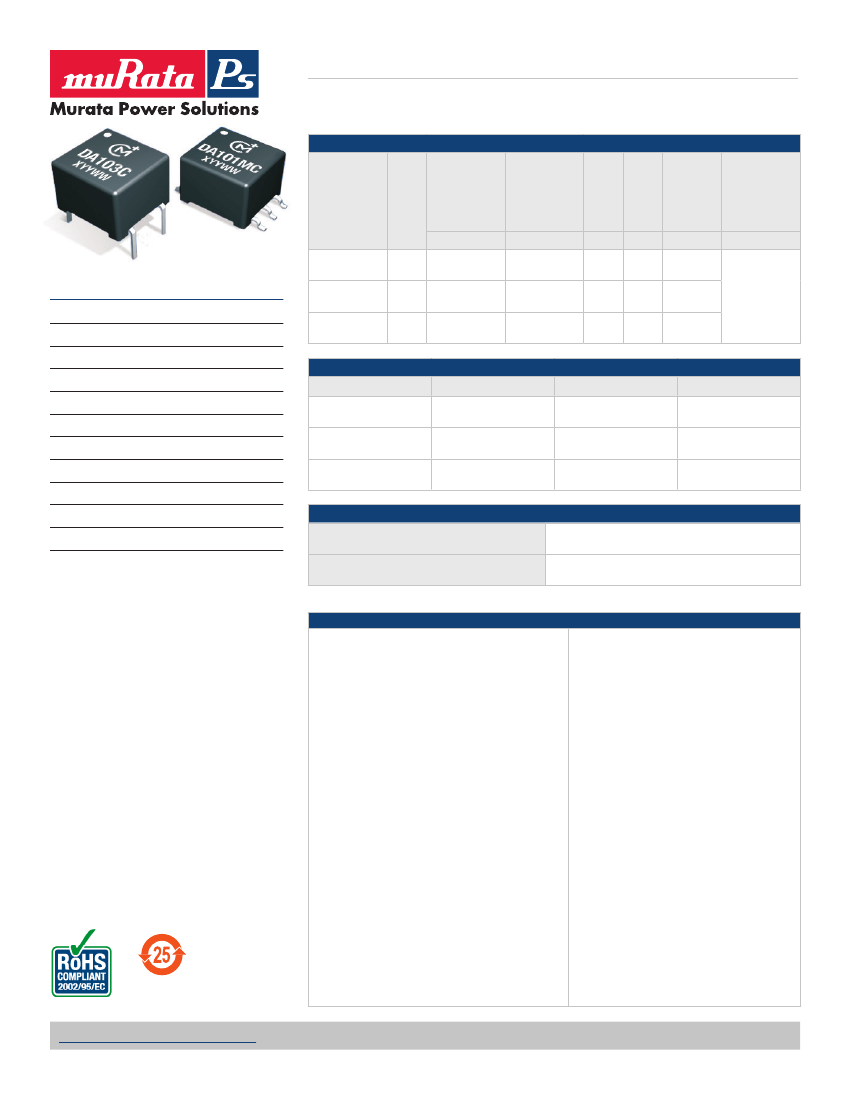

DA100 Series
Transformers for Digital Audio Data Transmission
SELECTION GUIDE
Min. Return Loss
(100kHz-3MHz)
Turns Ratio
Primary
Inductance
Max.
Leakage
Inductance
(100kHz, 10mV)
μH
0.26
0.39
0.91
Typ. Common
Mode Rejection
(100kHz, 110Ω)
dB
52.10
49.70
46.40
2000
Min. Volt-time
Product, Et
Isolation
(Flash tested
for 1 second)
Vrms
Order Code
mH
DA101C
1:1
1:1
1:1
1.00 - 2.06
2.00 - 3.90
4.00 - 7.75
Vμs
15
20
28
dB
46.80
40.40
36.30
FEATURES
n
RoHS compliant
n
Compatible with leading chip sets
n
2kVrms isolation
n
Industry-standard pinout
n
Surface mount option
n
UL 94 V-0 package materials
n
Low profile
n
Suitable for both 75 & 110Ω circuits
n
Toroidal construction
n
Compliant with AES/EBU standards
n
Fully encapsulated
DA102C
DA103C
ORDER CODE DETAILS
Order Code
DAXXXC
DAXXXMC
DAXXXMC-R
Package Type
6 Pin DIL
6 Pin SM
6 Pin SM
Packaging Type
Tube
Tube
Tape & Reel
Quantity
50
50
500
ABSOLUTE MAXIMUM RATINGS
Operating free air temperature range
Storage temperature range
All specifications typical at T
A
=25°C
0°C to 70°C
–40°C to 125°C
DESCRIPTION
The Digital Audio Range of transformers is
designed to improve the balance of transmitter
and receiver circuitry in hi-fi equipment,
video games and other applications requiring
high-performance digital audio transmission.
Compliant with AES/EBU recommendations for the
digital audio interface, offering optimised shunt
capacitance between primary and secondary
windings. Capable of operating over the audio
data rate frequency range, providing isolation from
50-60Hz noise.
TECHNICAL NOTES
ISOLATION
VOLTAGE
‘Hi Pot Test’, ‘Flash Tested’, ‘Withstand Voltage’, ‘Proof Volt-
age’, ‘Dielectric Withstand Voltage’ & ‘Isolation Test Voltage’
are all terms that relate to the same thing, a test voltage,
applied for a specified time, across a component designed
to provide electrical isolation, to verify the integrity of that
isolation.
All products in this series are 100% production tested at
their stated isolation voltage.
A question commonly asked is, “What is the continuous
voltage that can be applied across the part in normal opera-
tion?”
For a part holding no specific agency approvals both input
and output should normally be maintained within SELV limits
i.e. less than 42.4V peak, or 60VDC. The isolation test volt-
age represents a measure of immunity to transient voltages
and the part should never be used as an element of a safety
isolation system. The part could be expected to function cor-
rectly with several hundred volts offset applied continuously
across the isolation barrier; but then the circuitry on both
sides of the barrier must be regarded as operating at an
unsafe voltage and further isolation/insulation systems must
form a barrier between these circuits and any user-acces-
sible circuitry according to safety standard requirements.
REPEATED HIGH-VOLTAGE ISOLATION TESTING
It is well known that repeated high-voltage isolation
testing of a barrier component can actually degrade
isolation capability, to a lesser or greater degree
depending on materials, construction and environ-
ment. This series has toroidal isolation transformers,
with no additional insulation between primary and
secondary windings of enameled wire. While parts
can be expected to withstand several times the
stated test voltage, the isolation capability does de-
pend on the wire insulation. Any material, including
this enamel (typically polyurethane) is susceptible
to eventual chemical degradation when subject to
very high applied voltages thus implying that the
number of tests should be strictly limited. We there-
fore strongly advise against repeated high voltage
isolation testing, but if it is absolutely required, that
the voltage be reduced by 20% from specified test
voltage.
This consideration equally applies to agency recog-
nized parts rated for better than functional isolation
where the wire enamel insulation is always supple-
mented by a further insulation system of physical
spacing or barriers.
Surface-mount parts
The surface-mount (M suffix) products are not
recommended for new designs. For existing designs,
however, Murata Power Solutions will continue to
manufacture and fully support these parts.
For recommended alternatives please refer to the
DA100J Series datasheet.
For full details go to
www.cd4power.com/rohs
www.murata-ps.com/rohs
For full details go to
www.murata-ps.com/support
KMP_DA100C_C08
Page 1 of 3
DA100 Series
Transformers for Digital Audio Data Transmission
PACKAGE SPECIFICATIONS

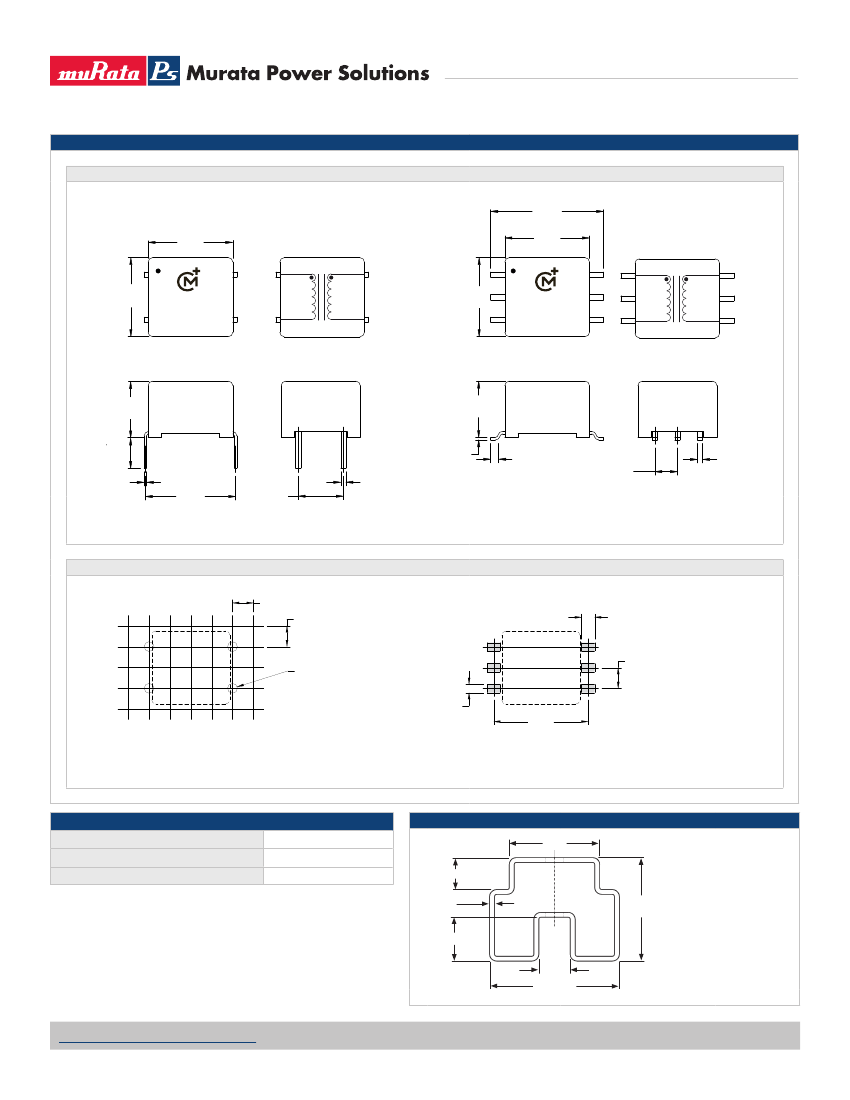

MECHANICAL DIMENSIONS
6 Pin DIL
6 Pin SM
0.50
(12.70)
0.375
(9.52) Max.
1
0.354
(9.0) Max.
Top View
6
1
3
1
4
0.354
(9.0) Max.
0.375
(9.52) Max.
1
Top View
6
1
1
5
4
DA101C
XYYWW
DA103MC
XYYWW
2
3
0.25
(6.35)
0.135±0.02
(3.44±0.50)
0.012 (0.30)
0.008 (0.20)
0.20
(5.08)
0.025 (0.63)
0.021 (0.53)
0.25
(6.35)
0.012 (0.30)
0.008 (0.20)
0.40
(10.16)
0.04
(0.90)
0.10
(2.54)
0.025 (0.63)
0.021 (0.53)
Unless otherwise stated all dimensions in inches (mm) ±0.01 (0.25).
All pins on a 0.1 (2.54) pitch and within ±0.01 (0.25) of true position.
Package Weight 0.93g Typ.
RECOMMENDED FOOTPRINT DETAILS
6 Pin DIL
0.10 (2.54) 0.10 (2.54)
0.10 (2.54) 0.10 (2.54)
0.06 (1.60) 0.06 (1.60)
6 Pin SM
Ø0.05 (1.20) +0.006(1.20) +0.006 (0.15)
Ø0.05 (0.15)
-0.000 (0.00) -0.000 (0.00)
0.04
(1.00)
0.04
(1.00)
0.10 (2.54) 0.10 (2.54)
0.45
(11.50)
0.45
(11.50)
Unless otherwise stated all dimensions in inches (mm)
±0.01 (0.25). All pins on a 0.1 (2.54) pitch and within
±0.01 (0.25) of true position.
SOLDERING INFORMATION
1
Pin finish
Peak wave solder temperature
Peak reflow temperature
Matte tin
300˚C for 10 seconds
220˚C
2
TUBE OUTLINE DIMENSIONS
0.43
(10.95)
0.16 (4.00)
0.023±0.005
(0.60±0.15)
0.22 (5.50)
0.15
(3.80)
0.62 (15.70)
0.51
(12.95)
Unless otherwise stated all
dimensions in inches (mm)
±0.01 (0.25).
Tube length: 18.3±0.08
(465±2).
Tube material: Antistatic coated
clear pvc.
1 For further information, please visit www.murata-ps.com/rohs
2 For high temperature reflow parts see DA100J series datasheet.
www.murata-ps.com/support
KMP_DA100C_C08
Page 2 of 3
DA100 Series
Transformers for Digital Audio Data Transmission

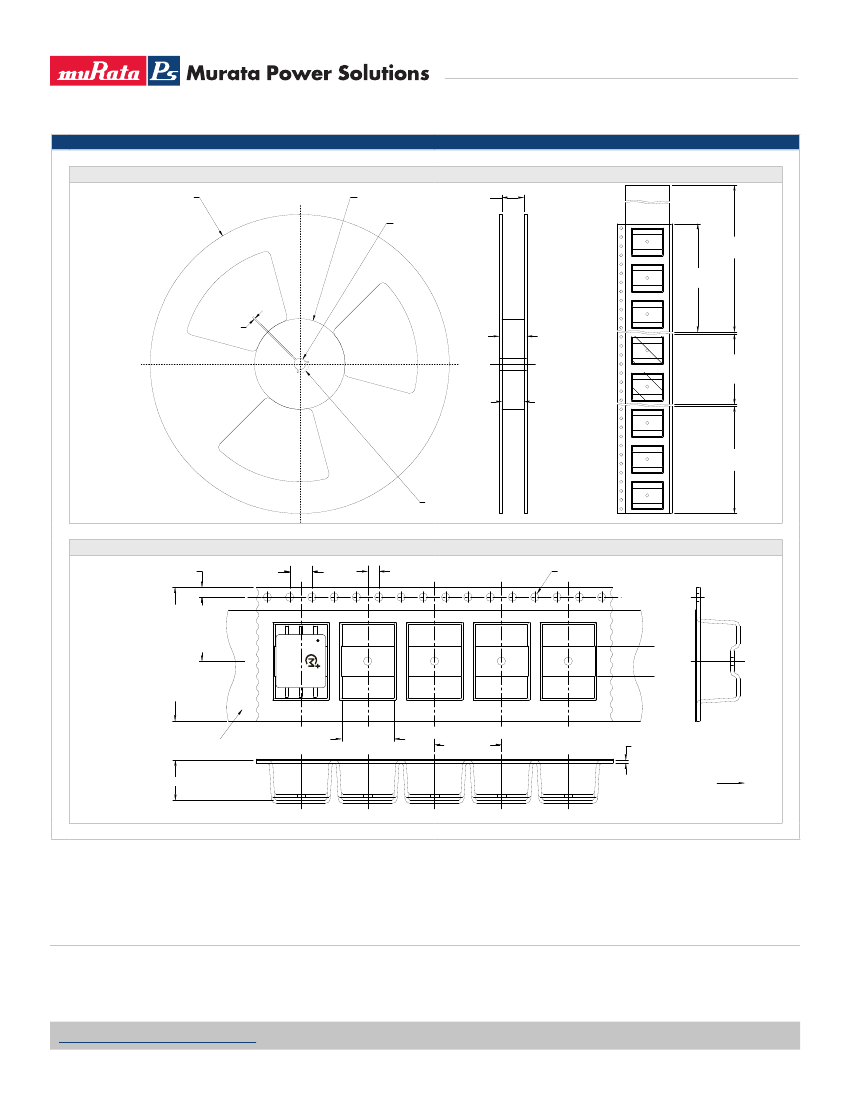

TAPE & REEL SPECIFICATIONS
REEL OUTLINE DIMENSIONS
Ø15.039 (382) Max.
2.36 (60) Min.
0.94-1.08 (23.9-27.4)
*
Ø 0.53 (13.50)
0.50 (12.80)
Leader section
15.7 (400) Min.
3.9 (100)
Min.
0.059 (1.50)
Min.
1.20
(30.4) Max.
Goods
enclosure
section
0.96 (24.4)
1.04 (26.4)
Trailer section
6.3 (160) Min.
Unless otherwise stated all
dimensions in inches (mm) ±0.01(0.25).
* Includes flange distortion at outer edge.
Measured at hub.
Ø 0.80 (20.20) Min.
TAPE OUTLINE DIMENSIONS
0.069 (1.75)
0.157 (4.00)
0.079 (2.00)
+0.004
+0.10
0.059 -0.000 (1.50 -0.00 )
+0.30
0.945
+0.012
(24.00
-0.10
)
-0.004
0.453 (11.50)
DA10XXC
XYYWW
Cover tape
0.369 (9.37)
0.472 (12.00)
0.024 (0.60) Max.
0.283 (7.20)
Unless otherwise stated all
dimensions in inches (mm) ±0.01(0.25).
Direction of unreeling
Murata Power Solutions, Inc.
11 Cabot Boulevard, Mansfield, MA 02048-1151 U.S.A.
ISO 9001 and 14001 REGISTERED
Murata Power Solutions, Inc. makes no representation that the use of its products in the circuits described herein, or the use of other
technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein do not imply
the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without
notice.
© 2017 Murata Power Solutions, Inc.
www.murata-ps.com/support
KMP_DA100C_C08
Page 3 of 3
