2089 Series
Two-, Four-, & Eight-Way Isolated Power
Dividers Wilkinson
Features
•
•
•
•
•
Excellent Amplitude and Phase Balance
High Isolation between Output Ports
Low VSWR, Small Size and Light Weight
Octave and Multi-Octave Frequency Coverage
Power: 10 Watts Input Maximum with Matched
Terminations
Rev. V3
Description and Applications
This series of two-way, in-phase stripline power
dividers demonstrates excellent performance as well
as small size and light weight. These octave and
multi-octave power dividers have high isolation, low
VSWR and excellent amplitude and phase balance.
Note: All dimensions are
±
.020, except mounting hole diameters
(± .005) and mounting hole location (± .010) .

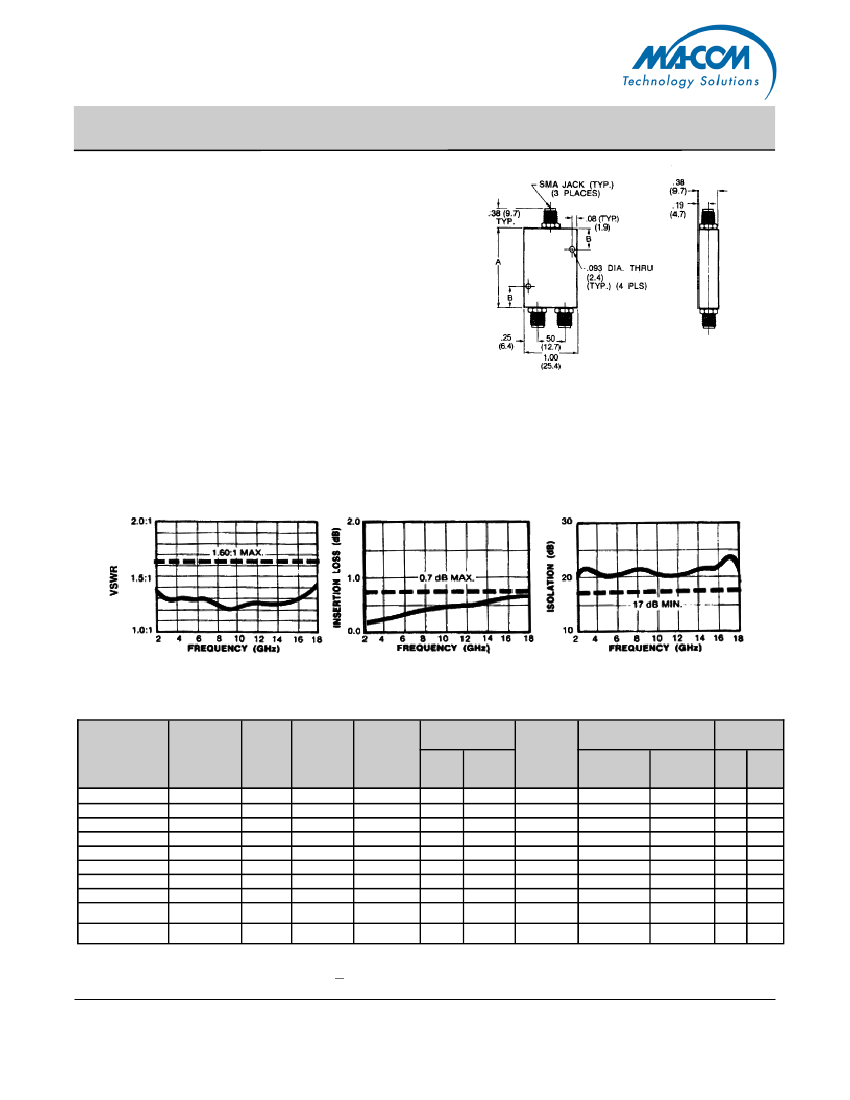

Typical Performance Part No. 2089-6208-00
Two-Way Isolated Power Divider Specifications
Part No.
Frequency
Range
(GHz)
VSWR
(max.)
Isolation
dB
(min.)
Insertion
Loss
dB (max.)
Output
Unbalance
Amp.
(dB)
0.2
0.2
0.2
0.25
0.25
0.2
0.25
0.25
0.25
0.25
Phase
(deg.)
4.0
4.0
6.0
6.0
6.0
4.0
8.0
8.0
8.0
8.0
Maxi-
mum
Input
Power*
(watts)
2.0
2.0
2.0
2.0
3.0
4.0
4.0
10.0
4.0
3.0
Size, Inches (mm)
A
2.0 (50.8)
2.0 (50.8)
1.38 (35)
1.38 (35)
1.38 (35)
2.8 (71.2)
2.25 (57.2)
2.25 (57.2)
1.63 (41.4)
1.38 (35)
B
0.5 (12.7)
0.5 (12.7)
0.4 (10.2)
0.4 (10.2)
0.4 (10.2)
1.4 (35.6)
0.5 (12.7)
0.5 (12.7)
0.5 (12.7)
0.4 (10.2)
Weight
oz.
1.5
1.5
1.2
1.2
1.2
2.0
1.3
1.3
1.3
1.2
g
43
43
35
35
35
57
37
37
37
35
2089-6201-00
2089-6202-00
2089-6203-00
2089-6204-00
2089-6205-00
2089-6206-00
2089-6207-00
2089-6208-00
2089-6209-00
2089-6210-00
1.0-2.0
2.0-4.0
4.0-8.0
8.0-12.4
12.4-18.0
0.5-2.0
2.0-8.0
2.0-18.0
4.0-18.0
7.0-18.0
1.25
1.35
1.35
1.60
1.70
1.30
1.50
1.60
1.60
1.70
20
20
20
20
17
20
18
17
17
17
0.25
0.25
0.3
0.4
0.6
0.4
0.4
1.0
0.6
0.6
* Maximum input power with output loads of VSWR
<
2.0:1. Derate to 10% of listed value when arbitrarily terminated.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
2089 Series
Two-, Four-, & Eight-Way Isolated Power
Dividers Wilkinson
Features
•
•
•
•
•
•
Octave and Multi-Octave Frequency Coverage
Low Insertion Loss
Excellent Phase Balance
High Isolation between Output Ports
Low VSWR
Power: 20 Watts Maximum
Rev. V3
Description and Applications
These four-way in-phase power dividers combine
excellent strip transmission line design techniques
with small size and light weight and still achieve su-
perb performance over wide multi-octave frequency
ranges as well as over single octave bandwidths.
These units may be used in reverse to combine in-
phase signals applied to them. They can be custom
designed to your particular application.
Note: All dimensions are
±
.020, except mounting hole diameters
(± .005) and mounting hole location (± .010) .

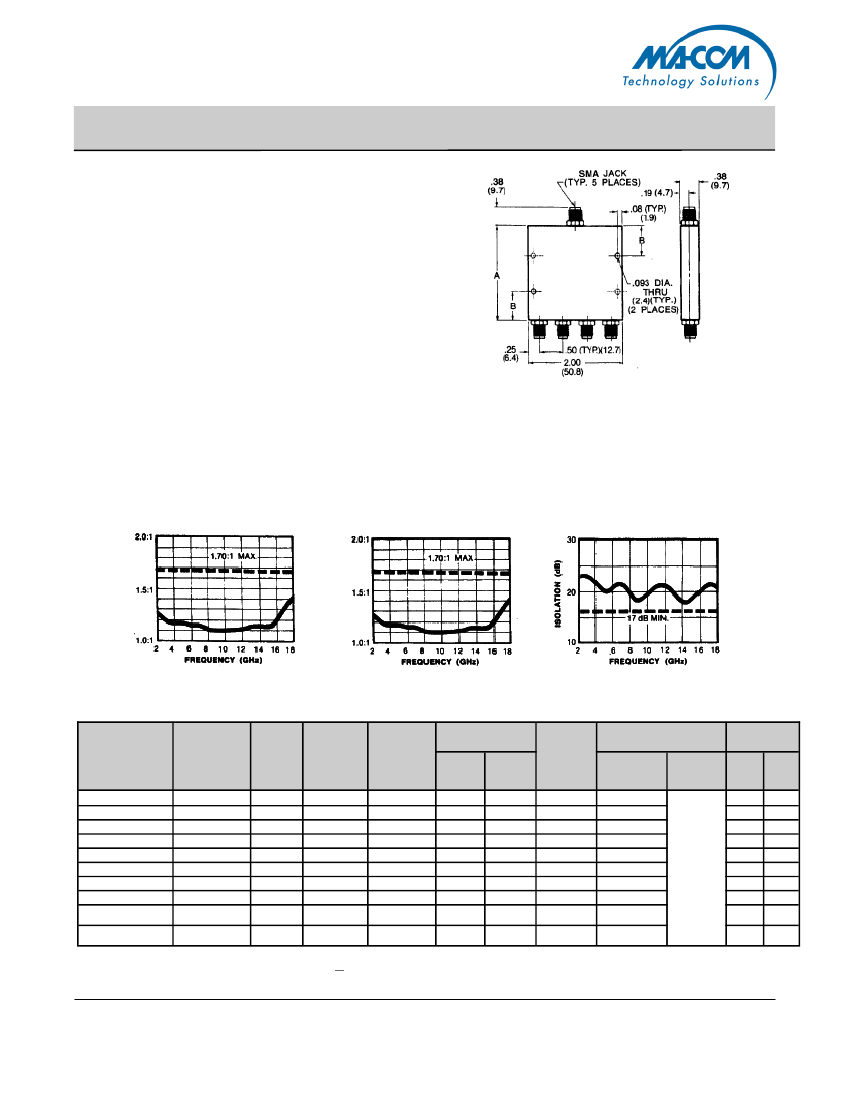

Typical Performance Part No. 2089-6408-00
Four-Way Isolated Power Divider Specifications
Part No.
Frequency
Range
(GHz)
VSWR
(max.)
Isolation
dB (min.)
Insertion
Loss
dB (max.)
Output
Unbalance
Amp.
(dB)
0.40
0.40
0.40
0.50
0.50
0.40
0.50
0.50
0.50
0.50
Phase
(deg.)
6
6
8
8
8
6
12
12
12
12
Maxi-
mum
Input
Power*
(watts)
4.0
4.0
4.0
4.0
6.0
4.0
8.0
20.0
8.0
6.0
Size, Inches (mm)
A
3.0 (76.2)
2.0 (50.8)
2.0 (50.8)
2.0 (50.8)
2.0 (50.8)
2.92 (74.2)
4.0 (102)
3.0 (76.2)
2.0 (50.8)
2.0 (50.8)
B
Weight
oz.
4.0
2.8
2.8
2.8
2.8
4.0
5.2
4.0
2.8
2.8
g
115
80
80
80
80
115
149
115
80
80
2089-6401-00**
2089-6402-00
2089-6403-00
2089-6404-00
2089-6405-00
2089-6406-00
2089-6407-00
2089-6408-00
2089-6409-00
2089-6410-00
1.0-2.0
2.0-4.0
4.0-8.0
8.0-12.4
12.4-18.0
0.5-2.0
2.0-8.0
2.0-18.0
4.0-18.0
7.0-18.0
1.35
1.35
1.50
1.70
1.70
1.45
1.60
1.70
1.70
1.60
20
20
20
18
15
20
18
17
15
15
0.50
0.50
0.50
0.75
1.20
0.70
0.80
1.80
1.20
1.20
0.63
(15.9)
* Maximum input power with output loads of VSWR
<
2.0:1. Derate to 10% of listed value when arbitrarily terminated.
** These units have four mounting holes symmetrically located as shown.
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
2089 Series
Two-, Four-, & Eight-Way Isolated Power
Dividers Wilkinson
Features
•
•
•
•
Octave and Multi-Octave Frequency Coverage
Excellent Amplitude and Phase Balance
Low Insertion Loss
Low VSWR
Rev. V3
Description and Applications
These eight-way in-phase power divides combine
reliable strip transmission line design techniques
with small size and light weight to achieve excellent
performance over octave and multi-octave frequency
ranges. They may also be used to combine in-phase
signals applied at the outputs. SMA female connec-
tors are standard.
All dimensions are
±
.020, except mounting hole diameters (±
.005) and mounting hole location (± .010) .

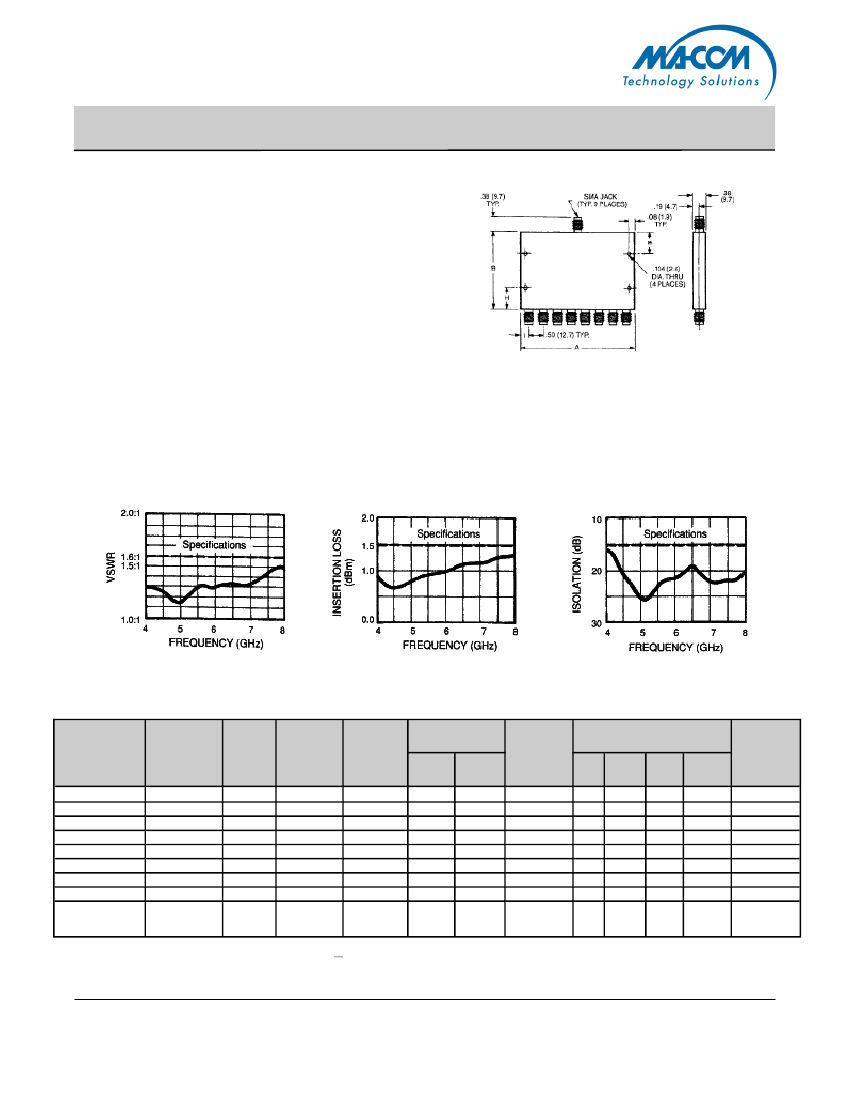

Typical Performance Part No. 2089-6803-00
