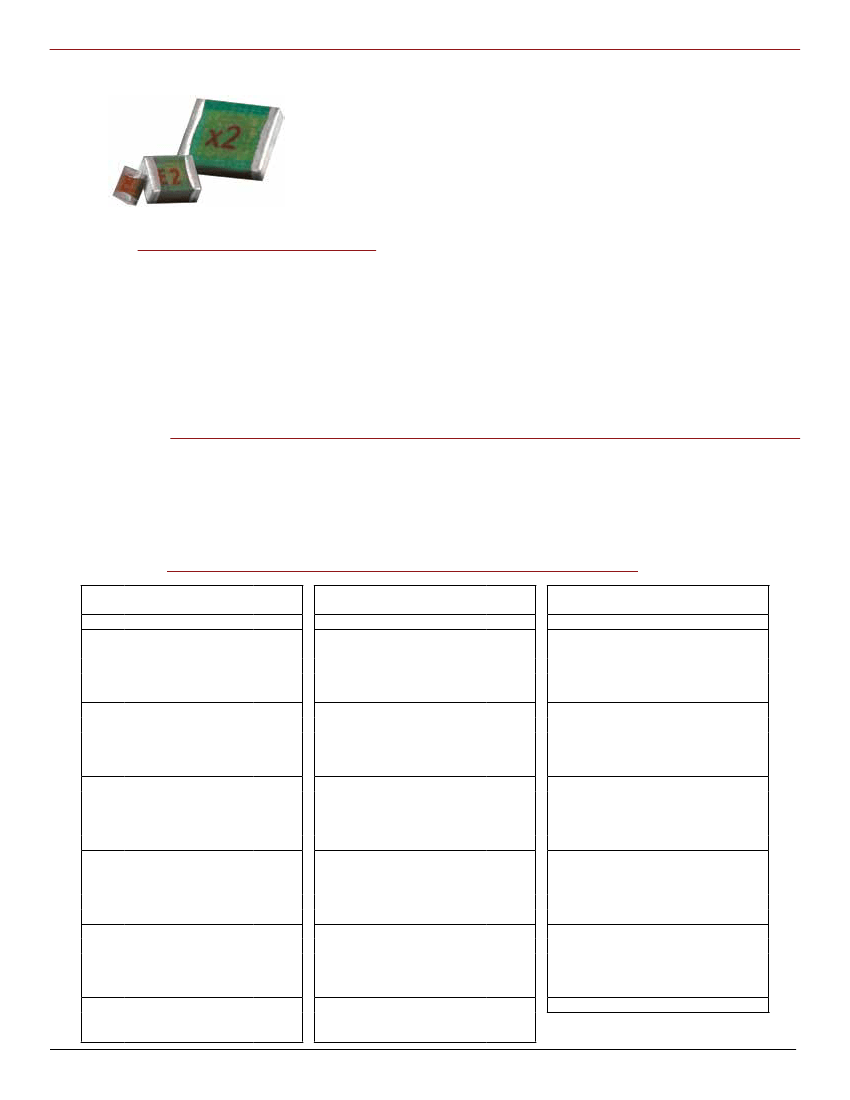

Types MC and MCN
Multilayer RF Capacitors
High-Frequency, High-Power, High-Voltage Chips with Nonmagnetic Option
Rugged flexibility and compatibility with FR4 boards make Type
MC and MCN capacitors ideal for use where other multilayer
caps aren’t recommended because of cracking. The natural
mica dielectric retains its high-Q to many megahertz, so higher
frequency applications are limited by the circuit inductance,
not the Type MC capacitor.
Nonmagnetic
Type MCN chips are
available for MRI and other high frequency applications that often
use more expensive porcelain ceramic chips.
Highlights
•
•
•
•
•
•
•
•
Extremely high Q at UHF/VHF frequencies
Free from thermal cracking, FR4 compatible
Wave solderable
Nonmagnetic option
Exceed 2 mm bend test
Better than porcelain
High RF current — dV/dt 20,000 V/µs
Rock stable: No change with time, V & f
Voltages:
Capacitance Range:
Capacitance Tolerance:
Temperature Range:
Case Sizes:
Applications
•
•
•
•
•
•
•
•
Specifications
MRI Coils and Generators
RF Instruments
Power Amplifiers
Tuned LCR Circuits
CATV
Ground and Flight Mobile Radio
Lasers
Software - Defined Frequency-Hopping Radio
100 Vdc, 500 Vdc, and 1000 Vdc
0.5 pF to 2,200 pF
±0.1pF to ±5%
–55 ºC to +125 ºC
0805, 1210, 1812, and 2220
Ratings
Cap
(pF)
Catalog
Part Number
100 Vdc
MC08CA0R5D-F
MC08CA010D-F
MC08CA020D-F
MC08CA030D-F
MC08CA040D-F
MC08CA050D-F
MC08CA060D-F
MC08CA070D-F
MC08CA080D-F
MC08CA090D-F
MC08CA100D-F
MC08EA120J-F
MC08EA150J-F
MC08EA180J-F
MC08EA200J-F
MC08EA220J-F
MC08EA240J-F
MC08EA270J-F
MC08EA300J-F
MC08FA330J-F
MC08FA360J-F
MC08FA390J-F
MC08FA430J-F
MC08FA470J-F
MC08FA500J-F
MC08FA510J-F
MC08FA560J-F
MC08FA620J-F
Case
Type
Cap
(pF)
Catalog
Part Number
100 Vdc
MC08FA680J-F
MC08FA750J-F
MC08FA820J-F
MC08FA910J-F
MC08FA101J-F
MC12FA470J-F
MC12FA500J-F
MC12FA510J-F
MC12FA560J-F
MC12FA620J-F
MC12FA680J-F
MC12FA750J-F
MC12FA820J-F
MC12FA910J-F
MC12FA101J-F
MC12FA111J-F
MC12FA121J-F
MC12FA131J-F
MC12FA151J-F
MC12FA161J-F
MC12FA181J-F
MC12FA201J-F
MC12FA221J-F
MC12FA241J-F
MC12FA251J-F
MC12FA271J-F
MC12FA301J-F
MC12FA331J-F
Case
Type
Cap
(pF)
RoHS Compliant
Catalog
Part Number
100 Vdc
MC12FA361J-F
MC12FA391J-F
MC12FA431J-F
MC18FA251J-F
MC18FA271J-F
MC18FA301J-F
MC18FA331J-F
MC18FA361J-F
MC18FA391J-F
MC18FA431J-F
MC18FA471J-F
MC18FA501J-F
MC18FA511J-F
MC18FA561J-F
MC18FA621J-F
MC18FA681J-F
MC18FA751J-F
MC18FA821J-F
MC22FA911J-F
MC22FA102J-F
MC22FA112J-F
MC22FA122J-F
MC22FA152J-F
MC22FA182J-F
MC22FA202J-F
MC22FA222J-F
Case
Type
0.5
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
10.0
12.0
15.0
18.0
20.0
22.0
24.0
27.0
30.0
33.0
36.0
39.0
43.0
47.0
50.0
51.0
56.0
62.0
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
68
75
82
91
100
47
50
51
56
62
68
75
82
91
100
110
120
130
150
160
180
200
220
240
250
270
300
330
0805
0805
0805
0805
0805
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
360
390
430
250
270
300
330
360
390
430
470
500
510
560
620
680
750
820
910
1000
1100
1200
1500
1800
2000
2200
1210
1210
1210
1812
1812
1812
1812
1812
1812
1812
1812
1812
1812
1812
1812
1812
1812
1812
2220
2220
2220
2220
2220
2220
2220
2220
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
1
Types MC and MCN
Multilayer RF Capacitors
Cap
(pF)
0.5
1
2
3
4
5
6
7
8
9
10
12
15
18
20
1
2
3
4
5
6
7
8
9
10
12
15
Cap
(pF)
0.5
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
10.0
12.0
15.0
18.0
20.0
22.0
24.0
27.0
30.0
33.0
36.0
Catalog
Part Number
500 Vdc
MC08CD0R5D-F
MC08CD010D-F
MC08CD020D-F
MC08CD030D-F
MC08CD040D-F
MC08CD050D-F
MC08CD060D-F
MC08CD070D-F
MC08CD080D-F
MC08CD090D-F
MC08CD100D-F
MC08ED120J-F
MC08ED150J-F
MC08ED180J-F
MC08ED200J-F
MC12CD010D-F
MC12CD020D-F
MC12CD030D-F
MC12CD040D-F
MC12CD050D-F
MC12CD060D-F
MC12CD070D-F
MC12CD080D-F
MC12CD090D-F
MC12CD100D-F
MC12ED120J-F
MC12ED150J-F
Catalog
Part Number
1000 Vdc
MC12CF0R5D-F
MC12CF010D-F
MC12CF020D-F
MC12CF030D-F
MC12CF040D-F
MC12CF050D-F
MC12CF060D-F
MC12CF070D-F
MC12CF080D-F
MC12CF090D-F
MC12CF100D-F
MC12EF120J-F
MC12EF150J-F
MC12EF180J-F
MC12EF200J-F
MC12EF220J-F
MC12EF240J-F
MC12EF270J-F
MC12EF300J-F
MC12FF330J-F
MC12FF360J-F
Case
Type
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
0805
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
Case
Type
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
Cap
(pF)
18
20
22
24
27
30
33
36
39
43
47
50
51
56
62
68
75
82
91
100
110
120
130
150
100
110
120
Cap
(pF)
39
43
47
50
51
56
62
68
75
82
91
100
110
120
130
150
160
180
200
220
240
Catalog
Part Number
500 Vdc
MC12ED180J-F
MC12ED200J-F
MC12ED220J-F
MC12ED240J-F
MC12ED270J-F
MC12ED300J-F
MC12FD330J-F
MC12FD360J-F
MC12FD390J-F
MC12FD430J-F
MC12FD470J-F
MC12FD500J-F
MC12FD510J-F
MC12FD560J-F
MC12FD620J-F
MC12FD680J-F
MC12FD750J-F
MC12FD820J-F
MC12FD910J-F
MC12FD101J-F
MC12FD111J-F
MC12FD121J-F
MC12FD131J-F
MC12FD151J-F
MC18FD101J-F
MC18FD111J-F
MC18FD121J-F
Catalog
Part Number
1000 Vdc
MC12FF390J-F
MC12FF430J-F
MC12FF470J-F
MC12FF500J-F
MC22FF510J-F
MC22FF560J-F
MC22FF620J-F
MC22FF680J-F
MC22FF750J-F
MC22FF820J-F
MC22FF910J-F
MC22FF101J-F
MC22FF111J-F
MC22FF121J-F
MC22FF131J-F
MC22FF151J-F
MC22FF161J-F
MC22FF181J-F
MC22FF201J-F
MC22FF221J-F
MC22FF241J-F
Case
Type
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1210
1812
1812
1812
Case
Type
1210
1210
1210
1210
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
Cap
(pF)
RoHS Compliant
Case
Type
1812
1812
1812
1812
1812
1812
1812
1812
1812
1812
1812
1812
1812
1812
1812
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
Case
Type
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
Catalog
Part Number
500 Vdc
130 MC18FD131J-F
150 MC18FD151J-F
160 MC18FD161J-F
180 MC18FD181J-F
200 MC18FD201J-F
220 MC18FD221J-F
240 MC18FD241J-F
250 MC18FD251J-F
270 MC18FD271J-F
300 MC18FD301J-F
330 MC18FD331J-F
360 MC18FD361J-F
390 MC18FD391J-F
430 MC18FD431J-F
470 MC18FD471J-F
500 MC22FD501J-F
510 MC22FD511J-F
560 MC22FD561J-F
620 MC22FD621J-F
680 MC22FD681J-F
750 MC22FD751J-F
820 MC22FD821J-F
910 MC22FD911J-F
1000 MC22FD102J-F
1100 MC22FD112J-F
1200 MC22FD122J-F
Cap
(pF)
250
270
300
330
360
390
430
470
500
510
560
620
680
750
820
910
1000
1100
1200
1500
Catalog Part
Number
1000 Vdc
MC22FF251J-F
MC22FF271J-F
MC22FF301J-F
MC22FF331J-F
MC22FF361J-F
MC22FF391J-F
MC22FF431J-F
MC22FF471J-F
MC22FF501J-F
MC22FF511J-F
MC22FF561J-F
MC22FF621J-F
MC22FF681J-F
MC22FF751J-F
MC22FF821J-F
MC22FF911J-F
MC22FF102J-F
MC22FF112J-F
MC22FF122J-F
MC22FF152J-F
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
2
Types MC and MCN
Multilayer RF Capacitors
Part Numbering System and Ordering Information
Order by complete part number, as below. For other options, write your requirement on your RFQ.
MC(N)
CDE
Type
MC
= Standard
22
Case
Code
08
= 0805
18
= 1812
22
= 2220
F
Temperature
Coefficient
Voltage
A
= 100 Vdc
D
= 500 Vdc
Capacitance
010
= 1 pF
1R8
= 1.8 pF
182
= 1800 pF
Package
Blank
= Bulk
D
122
J
–
T
F
RoHS
(MC only)
MCN complies
(no F required)
MCN
= Nonmagnetic
12
= 1210
F
= 1000 Vdc
(187)
= 187 pF
Capacitor Tolerance
T
= Tape & reel
not specific
TC Capacitance
Temperature
Code Range (pF) Coefficient ppm/ºC
C
E
F
0.5 to 10
10.5 to 30
30.5 & up
100 ±100
50 ±50
25 ±25
Capacitance
Drift
±(0.5% +0.1 pF)
±(0.1% +0.1 pF)
±(0.05% +0.1 pF)
Tol.
Code
B
C
D
D
F
F
G
J
Tolerance
±0.1 pF
±0.25 pF
±0.5 pF
±0.50%
±1 pF
±1%
±2%
±5%
Capacitance
Range
0.5 pF to 5 pF
0.5 pF to 100 pF
0.5 pF to 10 pF
50.5 pF to 100 pF
5.5 pF to 10 pF
25.5 pF and up
13.0 pF and up
10.5 pF and up
Available Capacitance Values
Case
Code
08
12
12
12
18
22
22
241 to 820
821 to 1000
91.5 to 470
471 to 1000
100 Vdc
0.5 to 100
43.5 to 100
101 to 430
Capacitance (pF)
500 Vdc
0.5 to 20
0.5 to 100
101 to 150
1000 Vdc
N/A
N/A
N/A
0.5 to 50
N/A
N/A
Minimum
Cap.
Step, pF
0.5
0.5
1.0
1.0
1.0
1.0
10.0
Standard Minimum Quanti-
Reel Packed
Case Codes 08 & 12: 3,000/reel*
Case Codes 18 & 22: 1,000/reel**
Bulk Packed
100 per bag
1010 to 2200 1010 to 1200 50.5 to 1500
*note - MC12, 100 volt units -250
pF and above, and 500 volt units
-100 pF and above 2000 pc reels
**note - MC22, 1000 volt units -680
pF and above 500 pc reels
Case Sizes
INCHES
Case
Code
08
12
18
22
Case
Type
0805
1210
1812
2220
L
0.079
+.02 –0
MILLIMETERS
I
Min./Max.
0.008/0.035
0.012/0.043
0.012/0.051
0.012/0.051
L
+0.5 –0
W
+.02 –0
H
(Max.)
0.055
0.079
0.079
0.079
W
+0.5 –0
H
(Max.)
1.4
2.0
2.0
2.0*
I
Min./Max.
0.2/0.9
0.3/1.1
0.3/1.3
0.3/1.3
0.049
0.098
0.126
0.197
2.0
3.2
4.5
5.7
1.25
2.5
3.2
5.0
+.024–.004 +.024–.004
+.024 –.008
0.126
0.177
0.224
+0.6 –0.1 +0.6 –0.1
+0.6 –0.2
+0.6 –0
+.024 –.0
+.016 –.012 +.016 –.012
+0.4 –0.3 +0.4 –0.3
*.157 (4.0 mm) for 1000 V rating
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
3
Types MC and MCN
Multilayer RF Capacitors
Typical Performance Curves
Type MC

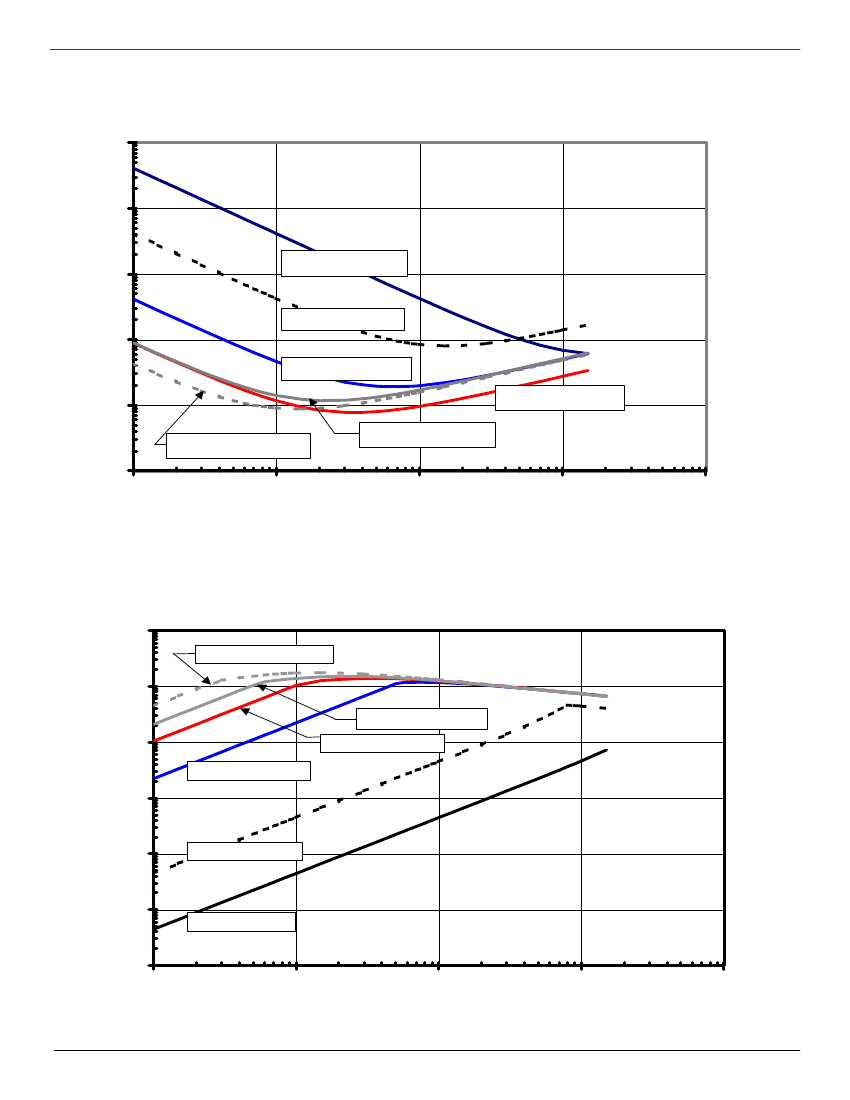

Typical Mica Chip E.S.R.
Typical ESR vs. Frequency
100
10
E.S.R. (Ohms)
1
1pF/100V MC08
10pF/100V MC08
0.1
100pF/500V MC12
0.01
1000pF/1000V MC22
470pF/1000V MC22
470pF/500V MC18
0.001
1
10
100
Frequency (MHz)
1000
10000
82906a
Type MC Maximum RMS Current vs. Frequency
Type MC
Current at 60°C Rise
100
1000pF/1000V MC22
10
470pF/1000V MC22
RMS Current (Amps)
1
100pF/500V MC12
0.1
470pF/500V MC18
0.01
10pF/100V MC08
0.001
1pF/100V MC08
0.0001
1
10
100
1000
10000
Frequency (MHz)
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
4
Types MC and MCN
Multilayer RF Capacitors
Typical Performance Curves
Type MC Typical Q
Chip Q
Typical Mica
vs. Frequency
10000
1pF/100V MC08
1000
100pF/500V MC12
470pF/500V MC18
10pF/100V MC08
Q
100
470pF/1000V MC22
1000pF/1000V MC22
10
1
1
10
100
1000
10000
82906b
Frequency (MHz)

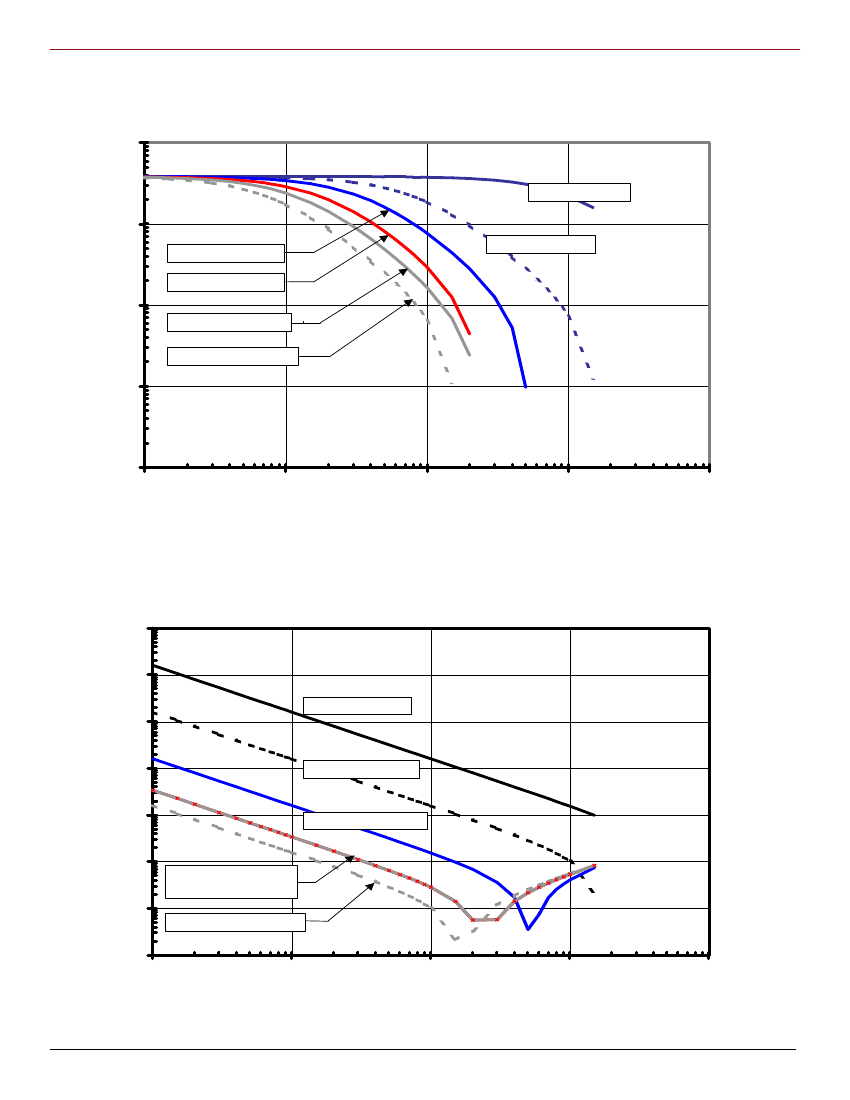

Type MC Typical Impedance vs. Frequency
Mica Chip Impedance
1000000
100000
10000
1pF/100V MC08
Impedance (ohms)
1000
100
10
1
0.1
10pF/100V MC08
100pF/500V MC12
470pF/500V MC18
470pF/1000V MC22
1000pF/1000V MC22
1
10
100
1000
10000
82906a
Frequency (MHz)
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
5
京公网安备 11010802033920号
EEWORLD
