HH-128-PIN
Flatpack Hybrid Junction,
20 - 2000 MHz
Features
1.5 dB Typical Midband Insertion Loss
30 dB Typical Midband Isolation
1.3:1 Typical Midband VSWR
MIL-STD-202 Screening Available
Rev. V3
FP-3
Description
3 dB Hybrids are ideal for dividing a signal into two
signals of equal amplitude and a constant 90° or
180° phase differential and for Quadrature
combining or performing summation/differential
combining.
Pin Configuration
Pin No.
1
2
3
4
5
Function
C
GND
GND
GND
D
Pin No.
6
7
8
9
10
Function
A
GND
GND
GND
B
Electrical Specifications
1
: T
A
= -55°C to +85°C
Parameter
Insertion Loss
Isolation
Amplitude Balance
VSWR
Phase Balance
Test Conditions
Less Coupling
—
—
—
—
Frequency
20 - 2000 MHz
20 - 1000 MHz
20 - 2000 MHz
20 - 1000 MHz
20 - 2000 MHz
20 - 1000 MHz
20 - 2000 MHz
20 - 2000 MHz
20 - 1000 MHz
20 - 500 MHz
—
—
Units
dB
dB
dB
dB
dB
dB
Ratio
°
°
°
Ohms
Watts
Min
—
—
15
20
—
—
—
—
—
—
—
—
Typ
—
—
—
—
—
—
—
—
—
—
50
—
Max
3.0
2.5
—
—
1.2
0.5
2.0:1
20
15
10
—
0.5
Impedance
Input Power
—
—
1. All specifications apply with 50 ohm source and load impedance.
This product contains elements protected by United States Patent umber 3,508,171
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
HH-128-PIN
Flatpack Hybrid Junction,
20 - 2000 MHz
Functional Diagram
C
Rev. V3
Ordering Information
Part Number
HH-128 PIN
Package
FP-3
0°
A
180°
Hybrid
Magic
Tee
0°
B
0°
D

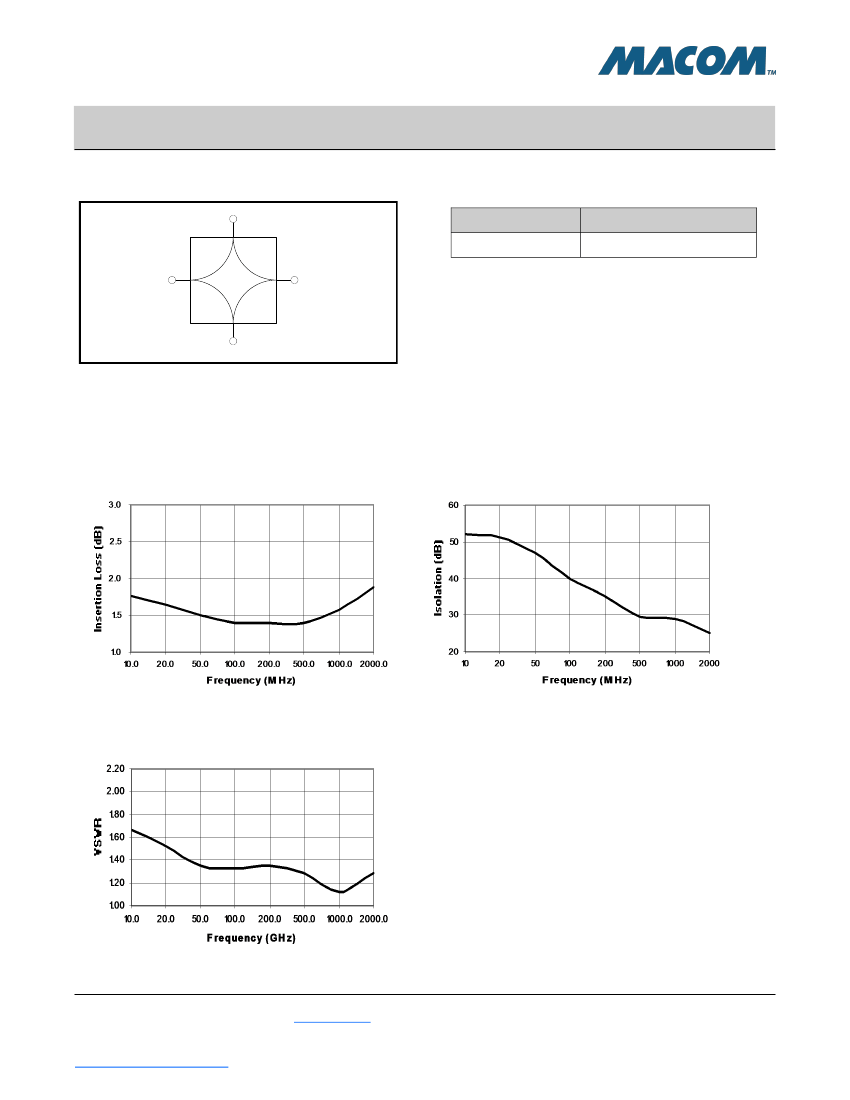

Typical Performance Curves
Insertion Loss
Isolation
VSWR
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
