AM29C818ASC: DescriptionCMOS PIPELINE REGISTER WITH SSR DIAGNOSTICS; Categorylogic logic; File Size861KB，21 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

AM29C818ASC Overview

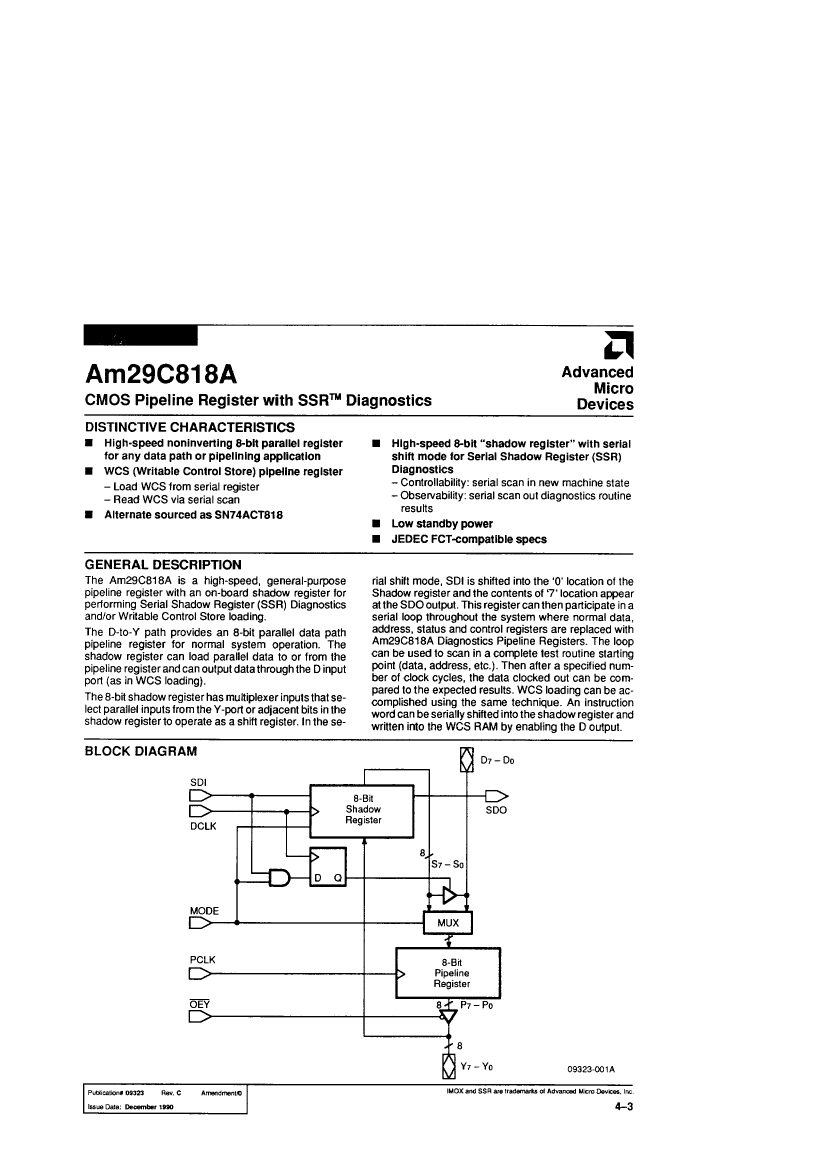

CMOS PIPELINE REGISTER WITH SSR DIAGNOSTICS

AM29C818ASC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP,
Contacts	24
Reach Compliance Code	unknow
Factory Lead Time	1 week
Other features	DIAGNOSTIC SCAN REGISTER WITH SELECTABLE SERIAL & PARALLEL DATA I/P'S
series	CMOS
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
length	15.4 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
propagation delay (tpd)	12 ns
Certification status	Not Qualified
Maximum seat height	3 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm
Base Number Matches	1

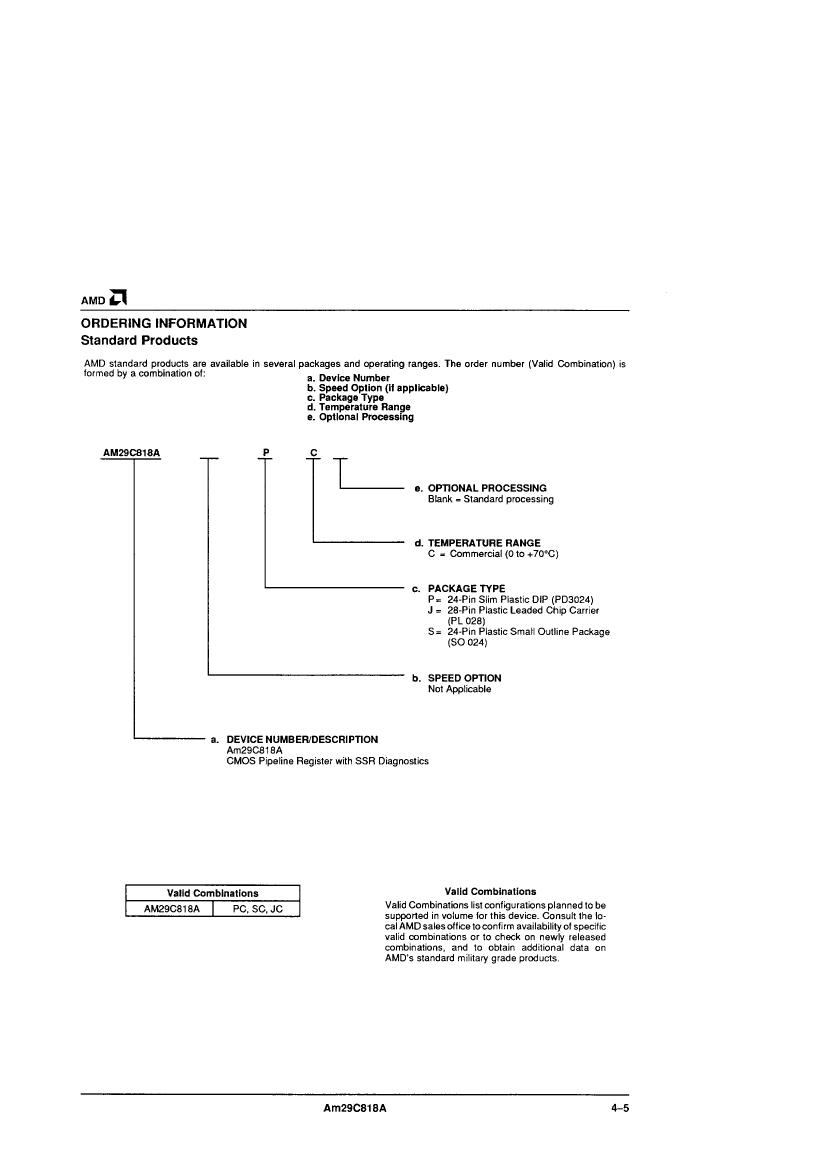

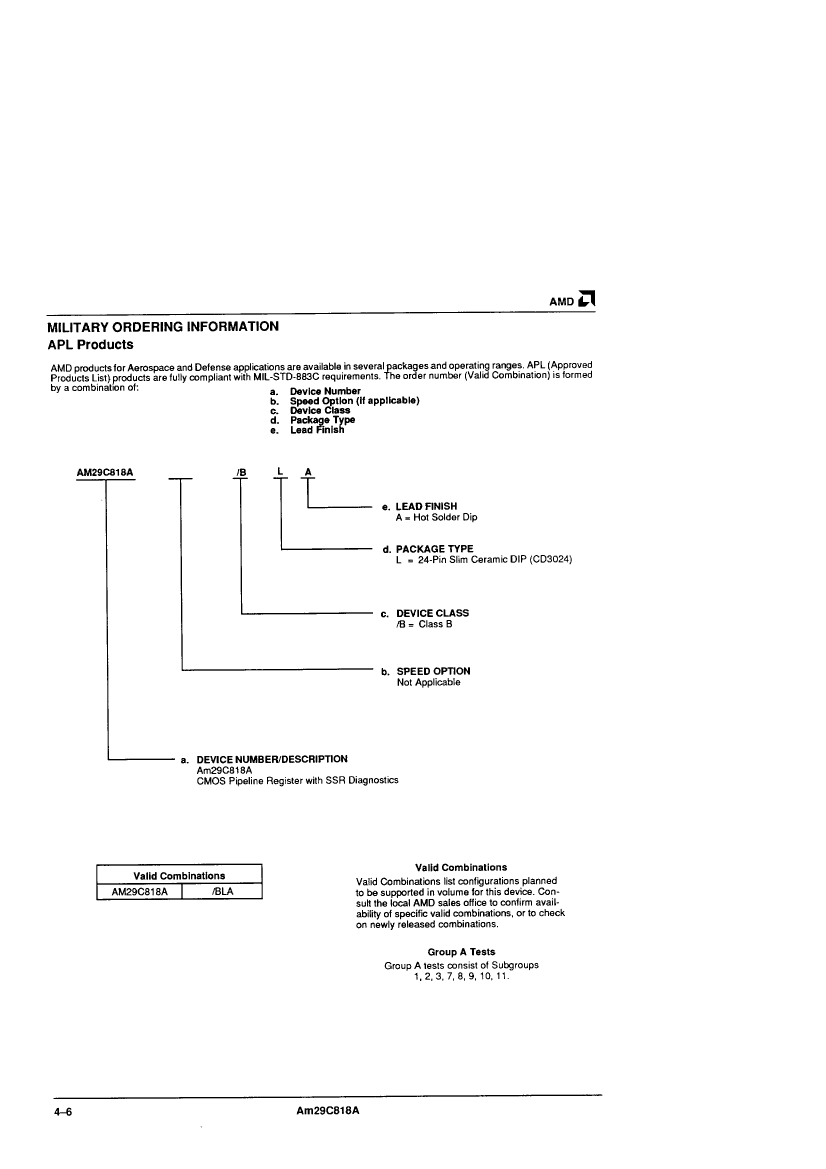

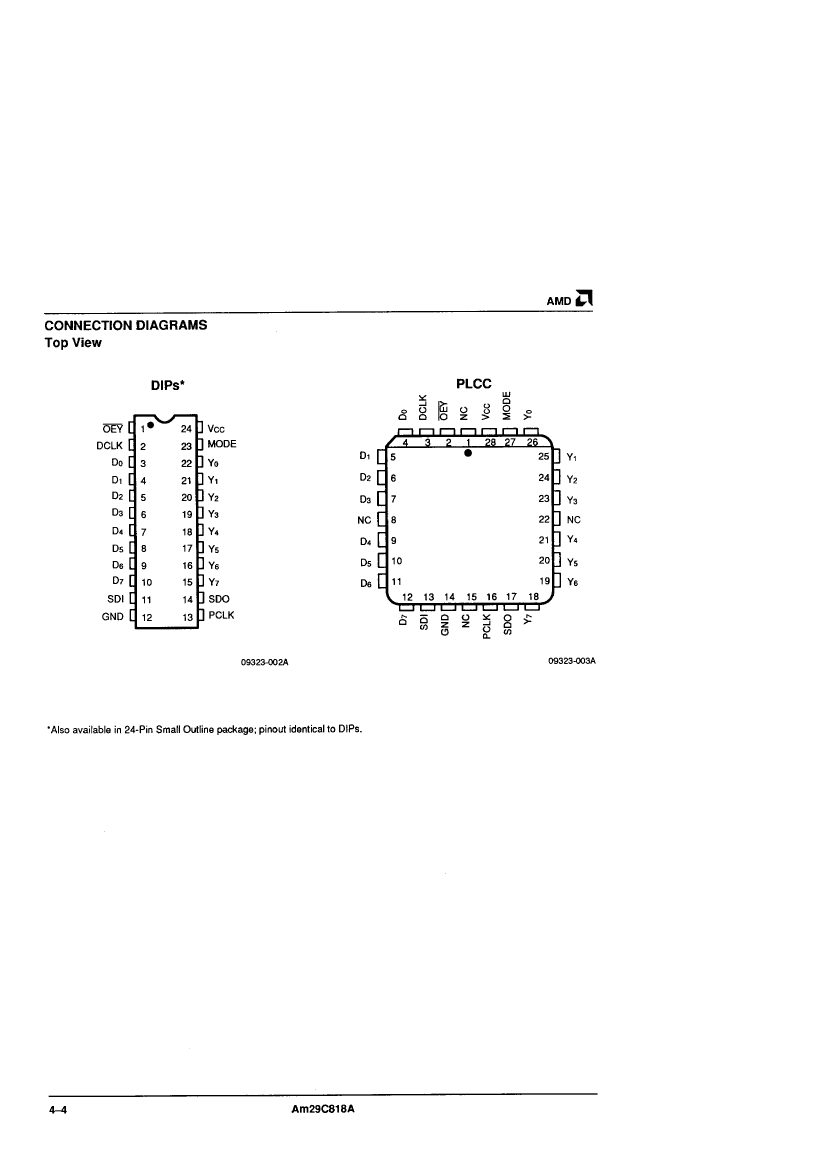

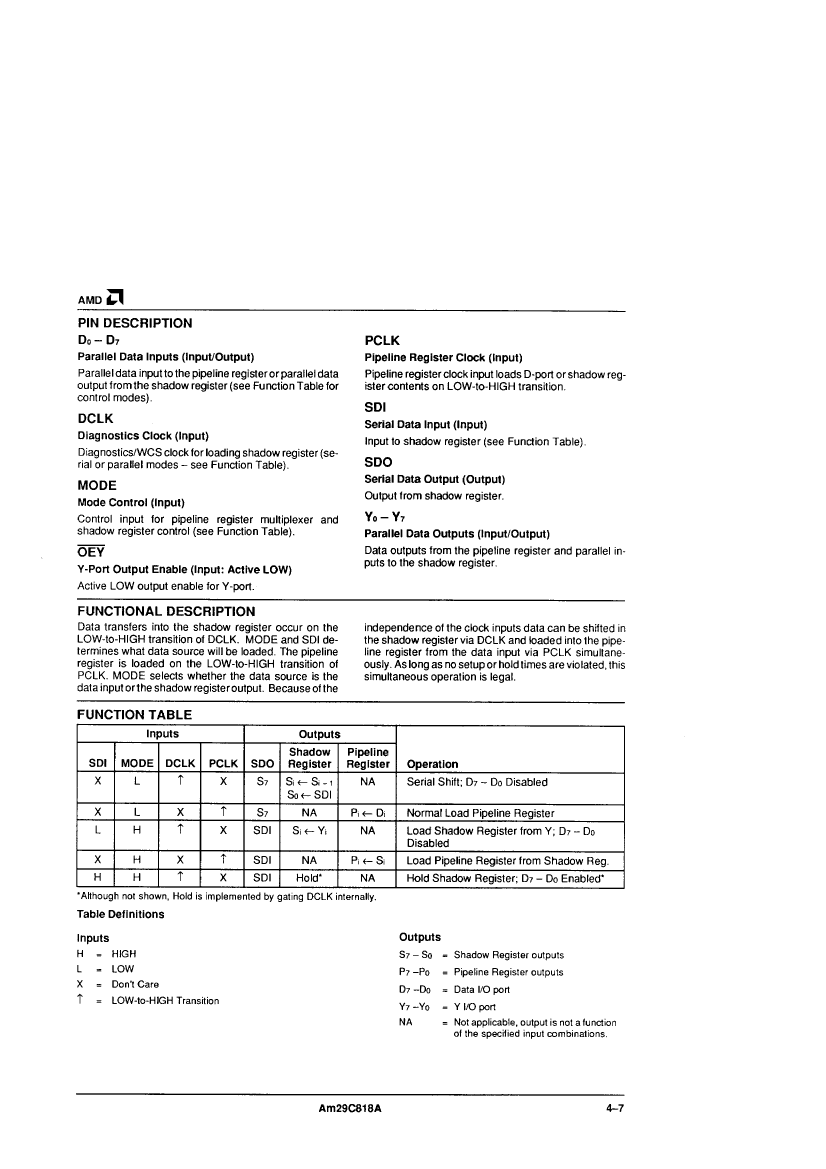

Preview

Download Datasheet

View All

AM29C818ASC Related Products

	AM29C818ASC	AM29C818A	AM29C818AJC	AM29C818APC
Description	CMOS PIPELINE REGISTER WITH SSR DIAGNOSTICS	CMOS PIPELINE REGISTER WITH SSR DIAGNOSTICS	CMOS PIPELINE REGISTER WITH SSR DIAGNOSTICS	CMOS PIPELINE REGISTER WITH SSR DIAGNOSTICS
Is it lead-free?	Contains lead	-	Contains lead	Contains lead
Is it Rohs certified?	incompatible	-	incompatible	incompatible
Parts packaging code	SOIC	-	QLCC	DIP
package instruction	SOP,	-	QCCJ,	DIP,
Contacts	24	-	28	24
Reach Compliance Code	unknow	-	unknow	unknow
Other features	DIAGNOSTIC SCAN REGISTER WITH SELECTABLE SERIAL & PARALLEL DATA I/P'S	-	DIAGNOSTIC SCAN REGISTER WITH SELECTABLE SERIAL & PARALLEL DATA I/P\'S	DIAGNOSTIC SCAN REGISTER WITH SELECTABLE SERIAL & PARALLEL DATA I/P'S
series	CMOS	-	CMOS	CMOS
JESD-30 code	R-PDSO-G24	-	S-PQCC-J28	R-PDIP-T24
JESD-609 code	e0	-	e0	e0
length	15.4 mm	-	11.5062 mm	30.734 mm
Load capacitance (CL)	50 pF	-	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	-	BUS DRIVER	BUS DRIVER
Number of digits	8	-	8	8
Number of functions	1	-	1	1
Number of ports	2	-	2	2
Number of terminals	24	-	28	24
Maximum operating temperature	70 °C	-	70 °C	70 °C
Output characteristics	3-STATE	-	3-STATE	3-STATE
Output polarity	TRUE	-	TRUE	TRUE
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	-	QCCJ	DIP
Package shape	RECTANGULAR	-	SQUARE	RECTANGULAR
Package form	SMALL OUTLINE	-	CHIP CARRIER	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
propagation delay (tpd)	12 ns	-	12 ns	12 ns
Certification status	Not Qualified	-	Not Qualified	Not Qualified
Maximum seat height	3 mm	-	4.57 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	-	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	-	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	-	5 V	5 V
surface mount	YES	-	YES	NO
technology	CMOS	-	CMOS	CMOS
Temperature level	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	-	J BEND	THROUGH-HOLE
Terminal pitch	1.27 mm	-	1.27 mm	2.54 mm
Terminal location	DUAL	-	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
width	7.5 mm	-	11.5062 mm	7.62 mm
