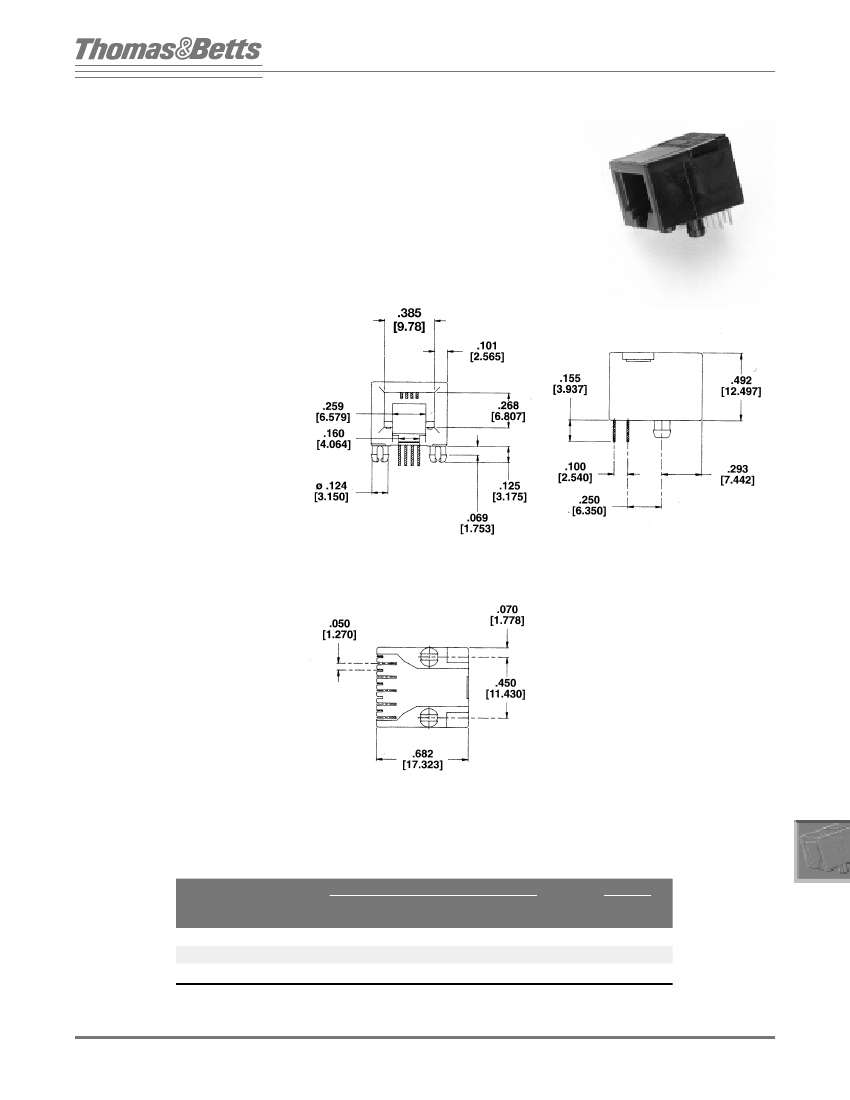

Modular Connector
Female
6 POSITION
LOW PROFILE FEMALE
CONNECTORS
DT & RC SERIES
P
HYSICAL
P
ROPERTIES
I
NSULATION
M
ATERIAL
:
High temperature thermo-
plastic rated UL 94V-0
I
NSULATOR
C
OLOR
:
Black
C
ONTACTS
:
High performance copper alloy
P
LATING
:
Nickel plate overall, gold finish in con-
tact zone,Tin/Lead on contact tails
I
NSERTION
F
ORCE
:
2 lbs max.
P
LUG
R
ETENTION
:
20 lb retention strength on PCB;
Prior to soldering: 20 lb;
After soldering: 20 lb.
D
URABILITY
:
DT series — Minimum of 1000 insertions and
withdrawals without degradation of performance.
RC series — Minimum of 750 insertions and
withdrawals without degradation of performance
Contacts are protected from overstress by small-
er modular plugs.
E
LECTRICAL
P
ROPERTIES
V
OLTAGE
R
ATING
:
DT Current Rating: 3 amps typ.
RC Current Rating: 2 amps typ.
I
NITIAL
C
ONTACT
R
ESISTANCE
:
5 milliohms max.
C
ONTACT
R
ESISTANCE
A
FTER
C
YCLING
:
10 milliohms
max. in accordance with durability specified
I
NSULATION
R
ESISTANCE
:
1000 megohms min.
D
IELECTRIC
W
ITHSTANDING
:
1300 VRMS @ 60 sec
duration
DT D
ATA
T
RANSMISSION
R
ATE
:
350+ Mbps
RC D
ATA
T
RANSMISSION
R
ATE
:
200+ Mbps
DT S
TANDING
W
AVE
R
EFLECTIONS
:
VSWR = 1.1
RC S
TANDING
W
AVE
R
EFLECTIONS
:
VSWR = 1.2
Ordering Information
# OF
CONTACTS
4
6
8
STANDARD
GOLD
020-000-229
020-000-186
020-000-024
DT SERIES
30
GOLD
020-001-280
020-001-161
—
50
GOLD
020-000-130
—
—
RC SERIES
STANDARD
GOLD
020-003-286
020-003-287
020-003-288
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
Dimensions shown are for reference only. Dimensions are in inches [mm].
