3543S-1-502L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 3543S-1-502L

3543S-1-502L: DescriptionPrecision Potentiometers 7/8"WW 5KOHMS 0.25% 3TURNS; CategoryPassive components The resistor; File Size190KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3543S-1-502L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3543S-1-502L	-	-	View	Buy Now

3543S-1-502L Overview

Precision Potentiometers 7/8"WW 5KOHMS 0.25% 3TURNS

3543S-1-502L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	Panel Mount,
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	9 weeks
Actuator direction	HORIZONTAL
Actuator type	SHAFT
Other features	PRECISION
structure	Bushing Mount
gang number	1
JESD-609 code	e4
Installation features	CHASSIS MOUNT
Number of terminals	3
number of turns	3
Maximum operating temperature	125 °C
Minimum operating temperature	1 °C
Package diameter	22.23 mm
Package length	19.05 mm
Package shape	CIRCULAR PACKAGE
Package form	Panel Mount
Rated power dissipation(P)	1 W
Rated temperature	70 °C
resistance	5000 Ω
resistance law	LINEAR
Resistor type	POTENTIOMETER
rotation angle	1080 deg
surface mount	NO
technology	WIRE WOUND
Temperature Coefficient	-50,50 ppm/°C
Terminal surface	Gold (Au)
Terminal shape	LUG
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

Features

■

Bushing mount

■

Optional AR pin feature

■

Non-standard features and speciﬁcations available

■

Gangable

■

RoHS compliant*

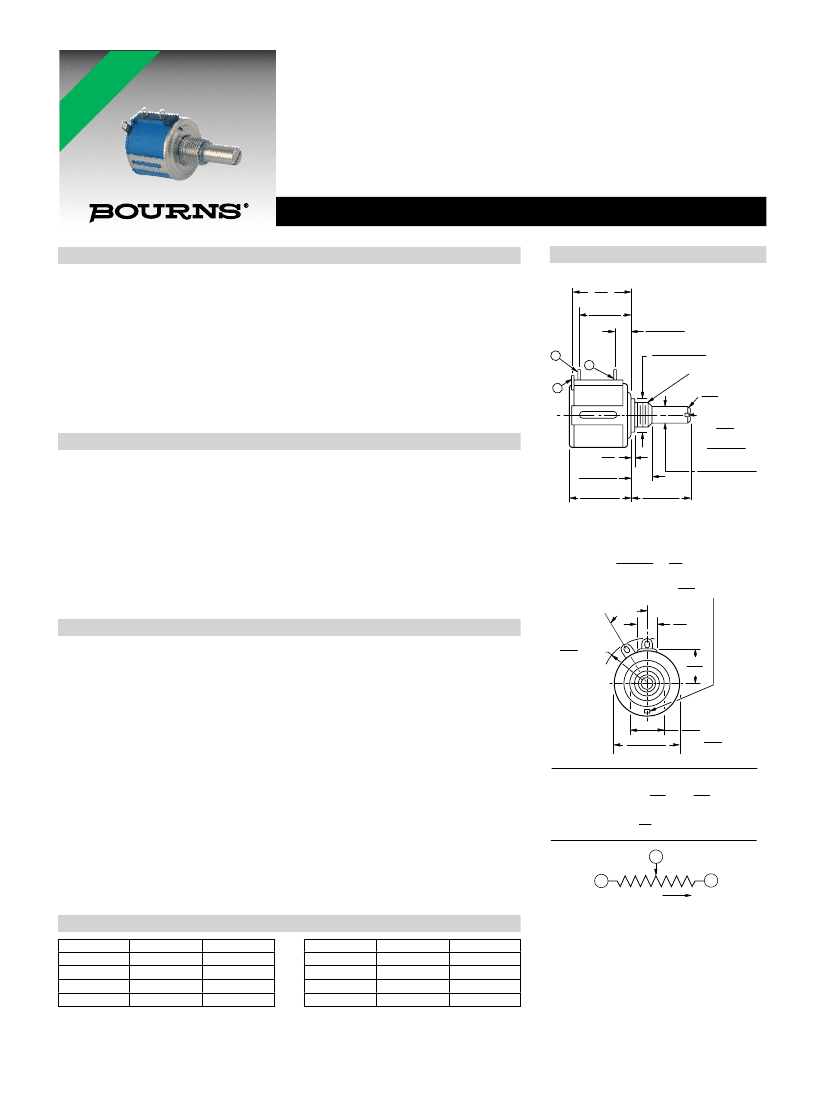

3543/3545 - Precision Potentiometer

Electrical Characteristics

3543 3-Turn

3545 5-Turn

Product Dimensions

3543S-1/3545S-1

18.3

(.72)

14.35 ± .38

(.565 ± .015)

Standard Resistance Range................ 20 to 50 K ohms .........................50 to 50 K ohms

Total Resistance Tolerance.................. ±5 % ...........................................±5 %

Independent Linearity .......................... ±0.25 % ......................................±0.25 %

Effective Electrical Angle ..................... 1080 ° +10 °, -0 ° .......................1800 ° +10 °, -0 °

Absolute Minimum Resistance/ ........... 1 ohm or 0.1 % maximum ..........1 ohm or 0.1 % maximum

Minimum Voltage ............................. (whichever is greater).................(whichever is greater)

Noise .................................................. 100 ohms ENR maximum ..........100 ohms ENR maximum

Dielectric Withstanding Voltage (MIL-STD-202, Method 301)

Sea Level ......................................... 1,000 VAC minimum ..................1,000 VAC minimum

Power Rating (Voltage Limited By Power Dissipation or

224 VAC [3543] or 273 VAC [3545], Whichever Is Less)

+70 °C.............................................. 1 watt..........................................1.5 watt

+125 °C............................................ 0 watt..........................................0 watt

Insulation Resistance (500 VDC) ........ 1,000 megohms minimum ..........1,000 megohms minimum

Resolution............................................ See recommended part nos. .....See recommended part nos.

5.72 ± .38

(.225 ± .015)

10.31+ .00/ - .05

DIA.

(.406+.000/-.002)

3/8 " 32-UNEF-2ATHD

.25

X 45 ° CHAMFER

(.010)

ADJUSTMENT

.81

SLOT

WIDE

(.032)

.81±.25

DEEP

(.032±.0160)

6.342 + .000/ - .023

(.2497+.0000/-.0009)

DIA.

Environmental Characteristics

Operating Temperature Range ............ +1 °C to +125 °C ........................+1 °C to +125 °C

Storage Temperature Range ............... -55 °C to +125 °C .......................-55 °C to +125 °C

Temperature Coefﬁcient Over

Storage Temperature Range

.......... ±50 ppm/°C maximum/unit .........±50 ppm/°C maximum/unit

Vibration .............................................. 15 G ...........................................15 G

Wiper Bounce .................................. 0.1 millisecond maximum ...........0.1 millisecond maximum

Shock................................................... 50 G ...........................................50 G

Wiper Bounce .................................. 0.1 millisecond maximum ...........0.1 millisecond maximum

Load Life .............................................. 1,000 hours, 1 watt.....................1,000 hours, 1.5 watts

Total Resistance Shift ...................... ±2 % maximum ..........................±2 % maximum

Rotational Life (No Load)..................... 300,000 shaft revolutions ...........500,000 shaft revolutions

Total Resistance Shift ...................... ±5 % maximum ..........................±5 % maximum

Moisture Resistance (MIL-STD-202, Method 103, Condition B)

Total Resistance Shift ...................... ±2 % maximum ..........................±2 % maximum

IP Rating .............................................. IP 40 ...........................................IP 40

1.52

(.06)

7.92 ± .38

(.312 ± .015)

19.05 ± .38

(.750 ± .015)

20.62 ± .79

(.812 ± .031)

ADD .75 (19 MM) FOR ADDITIONAL CUPS.

OPTIONAL ANTIROTATION LUG

(-91) 1.42 X .50 ON 7.4 RADIUS

(.056 X .02)

(.29)

LENGTH 1.27 FROM MOUNTING SURFACE.

1.6

(SUGGESTED PANEL HOLE

DIA.)

(.063)

30 °

±5°

6.35

(.25)

Mechanical Characteristics

Stop Strength.................................................................................................53 N-cm (75 oz.-in.) min.

Mechanical Angle ................................................. 1080 ° +10 °, -0 ° (3543); 1800 ° +10 °, -0 ° (3545)

Torque (Starting & Running) .....................................................................0.35 N-cm (0.5 oz.-in.) max.

Mounting .............................................................................................. 170-200 N-cm (15-18 lb.-in.)

Shaft Runout.................................................................................................0.08 mm (0.003 in.) T.I.R.

Lateral Runout ..............................................................................................0.13 mm (0.005 in.) T.I.R.

Shaft End Play ..............................................................................................0.25 mm (0.010 in.) T.I.R.

Shaft Radial Play ..........................................................................................0.08 mm (0.003 in.) T.I.R.

Pilot Diameter Runout ..................................................................................0.08 mm (0.003 in.) T.I.R.

Backlash ....................................................................................................................... 1.0 ° maximum

Weight .................................................................................................................Approximately 21 gm

Terminals ......................................................................................................... Gold-plated solder lugs

Soldering Condition

Manual Soldering........................................................... 96.5Sn/3.0Ag/0.5Cu solid wire or no-clean

rosin cored wire; 370 °C (700 °F) max. for 3 seconds

Wave Soldering .................... 96.5Sn/3.0Ag/0.5Cu solder with no-clean ﬂux; 260 °C (500 °F) max.

for 5 seconds

Wash processes ..................................................................................................Not recommended

Marking ................................................. Manufacturer’s name and part number, resistance value and

tolerance, linearity tolerance, wiring diagram, and date code.

Ganging (Multiple Section Pots.) ............................................................................... 2 cups maximum

Hardware .................................................... One lockwasher (H-37-2) and one mounting nut (H-38-2)

is shipped with each potentiometer.

At room ambient: +25 °C nominal and 50 % relative humidity nominal, except as noted.

Consult manufacturer for complete speciﬁcation details.

15.88

R MAX.

(.625)

12.45

(.49)

22.23 ± .38

(.875 ± .015)

MTG. FACE

15.88 DIA. MIN.

(.625)

TOLERANCES: EXCEPT WHERE NOTED

.25

.13

DECIMALS: .XX ±

.XXX ±

(.010),

(.005)

FRACTIONS: ±1/64

DIMENSIONS:

(IN.)

CCW

WIPER

CLOCKWISE

Recommended Part Numbers

Part Number

Resistance (Ω)

Resolution (%)

Part Number

Resistance (Ω)

Resolution (%)

3543S-1-102L

3543S-1-202L

3543S-1-502L

3543S-1-103L

1,000

2,000

5,000

10,000

.077

.062

.047

.040

3545S-1-102L

3545S-1-202L

3545S-1-502L

3545S-1-103L

1,000

2,000

5,000

10,000

.043

.044

.038

.029

BOLDFACE

LISTINGS ARE IN STOCK AND READILY

AVAILABLE THROUGH DISTRIBUTION.

FOR SERVO MOUNT VERSION AND OTHER OPTIONS

CONSULT FACTORY.

ROHS IDENTIFIER:

L = COMPLIANT

*RoHS Directive 2002/95/EC Jan 27, 2003 including Annex.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.
