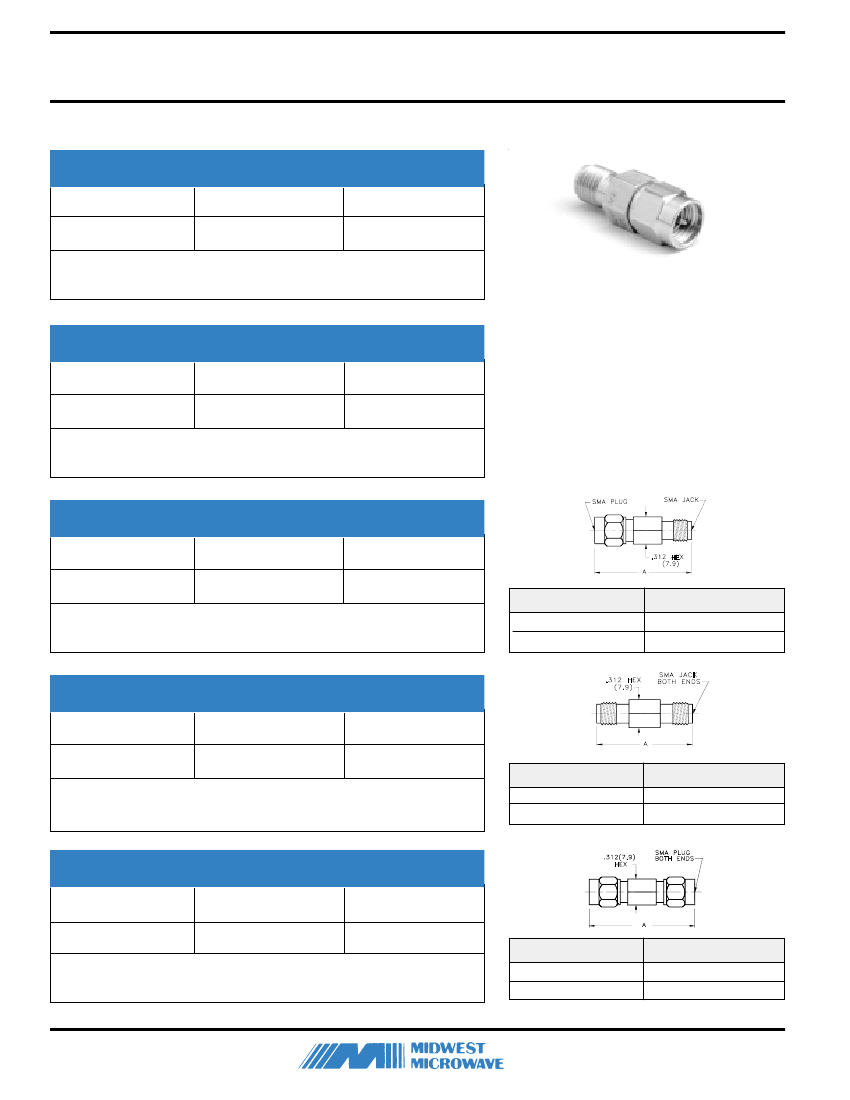

Attenuators
Hex Body Types - High Performance
DC - 26.5 GHz
Male/Female
ATT-0298-XX-HEX-02
SMA Subminiature "MINIPAD"
®
Hex Body 298HEX Series
Female/Female
ATT-298F-XX-HEX-02
Model Numbers
Male/Male
ATT-298M-XX-HEX-02
HIGH PERFORMANCE
XX = Attenuation Value: Select 01-30dB in 1dB increments
(.5 dB increments available)
DC - 18.0 GHz
Male/Female
Hex Body 290HEX Series
Female/Female
ATT-290F-XX-HEX-02
Model Numbers
Male/Male
ATT-290M-XX-HEX-02
SPECIFICATIONS - HIGH PERFORMANCE
Attenuation Accuracy
:
1-6 dB
± 0.3 dB
7-20 dB ± 0.5 dB
21-30 dB ± 1.0 dB
ATT-0290-XX-HEX-02
VSWR
: 1.07+.015(f GHz) max
Power
:
2 Watts Average @ +25
o
C derated linearly
HIGH PERFORMANCE
XX = Attenuation Value: Select 01-30dB in 1dB increments
(.5 dB increments available)
to .5 watts @ +125
o
C and 200 Watts peak
Operating Temperature Range
:
-65
o
C to +125
o
C
Finish:
Passivated Stainless Steel
DC - 12.4 GHz
Male/Female
Hex Body 291HEX Series Model Numbers
Female/Female
ATT-291F-XX-HEX-02
Male/Male
ATT-291M-XX-HEX-02
Attenuation Value
Length A
0.86
1.02
1-12 dB
13-30 dB
ATT-0291-XX-HEX-02
HIGH PERFORMANCE
XX = Attenuation Value: Select 01-30dB in 1dB increments
(.5 dB increments available)
DC - 8.0 GHz
Male/Female
Hex Body 292HEX Series
Female/Female
ATT-292F-XX-HEX-02
Model Numbers
Male/Male
ATT-292M-XX-HEX-02
Attenuation Value
1-12 dB
13-30 dB
Length A
0.90
1.03
ATT-0292-XX-HEX-02
HIGH PERFORMANCE
XX = Attenuation Value: Select 01-30dB in 1dB increments
(.5 dB increments available)
DC - 2.0 GHz
Male/Female
Hex Body 294HEX Series
Female/Female
ATT-294F-XX-HEX-02
Model Numbers
Male/Male
ATT-294M-XX-HEX-02
Attenuation Value
Length A
0.98
1.12
1-12 dB
13-30 dB
ATT-0294-XX-HEX-02
HIGH PERFORMANCE
XX = Attenuation Value: Select 01-30dB in 1dB increments
(.5 dB increments available)
Note: * U.S. Patent No. 3,824,506 applies to all " Fixed Attenuators.
