UCR03EVPFLR270 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> UCR03EVPFLR270

UCR03EVPFLR270: DescriptionCurrent Sense Resistors - SMD 0603 0.27ohm 1% CS-Thk Film AEC-Q200; CategoryPassive components; File Size544KB，8 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

UCR03EVPFLR270 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UCR03EVPFLR270	-	-	View	Buy Now

UCR03EVPFLR270 Overview

Current Sense Resistors - SMD 0603 0.27ohm 1% CS-Thk Film AEC-Q200

UCR03EVPFLR270 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	ROHM Semiconductor
Product Category	Current Sense Resistors - SMD
RoHS	Details
Tolerance	1 %
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 155 C
Case Code - in	0603
Case Code - mm	1608
Termination	2 Terminal
Qualification	AEC-Q200
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Application	Current Sense
Height	0.5 mm
Length	1.6 mm
Operating Temperature Range	- 55 C to + 155 C
Package / Case	0603 (1608 metric)
Product	Thick Film Resistors SMD
Termination Style	SMD/SMT
Type	AEC-Q200
Width	0.8 mm
Mounting Style	PCB Mount
Factory Pack Quantity	5000
Unit Weight	0.000071 oz

Preview

Download Datasheet

View All

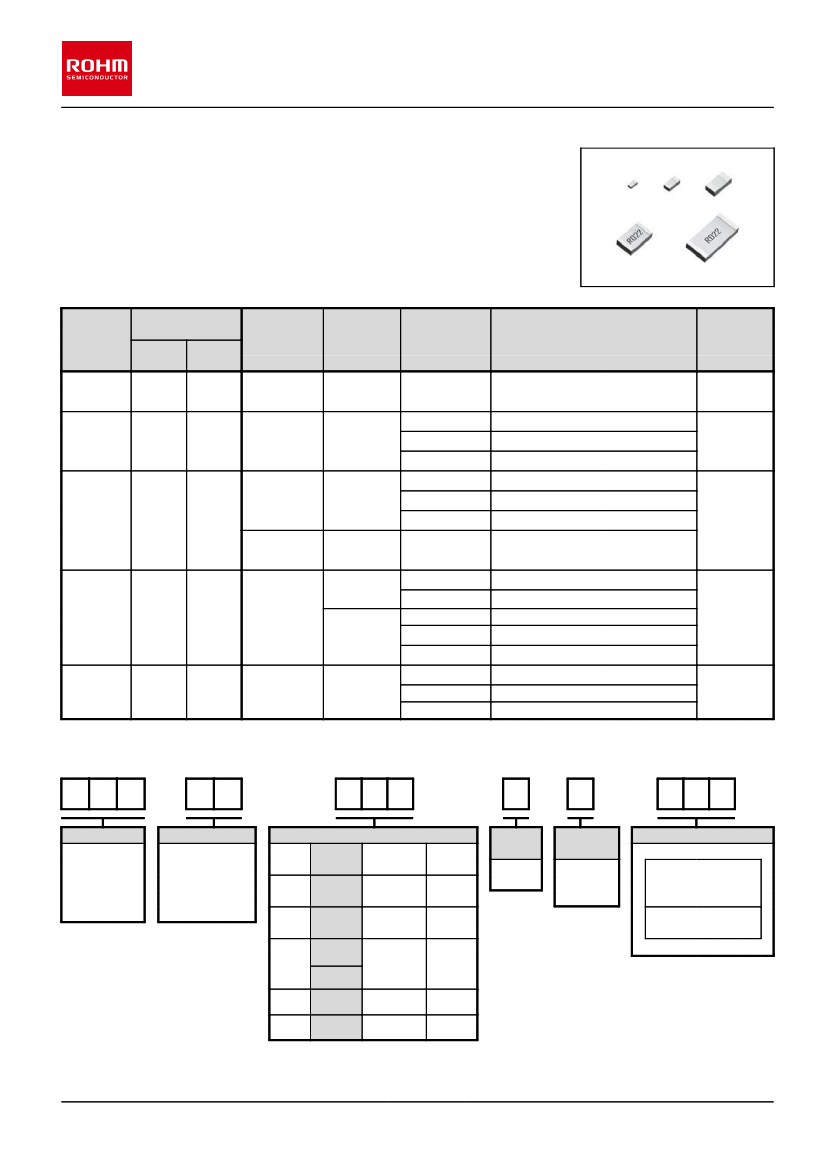

Thick film low ohmic chip resistors for current detection

UCR series

●

Datasheet

Features

1)Very-low ohmic resistance from 11mΩ is in lineup by thick-film resistive element.

2)Resistive element is located at bottom side, which reduces the resistance shift

during mounting process.

3)ROHM's unique structure achieved improvement of heat.

4)ROHM resistors have obtained ISO9001 / ISO / TS16949 certification.

5)Corresponds to AEC-Q200. But UCR006 is preraring.

UCR03 (under 100mΩ or less) are unsupprted.

●

Products list

Size

Part No.

(mm)

(inch)

0201

Rated Power

(70

℃

)

(W)

0.1

Resistance

tolerance

(%)

F ( ±1% )

J ( ±5% )

F ( ±1% )

J ( ±5% )

F ( ±1% )

J ( ±5% )

F ( ±1% )

J ( ±5% )

F ( ±1% )

emperature

coefficient

(ppm /

℃

)

+300

300

250

200

250

200

150

250

150

250±200

250

150

350

200

150

0.100

≦

R<1

0.068

≦

R<0.100

0.100

≦

R<0.220

0.220

≦

0.910

0.020

≦

R<0.050

0.050

≦

R<0.100

0.100

≦

R<0.200

0.220

≦

0.910

0.020

≦

0.047

＜

0.1

0.011

≦

＜

0.020

≦

0.047

＜

0.1

0.011

≦

R<0.020

0.020

≦

0.039

＜

0.1

Resistance range

(Ω)

(E24series)

Operating

temperature

range

(

℃

)

-55

+155

UCR006

UCR01

0603

1005

0402

0.125

-55

+155

0.25

UCR03

1608

0603

0.20

-55

+155

UCR10

2012

0805

0.33

J ( ±5% )

-55

+155

UCR18

3216

1206

0.5

F ( ±1% )

J ( ±5% )

-55

+155

* Design and specifications are subject to change without notice.

Carefully check the specification sheet supplied with the product before using or ordering it.

●

Part Number Description

UCR

Part No.

1 0

Size (mm [inch])

006 (0603 [0201])

01 (1005 [0402])

03 (1608 [0603])

10 (2012 [0805])

18 (3216 [1206])

Part No.

UCR006

UCR01

EVH

Packaging specifications code

Code

YVP

MVP

EWP

UCR03

(20mΩ

47mΩ)

Resistance

tolerance

F ( ±1% )

J ( ±5% )

Special

part code

：

0.011

0.091Ω

：

0.1Ω

R1 0

Nominal resistance

Resistance code,3 or 4 digits.

Resistance

tolerance

Specialcode

Resistance

code

：

UCR

(Thick film low

ohmic chip

resistors)

Packaging

Quantity

specifications / Reel

Paper tape

( 2mm Pitch)

Paper tape

( 2mm Pitch)

Paper tape

( 4mm Pitch)

Paper tape

( 4mm Pitch)

Paper tape

( 4mm Pitch)

15,000

10,000

FS,FL,JS

4 digits

3 digits

5,000

EVP

(51mΩ

910mΩ)

UCR10

UCR18

EVH

www.rohm.com

1/4

2015.01 - Rev.E

Datasheet
