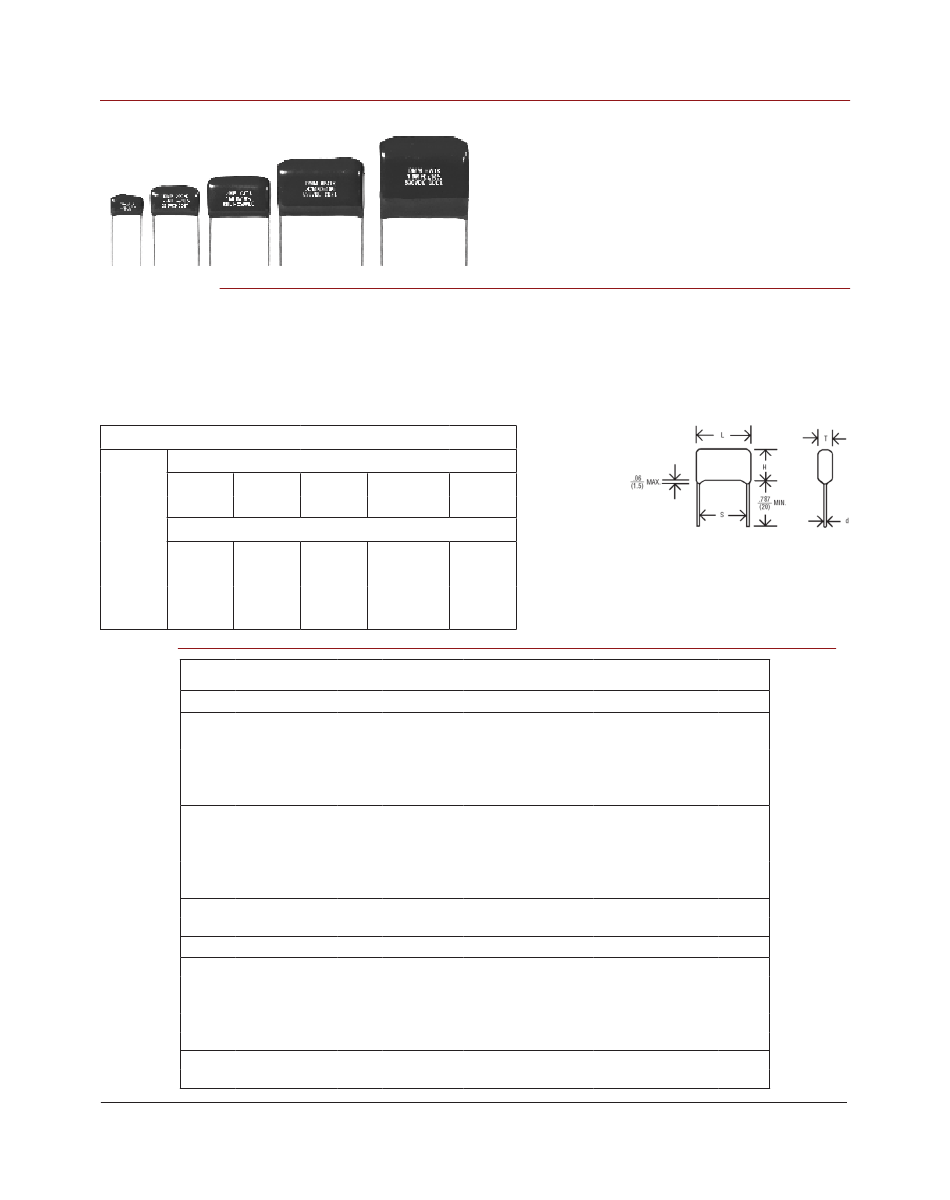

Type DMM
Polyester Film Capacitors
Metallized
Radial Leads
DC Applications
Self Healing
Type DMM
radial-leaded, metallized polyester capacitors
have non-inductive windings and multi-layered epoxy
resin enhancing performace characteristics and humidity
resistance. Self healing characteristics prevent permanent
shorting due to high-voltage transients. When long life
and performance stability are critical
Type DMM
is the
ideal solution.
Specifications
Voltage Range:
100-630 Vdc
Capacitance Range:
.01-10 µF
Capacitance Tolerance:
±10% (K) standard
±5% (J) optional
Operating Temperature Range:
-55 °C to 125 °C*
Pulse Capability
Body Length
Rated
Volts
100
250
400
630
0.55
20
28
46
72
0.71
12
17
28
43
0.94
8
12
15
28
1.024-1.220
6
8
14
21
7
12
17
*Full-rated voltage at 85 °C–Derate linearly to 50%-rated voltage at 125 °C
Dielectric Strength:
150% (1 minute)
Dissipation Factor:
1% Max. (25 °C, 1 kHz)
Insulation Resistance:
5,000 M
Ω
x µF
10,000 M
Ω
Min.
Life Test:
1,000 Hours at 85 °C at
125% Rated Voltage
NOTE:
Other capacitance values,
sizes and performance specifications
are available. Contact us.
1.38
dV/dt—volts per microsecond, maximum
Ratings
Cap.
(µF)
0.15
0.22
0.33
0.47
0.68
1.00
1.50
2.20
3.30
4.70
6.80
10.00
0.068
0.10
0.15
0.22
0.33
0.47
0.68
Catalog
Part Number
DMM1P15K–F
DMM1P22K–F
DMM1P33K–F
DMM1P47K–F
DMM1P68K–F
DMM1W1K–F
DMM1W1P5K–F
DMM1W2P2K–F
DMM1W3P3K–F
DMM1W4P7K–F
DMM1W6P8K–F
DMM1W10K–F
DMM2S68K–F
DMM2P1K–F
DMM2P15K–F
DMM2P22K–F
DMM2P33K–F
DMM2P47K–F
DMM2P68K–F
RoHS Compliant
d
Inches (mm)
0.024
0.024
0.024
0.024
0.024
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.024
0.024
0.024
0.024
0.024
0.032
0.032
(0.6)
(0.6)
(0.6)
(0.6)
(0.6)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.6)
(0.6)
(0.6)
(0.6)
(0.6)
(0.8)
(0.8)
T Max.
H Max.
L Max.
S ±.06 (±1.5)
Inches (mm) Inches (mm) Inches (mm) Inches (mm)
100 Vdc
0.236 (6.0) 0.394 (10.0) 0.551 (14.0) 0.394 (10.0)
0.236 (6.0) 0.414 (10.5) 0.551 (14.0) 0.394 (10.0)
0.236 (6.0) 0.414 (10.5) 0.709 (18.0) 0.591 (15.0)
0.236 (6.0) 0.473 (12.0) 0.709 (18.0) 0.591 (15.0)
0.276 (7.0) 0.551 (14.0) 0.709 (18.0) 0.591 (15.0)
0.354 (9.0) 0.591 (15.0) 0.709 (18.0) 0.591 (15.0)
0.354 (9.0) 0.670 (17.0) 1.024 (26.0) 0.886 (22.5)
0.433 (11.0) 0.788 (20.0) 1.024 (26.0) 0.886 (22.5)
0.453 (11.5) 0.788 (20.0) 1.024 (26.0) 0.886 (22.5)
0.512 (13.0) 0.906 (23.0) 1.221 (31.0) 1.083 (27.5)
0.630 (16.0) 1.024 (26.0) 1.221 (31.0) 1.083 (27.5)
0.709 (18.0) 1.221 (31.0) 1.221 (31.0) 1.083 (27.5)
250 Vdc
0.236 (6.0) 0.394 (10.0) 0.551 (14.0) 0.390 (10.0)
0.276 (7.0) 0.394 (10.0) 0.551 (14.0) 0.390 (10.0)
0.276 (7.0) 0.433 (11.0) 0.709 (18.0) 0.590 (15.0)
0.276 (7.0) 0.473 (12.0) 0.709 (18.0) 0.590 (15.0)
0.276 (7.0) 0.512 (13.0) 0.709 (18.0) 0.590 (15.0)
0.315 (8.0) 0.591 (15.0) 1.024 (26.0) 0.886 (22.5)
0.354 (9.0) 0.610 (15.5) 1.024 (26.0) 0.886 (22.5)
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02740
•
Phone: (508)996-8561
•
Fax: (508)996-3830 www.cde.com
Type DMM
Polyester Film Capacitors
Notice and Disclaimer:
All product drawings, descriptions, specifications, statements, information and
data (collectively, the “Information”) in this datasheet or other publication are subject to change. The
customer is responsible for checking, confirming and verifying the extent to which the Information con-
tained in this datasheet or other publication is applicable to an order at the time the order is placed. All
Information given herein is believed to be accurate and reliable, but it is presented without any guaran-
tee, warranty, representation or responsibility of any kind, expressed or implied. Statements of suitability
for certain applications are based on the knowledge that the Cornell Dubilier company providing such
statements (“Cornell Dubilier”) has of operating conditions that such Cornell Dubilier company regards
as typical for such applications, but are not intended to constitute any guarantee, warranty or representa-
tion regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee,
warranty or representation concerning the suitability for a specific customer application, use, storage,
transportation, or operating environment. The Information is intended for use only by customers who
have the requisite experience and capability to determine the correct products for their application. Any
technical advice inferred from this Information or otherwise provided by Cornell Dubilier with reference
to the use of any Cornell Dubilier products is given gratis (unless otherwise specified by Cornell Dubilier),
and Cornell Dubilier assumes no obligation or liability for the advice given or results obtained. Although
Cornell Dubilier strives to apply the most stringent quality and safety standards regarding the design
and manufacturing of its products, in light of the current state of the art, isolated component failures may
still occur. Accordingly, customer applications which require a high degree of reliability or safety should
employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies
or other appropriate protective measures) in order to ensure that the failure of an electrical component
does not result in a risk of personal injury or property damage. Although all product-related warnings,
cautions and notes must be observed, the customer should not assume that all safety measures are indi-
cated in such warnings, cautions and notes, or that other safety measures may not be required.
m
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02740
•
Phone: (508)996-8561
•
Fax: (508)996-3830 www.cde.com
