ASSV1-24.000MHZ-EC-C1 datasheet, PDF

Datasheet> All Categories > Passive components> ASSV1-24.000MHZ-EC-C1

ASSV1-24.000MHZ-EC-C1: DescriptionStandard Clock Oscillators 3.3V 24 MHZ; CategoryPassive components; File Size718KB，3 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric Compare View All

ASSV1-24.000MHZ-EC-C1 Overview

Standard Clock Oscillators 3.3V 24 MHZ

ASSV1-24.000MHZ-EC-C1 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Abracon
Product Category	Standard Clock Oscillators
RoHS	Details
Frequency	24 MHz
Frequency Stability	50 PPM
Load Capacitance	15 pF
Operating Supply Voltage	5 V
Supply Voltage - Min	3.135 V
Supply Voltage - Max	3.465 V
Termination Style	SMD/SMT
Package / Case	7.5 mm x 5.4 mm
Minimum Operating Temperature	- 20 C
Maximum Operating Temperature	+ 70 C
Length	7.43 mm
Width	5.34 mm
Height	2.6 mm
Packaging	Bulk
Current Rating	20 mA
Type	Crystal Oscillator
Duty Cycle - Max	60 %
Mounting Style	SMD/SMT
Factory Pack Quantity	100

Preview

Download Datasheet

View All

TTL/CMOS SMD LOW EMI SPREAD

SPECTRUM CRYSTAL CLOCK OSCILLATORS

ASSL1

ASSV1

Pb in glass exemption 7 (c)- I per

RoHS II 2011/65/EU Annex

RoHS

Compliant

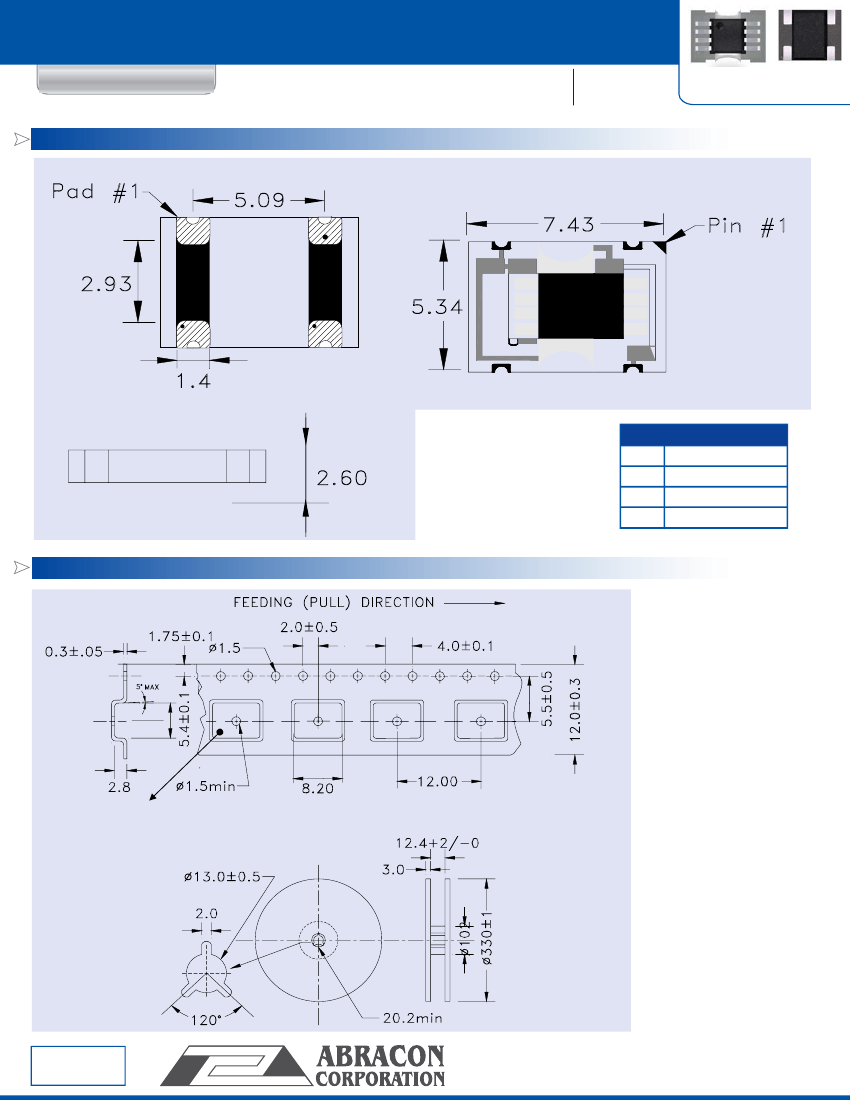

7.43 x 5.34 x 2.6mm

| | | | | | | | | | | | | | |

FEATURES:

• Integrated spread spectrum technology

• Standard TTL or CMOS output

• Meets jitter requirements for all major CISC, RISC & DSP processors

• 8 MHz to 128 MHz output frequency range

• Modulated clock reduces electromagnetic emissions up to 20dB

• Reduces engineering and compliance costs; Faster release time to market

APPLICATIONS:

• Printers, Digital Copy Machines, Scanners,

Modems, Navigation Equipment,

Automotive,

Audio,

Medical Electronics, Telecommunications,

Aerospace

Drop-in

Replacement for

Industry Standard

7 x 5 mm

Package!

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Operating Temperature

Storage Temperature

ASSL1 or ASSV1 Series

8MHz to 128MHz

0°C to + 70°C (see options)

- 60°C to + 150°C

Frequency Stability vs. Temp. ± 100 ppm (see options)

ASSL1 (Vdd) = 5.0V ±5% ; ASSV1 (Vdd) = 3.3V ±5%

Supply voltage

Supply Current (Idd)

30mA

5ns max., 3.5ns typ.

Rise time / Fall time

Load Capacitance CL

Output Voltage (VOL)

(VOH)

Rise Time (Tr)

Fall Time (Tf)

Duty Cycle

Start-up Time

Aging

Bandwidth Accuracy

Cycle to Cycle Jitter

10pF TTL, 15pF typ.

VOL1 @ 4mA = 0.4V max. ; VOL2 @ 10mA = 1.2V max.

VOH1 @ 4mA = 2.4V min. ; VOH2 @ 6mA = 2.0V min.

2nsec min, 5nsec max

2nsec min, 4.4nsec max

40% to 60%, 50% typ.

10ms max., 3ms typ.

±5ppm per year

±10% max.

8MHz = 450psec ; 16MHz = 400psec ; 32MHz = 380MHz

psec ; 64MHz = 380psec ; 128MHz = 380psec

Absolute Maximum Ratings

Supply Voltage (Vdd)

Operating Temperature (TOPR)

Storage Temperature (TSTO)

Junction Temperature (TJUN)

3.0VDC min. to 6.0VDC max.

-40ºC to 85ºC

-65ºC to 150ºC

+150ºC

Revised: 1.04.08

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED
