Data and signal line chokes
SIMDAD 1812, common-mode chokes
42 V AC/80 V DC, 11 … 100 H, 150 … 300 mA
Series/Type:
Date:
B82789C0/S0
June 2016
a~í~=pÜÉÉí
EPCOS AG 2016. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS’ prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
Data and signal line chokes
SIMDAD 1812, common-mode chokes
Rated voltage 42 V AC/80 V DC
Rated inductance 11 ... 100
μH
Rated current 150 ... 300 mA
Construction
■
■
■
■
■
■
B82789C0/S0
Current-compensated double choke
Ferrite I core
Winding: enamel copper wire
Winding welded to terminals
Bifilar winding (B82789C0…)
Sector winding (B82789S0…)
Features
■
■
■
■
■
Temperature range up to +150 °C (B82789C0/S0*H)
Suitable for lead-free reflow soldering as referenced in JEDEC J-STD 020D
For gold-plated terminals conductive adhesion possible
Qualified to AEC-Q200
RoHS-compatible
Function
■
B82789C0:
Suppression of asymmetrical interference coupled in on lines,
whereas data signals up to some MHz can pass unaffectedly.
■
B82789S0:
Suppression of asymmetrical (by L
R
) and symmetrical interference (by L
stray
)
coupled in on lines. The high-frequency portions of the symmetrical data
signal are decreased so far that EMC problems can be significantly reduced.
Applications
■
Automotive applications, e.g. CAN and FlexRay bus
■
Industrial field bus systems
■
Line cards for telecom
Terminals
Tinned terminals (B82789C0/S0*002)
■
Base material CuSn6
■
Layer composition Ni, Ag, Sn
1)
■
Lead-free tinned
Gold-plated terminals (B82789C0/S0*001)
■
Base material CuSn6
■
Layer composition Ni, Ag, Au
■
Gold plated
1) Ni-barrier-plated terminals (NiSn) on request (B82789C0/S0*H052).
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
06/16
Data and signal line chokes
SIMDAD 1812, common-mode chokes
Marking
■
Marking on component:
B82789C0/S0
Manufacturer, bifilar or sector winding (coded),
L value (in nH; for version B82789C0/S0*H052 underlined),
date of manufacture (YWWD), two last digits of production order
■
Minimum data on reel:
Manufacturer, ordering code, L value (in nH), quantity, date of packing
Delivery mode and packing unit
■
12-mm blister tape, wound on 330-mm
■
Packing unit: 2500 pcs./reel
reel
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
06/16
Data and signal line chokes
SIMDAD 1812, common-mode chokes

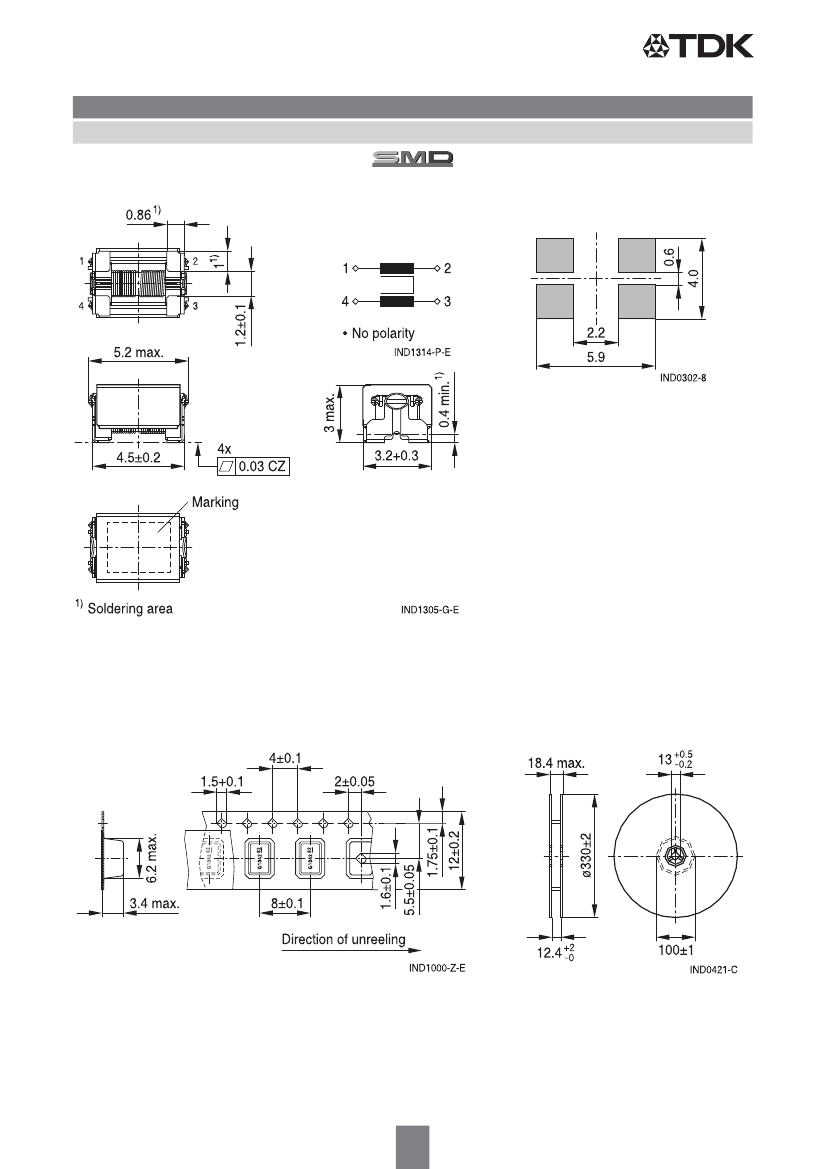

Dimensional drawing and pin configuration
B82789C0/S0
Layout recommendation
Dimensions in mm
Taping and packing
Blister tape
Reel
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
06/16
Data and signal line chokes
SIMDAD 1812, common-mode chokes
Technical data and measuring conditions
Rated voltage V
R
Test voltage V
test
Rated temperature T
R
Rated current I
R
Rated inductance L
R
Inductance tolerance
Inductance decrease L/L
0
Stray inductance L
stray,typ
DC resistance R
max
Solderability (lead-free)
42 V AC (50/60 Hz) / 80 V DC
250 V DC, 2 s (line/line)
+85 °C / +110 °C
Referred to 50 Hz and rated temperature
B82789C0/S0
Measured with Agilent 4284A at 100 kHz, 0.1 mA, +20 °C
Inductance is specified per winding.
–30/+50% at +20 °C
Common mode < 10% at DC magnetic bias with I
R
, +20 °C
Measured with Agilent 4284A at 100 kHz, 5 mA, +20 °C,
typical values
Measured at +20 °C, specified per winding
Dip and look method Sn95.5Ag3.8Cu0.7: +(245 5) °C, (3 0.3) s
Wetting of soldering area 90%
(based on IEC 60068-2-58)
+260 °C, 40 s as referenced in JEDEC J-STD 020D
55/125/56 (B82789*N)
55/150/56 (B82789*H)
(to IEC 60068-1)
Mounted: –55 °C … +125 °C (B82789C0/S0*N)
–55 °C … +150 °C (B82789C0/S0*H)
Packaged: –25 °C … +40 °C, 75% RH
Approx. 0.16 g
Resistance to soldering heat
Climatic category
Storage conditions
Weight
Please read
Cautions and warnings
and
Important notes
at the end of this document.
