Between open contacts 1,000 Vrms for 1min. (Detection current: 10mA)
5,000 Vrms for 1min. (Detection current: 10mA)
Max. 55C
131F
[with nominal coil voltage and at 16A contact carrying current (resistance method) at 20°C
68F]
10,000 V (Initial)
Max. 15ms (excluding contact bounce time)
Max. 5ms (excluding contact bounce time, without diode)
Min. 100 m/s
2
{10G} (Half-wave pulse of sine wave: 11ms; detection time: 10s.)
Min. 1,000 m/s
2
{100G} (Half-wave pulse of sine wave: 6ms.)
10 to 55 Hz at double amplitude of 1.5mm (Detection time: 10s.)
(Only the N.C. side of 1 Form C is 0.8mm)
10 to 55 Hz at double amplitude of 1.5mm
Min. 10
7
N.O.: Min. 10
5
, N.C.: Min. 510
4
Ambient temperature: –40C to +85C
–40F to +185F
(Class B)
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
20 cpm (at nominal switching capacity)
Approx. 12 g
.42 oz
Temperature rise (at 20C
68F)
Surge breakdown voltage
*2
(Between contacts and coil)
Operate time (at nominal voltage) (at 20C
68F)
Release time (at nominal voltage) (at 20C
68F)
Shock resistance
Functional
Destructive
Functional
Destructive
Mechanical
characteristics
Vibration resistance
Mechanical (at 180 cpm)
Electrical (at 20 cpm)
Expected life
Conditions
Unit weight
Conditions for operation, transport and storage
*3
,
*4
Max. operating speed
*1This value can change due to the switching frequency, environmental conditions, and desired reliability level, therefore it is recommended to check this with the actual load.
*2Wave is standard shock voltage of
1.2
50s according to JEC-212-1981
*3Class F type is ambient temperature 105°C
+221F.
*4The upper limit of the ambient temperature is the maximum temperature that can satisfy the coil temperature rise value. Refer to “6. Usage, Storage and Transport
Conditions“ in
AMBIENT ENVIRONMENT section in Relay Technical Information.
*Please note that some of the specifications listed above may not comply with overseas standards.
REFERENCE DATA
1. Max. switching power (AC resistive load)
2. Max. switching power (DC resistive load)
3. Coil temperature rise
Sample: ALZ11F12, 5pcs.
Measured portion: coil inside
Contact current: 0 A, 16 A
100
100
55
Temperature rise,
°C
0A
16A
Normal
temperature
Normal
temperature
85°C
85°C
105°C
105°C
50
45
40
35
30
25
Contact current, A
Contact current, A
10
16
10
1
1
1
10
30
100
440 1000
0
10
100
Contact voltage, V
20
0
100 105 110 115 120 125 130 135
Coil applied voltage, %V
Contact voltage, V
3
ds_61B15_en_lz: 140911D
LZ (ALZ)

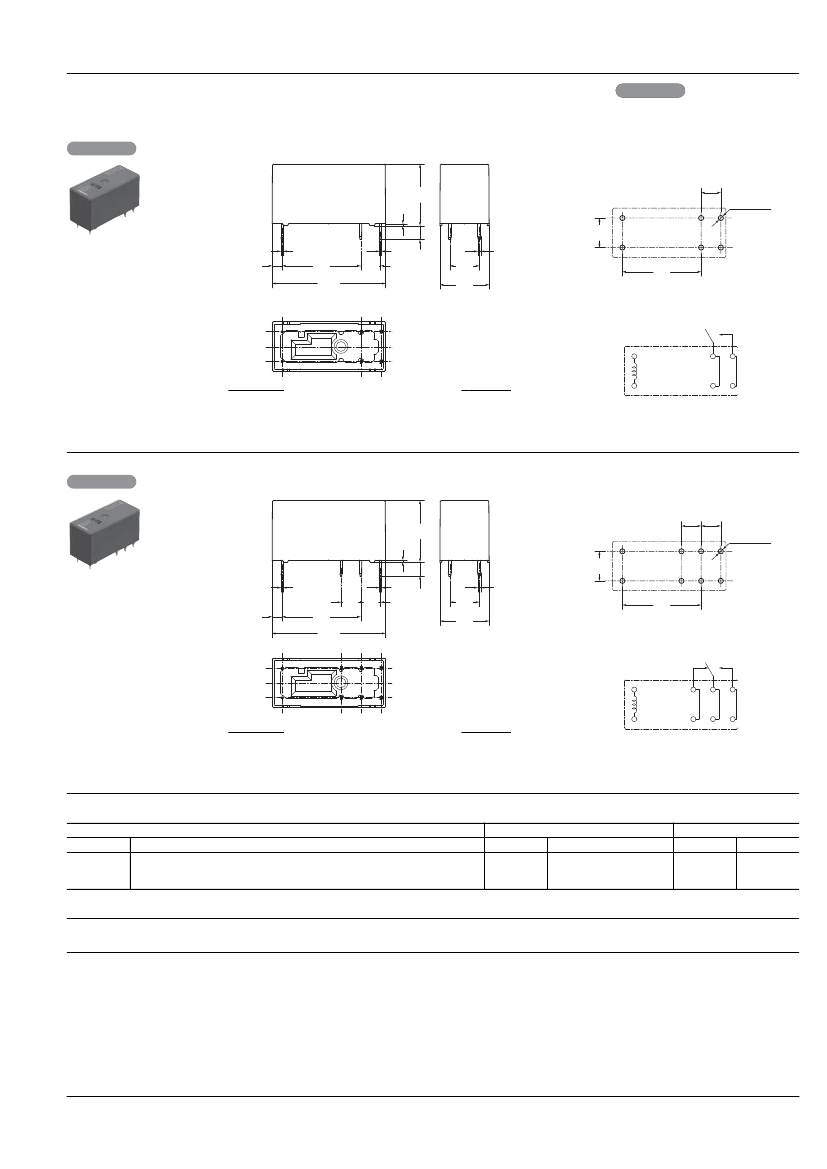

DIMENSIONS
(mm
inch)
1. 1 Form A type
CAD Data
PC board pattern
15.7
0.5
.618
.020
7.5
.295
2.5
.098
0.5
.020
20
.787
28.8
1.134
5
.197
0.5
.020
3.5
.138
7.5
.295
12.5
.492
0.8
.031
20
.787
5
.197
6-1.3 dia.
6-.051 dia.
CAD
Data
Download
CAD
Data
from our Web site.
Tolerance:
0.1
.004
Schematic (Bottom view)
Coil
Dimension:
Less than 1 mm.039inch:
Min. 1 mm.039inch less than 3 mm.118inch:
Min. 3 mm.118inch:
Tolerance
0.1.004
0.2.008
0.3.012
2. 1 Form C type
CAD Data
PC board pattern
15.7
0.5
.618
.020
7.5
.295
0.5
.020
2.5
.098
20
.787
28.8
1.134
5
5
.197 .197
0.5
.020
3.5
.138
7.5
.295
12.5
.492
0.8
.031
20
.787
5
5
.197 .197
8-1.3 dia.
8-.051 dia.
Tolerance:
0.1
.004
Schematic (Bottom view)
Coil
Dimension:
Less than 1 mm.039inch:
Min. 1 mm.039inch less than 3 mm.118inch:
Min. 3 mm.118inch:
Tolerance
0.1.004
0.2.008
0.3.012
SAFETY STANDARDS
File No.
E43149
UL/C-UL (Recognized)
Contact rating
16A 277V AC, 34.8LRA/7.2FLA/120V AC, 15LRA/3FLA/120V AC
