LFSPXO066336Bulk: DescriptionStandard Clock Oscillators 12MHz 3.3V 50ppm -10C +70C; CategoryPassive components; File Size1MB，1 Pages; ManufacturerIQD Frequency Products

Download Datasheet Parametric View All

LFSPXO066336Bulk Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO066336Bulk	-	-	View	Buy Now

LFSPXO066336Bulk Overview

Standard Clock Oscillators 12MHz 3.3V 50ppm -10C +70C

LFSPXO066336Bulk Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	IQD Frequency Products
Product Category	Standard Clock Oscillators
Frequency	12 MHz
Frequency Stability	50 PPM
Load Capacitance	50 pF
Operating Supply Voltage	3.3 V
Output Format	HCMOS
Termination Style	SMD/SMT
Package / Case	DIP-4
Minimum Operating Temperature	- 10 C
Maximum Operating Temperature	+ 70 C
Packaging	Bulk
Current Rating	10 mA
Type	Ceramic SMD Crystal Oscillator
Duty Cycle - Max	55 %
Factory Pack Quantity	25

Preview

Download Datasheet

View All

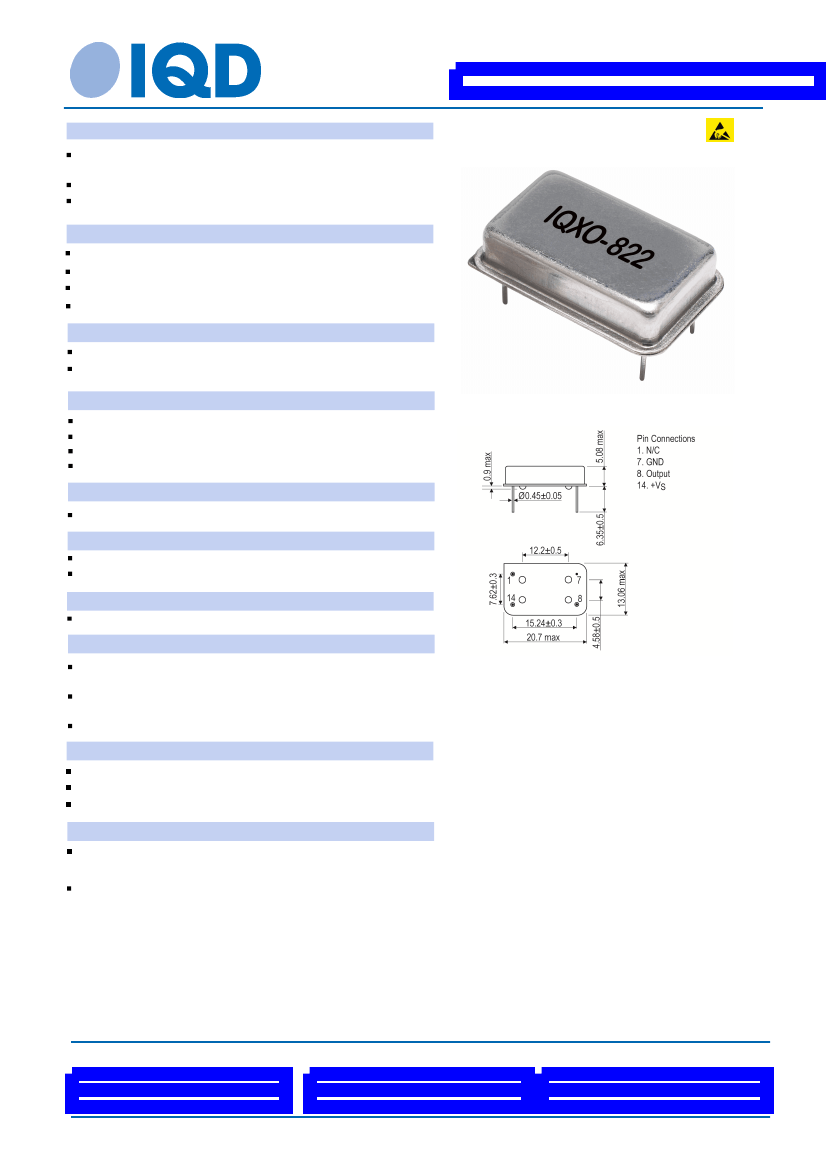

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO066336Bulk

Description

Simple package crystal oscillator in a hermetically sealed 14-pin

DIL package

Model

IQXO-822

Model Issue number

1

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

12.0MHz

±50.00ppm

-10.00 to 70.00°C

±5ppm max in 1st yr @ 25°C

Supply Voltage

Current Draw

Output Details

3.3V ±10%

10.00mA

Output Compatability

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

HCMOS

50pF

6.0ns max

45/55%

Outline (mm)

Start Up Time: 10ms max

Output Levels

VoH: 90% Vs min

VoL: 10% Vs max

Noise Parameters

Phase Jitter (12kHz-20MHz): 1ps rms max

Environmental Parameters

Shock: 1500G, 0.5ms, 5 times in each of 6 directions, along 3

mutually perpendicular planes

Vibration: 20G (20Hz-2000Hz), 1.5mm amplitude, cross-over

frequency 80Hz, in 3 mutually perpendicular planes

Storage Temperature Range: -55 to 125°C

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 25

Loose in Bulk Pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1
