87632-3006 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87632-3006

87632-3006: DescriptionPower to the Board Pwr Conn Rcpt R/A TH THole .76AuLF 36Ckt; CategoryThe connector The connector; File Size34KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

87632-3006 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87632-3006	-	-	View	Buy Now

87632-3006 Overview

Power to the Board Pwr Conn Rcpt R/A TH THole .76AuLF 36Ckt

87632-3006 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	TIN (100)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	87632
Mixed contacts	YES
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYETHYLENE
Termination type	SOLDER
Total number of contacts	36
UL Flammability Code	94V-0
Base Number Matches	1

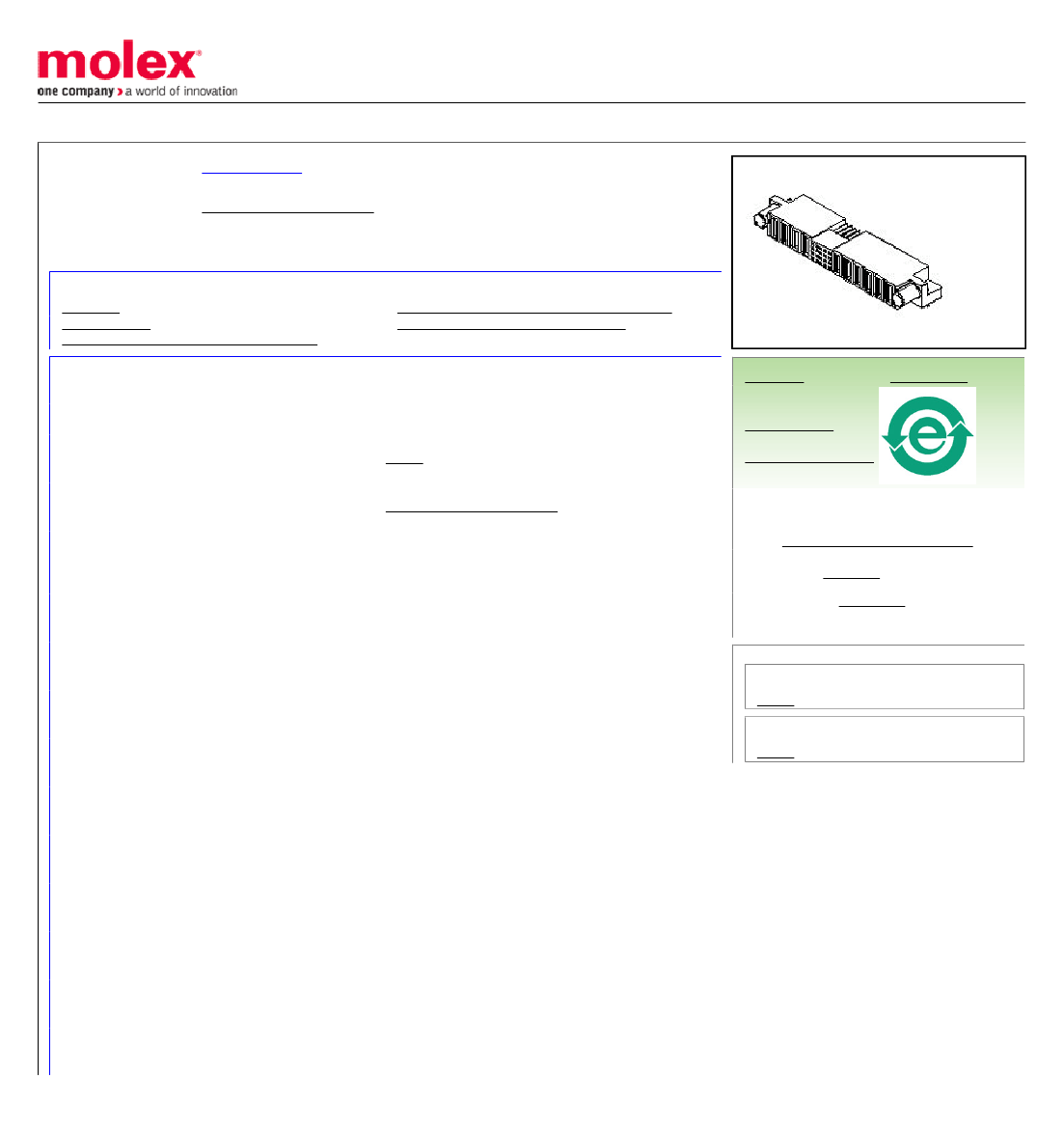

Preview

Download Datasheet

View All

This document was generated on 01/21/2013

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

87632-3006

Active

EXTreme PowerPlus™ (SSI)

6.35mm Pitch, Power, 2.54mm Pitch, Signal, EXTreme PowerPlus™ P-S-P

Receptacle, Through Hole, Right Angle, with Beveled Metal Pins, 36 Circuits, Power

Beta 2, Signal 32, Power Alpha 2, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-87631-006 (PDF)

Application Specification AS-87631-018 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Low-Halogen

China RoHS

Series

Agency Certification

E29179

General

Product Family

Series

Application

Comments

Overview

Product Name

UPC

PCB Receptacles

87632

Board-to-Board, Power

No Recessed Power Circuits

EXTreme PowerPlus™ (SSI)

EXTreme PowerPlus™

822348519620

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

(p)ower-(s)ignal Configuration

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

2p - 32s - 2p

Black

100

94V-0

Yes

Copper Alloy

Gold

Tin

High Temperature Thermoplastic

18.386/g

Right Angle

3.43mm

Yes

Tray

2.54mm, 6.35mm

0.762µm

2.540µm

Yes

-20°C to +105°C

Through Hole

Search Parts in this Series

87632Series

Mates With

87631 EXTreme PowerPlus™ P-S-P Header
