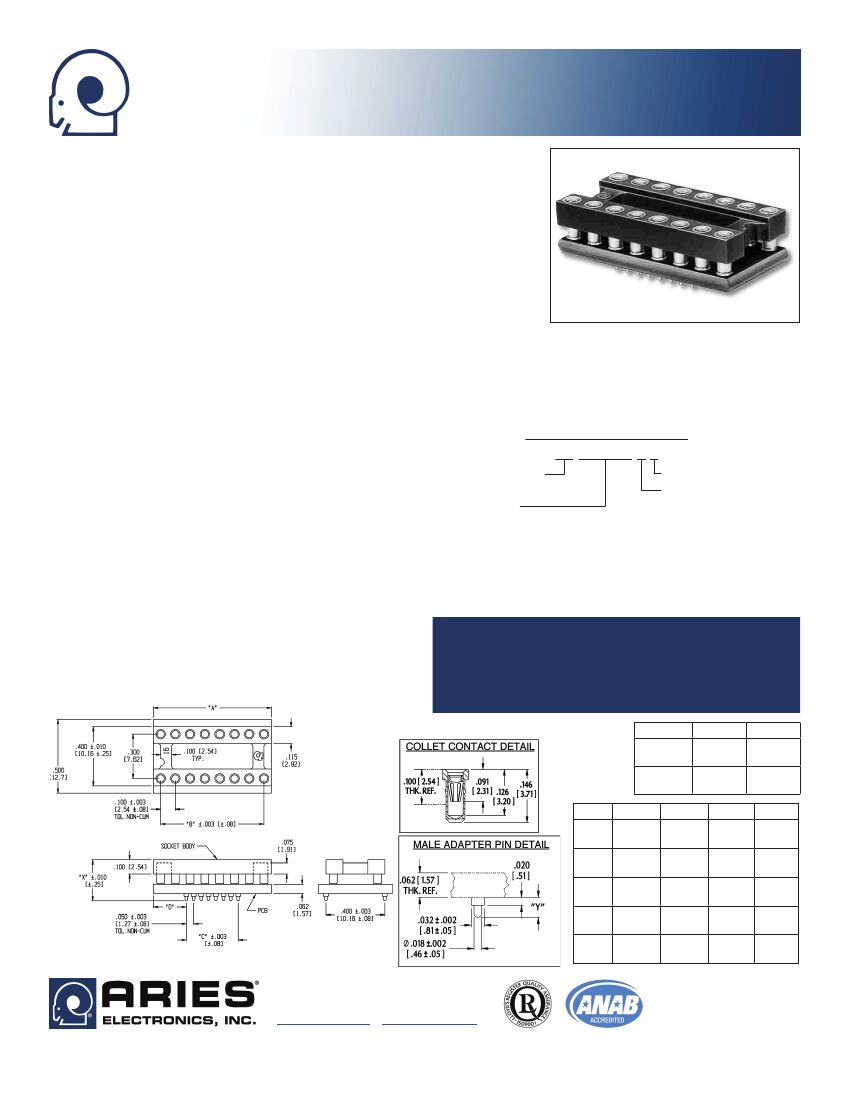

Series 354W00 DIP-to-SOWIC Adapter
FEATURES
• Convenient, cost-effective means of converting DIP-style packaging to SOWIC
PC board layouts.
GENERAL SPECIFICATIONS
• SOCKET BODY: black, UL 94V-0 glass-filled 4/6 Nylon 170°C continuous use
temp.
• PCB: FR-4, 0.062 [1.58] thick
• MALE ADAPTER PIN: Brass 360 1/2-hard per UNS C36000, ASTM-B16-85
• MALE ADAPTER PIN PLATING: 200µ [5.08µ] Sn/Pb 90/10 MIL-P-81728 over
100µ [2.54µ] Ni per QQ-N-290
• COLLET CONTACT PIN BODY: Brass 360 1/2-hard per UNS C36000, ASTM
CUSTOMIZATION:
In addition to the standard products shown
B16/B16M
on this page, Aries specializes in custom design and production.
• COLLET PIN PLATING: 10µ [0.25µ] Au per MIL-G-45204 over 100µ [2.54µ] Ni
Special materials, platings, sizes, and configurations can be
furnished, depending on the quantity.
NOTE:
Aries reserves the
per QQ-N-290
right to change product general specifications without notice.
• 4-FINGER COLLET CONTACT: BeCu per UNS C17200, ASTM B194-08
• CONTACT PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 over 50µ
[1.27µ] Ni per QQ-N-290
ORDERING INFORMATION
• CONTACT CURRENT RATING: 3 amps
XX-354W00-X 0
• OPERATING TEMPERATURE: 221°F [105°C]
Sn-plating
• INSERTION FORCE: 180g/pin, based on a 0.018 [0.46] dia. test lead
No. of Pins
Adapter Pin Option
14, 16, 20, 24
• WITHDRAWAL FORCE: 90g/pin, based on a 0.018 [0.46] dia. test
(see Suffix Table)
Series
lead
1 = Short Adapter Pin
• NORMAL FORCE: 140g/pin, based on a 0.018 [0.46] dia. test lead
2 = Long Adapter Pin
• SOCKET ACCEPTS LEADS: 0.015-0.025 [0.38-0.64] in dia., 0.100-
0.125 [2.54-3.18] long
MOUNTING CONSIDERATIONS
• SUGGESTED
PCB HOLE SIZE: 0.028 ±0.002 [0.71 ±0.05] dia.
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
P/N Suffix
-10
-20
# Pins
14
16
18
20
24
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
A
0.700
[17.78]
0.800
[20.32]
0.900
[22.86]
1.000
[25.40]
1.200
[30.48]
B
0.600
[15.24]
0.700
[17.78]
0.800
[20.32]
0.900
[22.86]
1.100
[27.94]
Dim. X
0.265
[6.73]
0.325
[8.26]
C
0.300
[7.62]
0.350
[8.89]
0.400
[10.16]
0.450
[11.43]
0.550
[13.91]
Dim. Y
0.050
[1.27]
0.110
[2.79]
D
0.200
[5.08]
0.225
[5.72]
0.250
[6.35]
0.275
[6.99]
0.325
[8.26]
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
18073
Rev. 1.2
