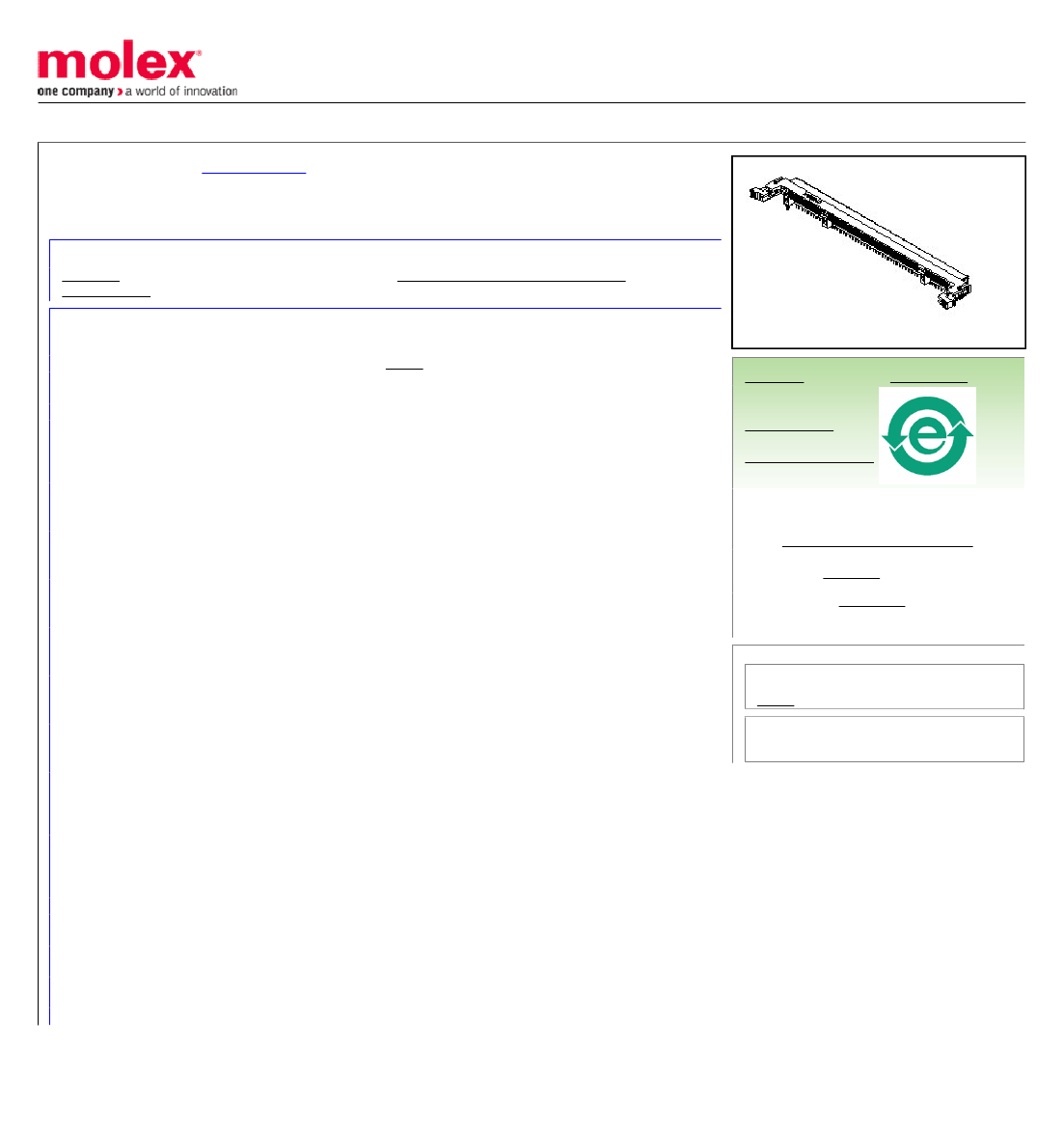

This document was generated on 10/14/2011
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0876450097
Active
1.27mm (.050") Pitch DIMM 8-Byte Socket, Right Angle, Multi-Key, with Beveled Metal
Pins and Plastic Pegs, 0.38µm (15µ") Gold (Au) Plating, 200 Circuits, Lead-Free
Documents:
3D Model
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Component Type
JEDEC Outline
Product Name
Memory Module Sockets
87645
Memory Module
MO-172
DIMM
Series
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Low-Halogen
China RoHS
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Entry Angle
Function Key
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Plating min - Mating
Plating min - Termination
Temperature Range - Operating
Termination Interface: Style
200
Black, Natural
25
90° Angle (Side Entry)
Center
Yes
Brass, High Performance Alloy (HPA)
Gold
Tin
High Temperature Thermoplastic
2.79mm (.110")
Yes
Yes
1.60mm (.063")
Tray
1.27mm (.050")
0.381µm (15µ")
2.540µm (100µ")
-10°C to +85°C
Through Hole
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
87645Series
Mates With
JEDEC MO-172 modules
Electrical
Current - Maximum per Contact
Voltage - Maximum
Voltage Key
1A
125V
3.3V, Center
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
30
SMC & Wave Capable (TH only)
1
240
Material Info
Reference - Drawing Numbers
Sales Drawing
SD-87645-001
This document was generated on 10/14/2011
