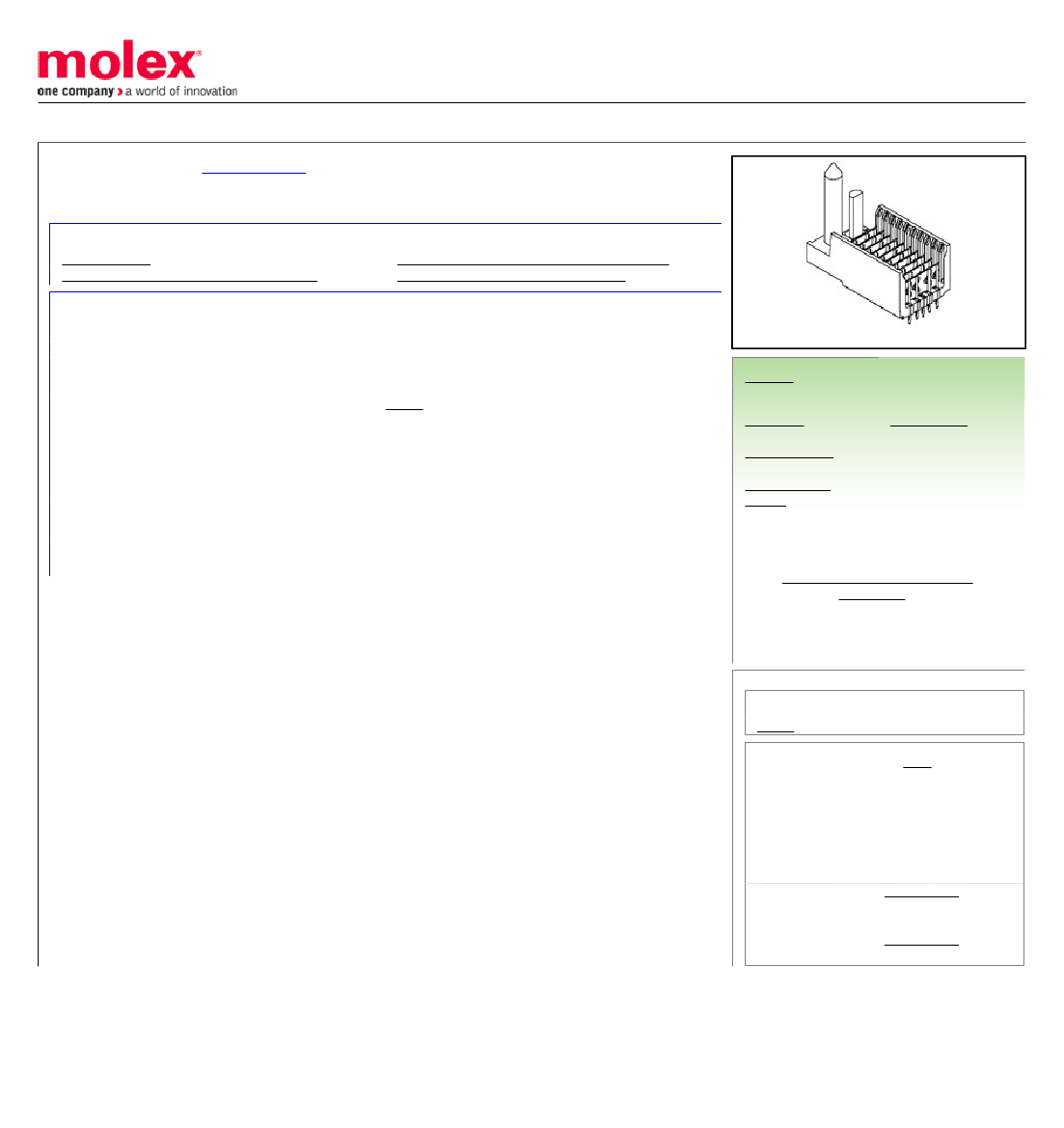

Preview

74696-9014: DescriptionDIN 41612 Connectors HSD 5 ROW SIGNAL END END BP ASSY Pb FREE; CategoryThe connector The connector; File Size25KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

74696-9014 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74696-9014	-	-	View	Buy Now

74696-9014 Overview

DIN 41612 Connectors HSD 5 ROW SIGNAL END END BP ASSY Pb FREE

74696-9014 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	10 SHIELD CONTACTS IN 1 ROW
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	50
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 06/10/2016

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0746969014

Active

HSD 5 ROW SIGNAL END BP ASSY Pb FREE

Documents:

Drawing (PDF)

Product Specification PS-74031-999 (PDF)

Agency Certification

CSA

UL

General

Product Family

Series

UPC

Physical

Flammability

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Packaging Specification PK-74696-003 (PDF)

RoHS Certificate of Compliance (PDF)

LR19980

E29179

Backplane Connectors

74696

822350251228

94V-0

Series image - Reference only

EU ELV

Not Reviewed

EU RoHS

China RoHS

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

Not Reviewed

PK-74696-003

PS-74031-999

SD-74696-002

Search Parts in this Series

74696 Series

Application Tooling

|

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Signal Header, 5-

0622020201

Row by 10-Wide,

20.00mm

Signal Pin Inserter 0622015700

Repair Tool
