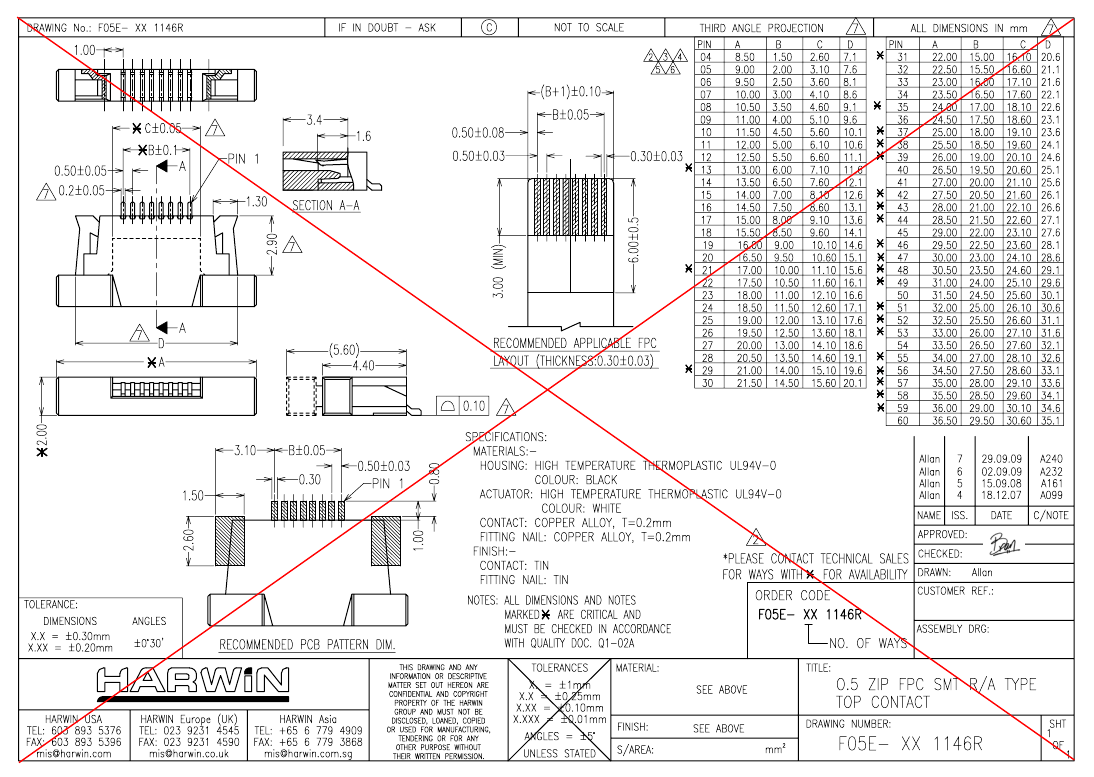

F05E-351146R datasheet, PDF - EEWORLD Datasheet

F05E-351146R: DescriptionCard Edge Connector, 35 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Black Insulator, LEAD FREE; CategoryThe connector The connector; File Size599KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

F05E-351146R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	F05E-351146R	-	-	View	Buy Now

Card Edge Connector, 35 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Black Insulator, LEAD FREE

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1740760371
package instruction	LEAD FREE
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	TOP CONTACT, ZIF
Board mount options	FITTING NAIL
body width	0.079 inch
subject depth	0.173 inch
body length	0.945 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.020 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.4 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	35
UL Flammability Code	94V-0

OBSOLETE
