PP-013

Description
DC Power Connectors DC Power Plugs & Audio Plugs
CategoryThe connector
File Size74KB,1 Pages
ManufacturerCUI Inc.
Environmental Compliance
Download Datasheet Parametric View All

PP-013 Online Shopping

Suppliers Part Number Price MOQ In stock
PP-013 - - View Buy Now

PP-013 Overview

DC Power Connectors DC Power Plugs & Audio Plugs

PP-013 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerCUI Inc.
Product CategoryDC Power Connectors
RoHSDetails
ProductPlugs
Inside Contact Diameter1.7 mm
Outside Contact Diameter4 mm
Mounting StyleCable
Termination StyleSolder Pin
Current Rating5 A
Voltage Rating24 V
Mounting AngleStraight
ColorBlack
Connector TypePlug
Contact PlatingNickel
Housing MaterialPolyvinyl Chloride (PVC)
Contact MaterialBrass
Flammability RatingUL 94 V-0
Contact GenderSocket (Female)
Maximum Operating Temperature+ 40 C
Minimum Operating Temperature0 C
Factory Pack Quantity1000
Unit Weight0.117462 oz

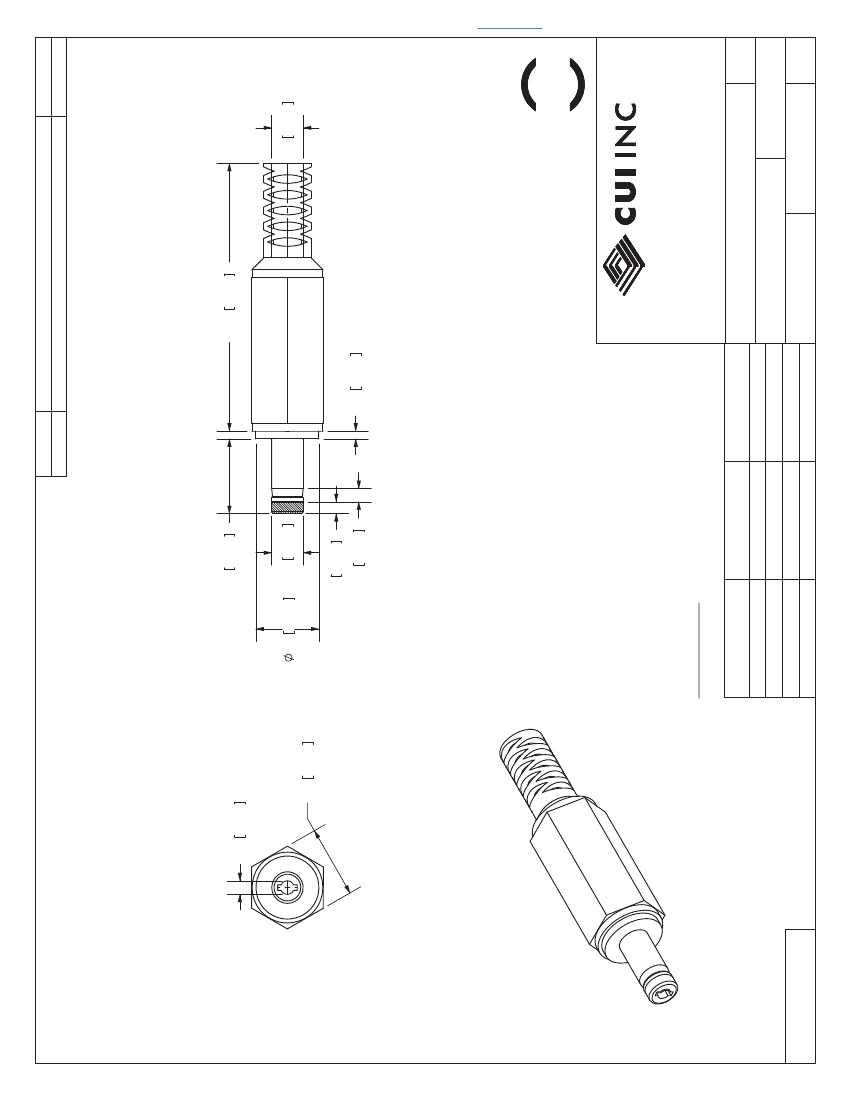

REV.
A
DESCRIPTION
NEW DRAWING
DATE
5/15/2006
1.7 0.067
9.5 0.374
34.0 1.339
8.0 0.315
9.1 0.358
1.5 0.059
1.7 0.067
1.0 0.039
4.00 0.157
4.0 0.157
For more information, please visit the
product page.
TOLERANCE:
X.X ±0.2mm
X.XX ±0.1mm
X.XXX ±0.05mm
RoHS
20050 SW 112th Ave.
Tualatin, OR 97062
Phone: 503-612-2300
800-275-4899
Fax: 503-612-2383
Website: www.cui.com
SPECIFICATIONS:
RATING: 24V DC @ 5A
OPERATING TEMP: 0°
~ +
40°C
MATERIAL
COVER
BARREL
TERMINALS
TIP INSULATOR
PLATING
TITLE:
DC POWER PLUG
PART NO.
REV:
UNITS:
A
PP-013
DRAWN BY:
MM [INCHES]
ZRJ
APPROVED BY:
SCALE:
PC FILE NAME:
PP-013
COPYRIGHT 2007 BY CUI INC.
PVC
Brass
Brass
POM
Black Color
Nickel
Nickel
Yellow Color
2:1
