87874-2003

Description
Power to the Board Pwr Hdr Plug RA THol THole .76AuLF 33Ckt
CategoryThe connector
File Size63KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

87874-2003 Online Shopping

Suppliers Part Number Price MOQ In stock
87874-2003 - - View Buy Now

87874-2003 Overview

Power to the Board Pwr Hdr Plug RA THol THole .76AuLF 33Ckt

87874-2003 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerMolex
Product CategoryPower to the Board
RoHSDetails
Current Rating30 A
Voltage Rating250 V
Number of Positions33 Position
Mounting StyleThrough Hole
Termination StyleThrough Hole
Pitch2.54 mm, 5.08 mm, 6.35 mm, 7.62 mm
PackagingTray
Contact PlatingGold
Housing MaterialThermoplastic
Number of Rows4 Row
Factory Pack Quantity12
Unit Weight1.136809 oz

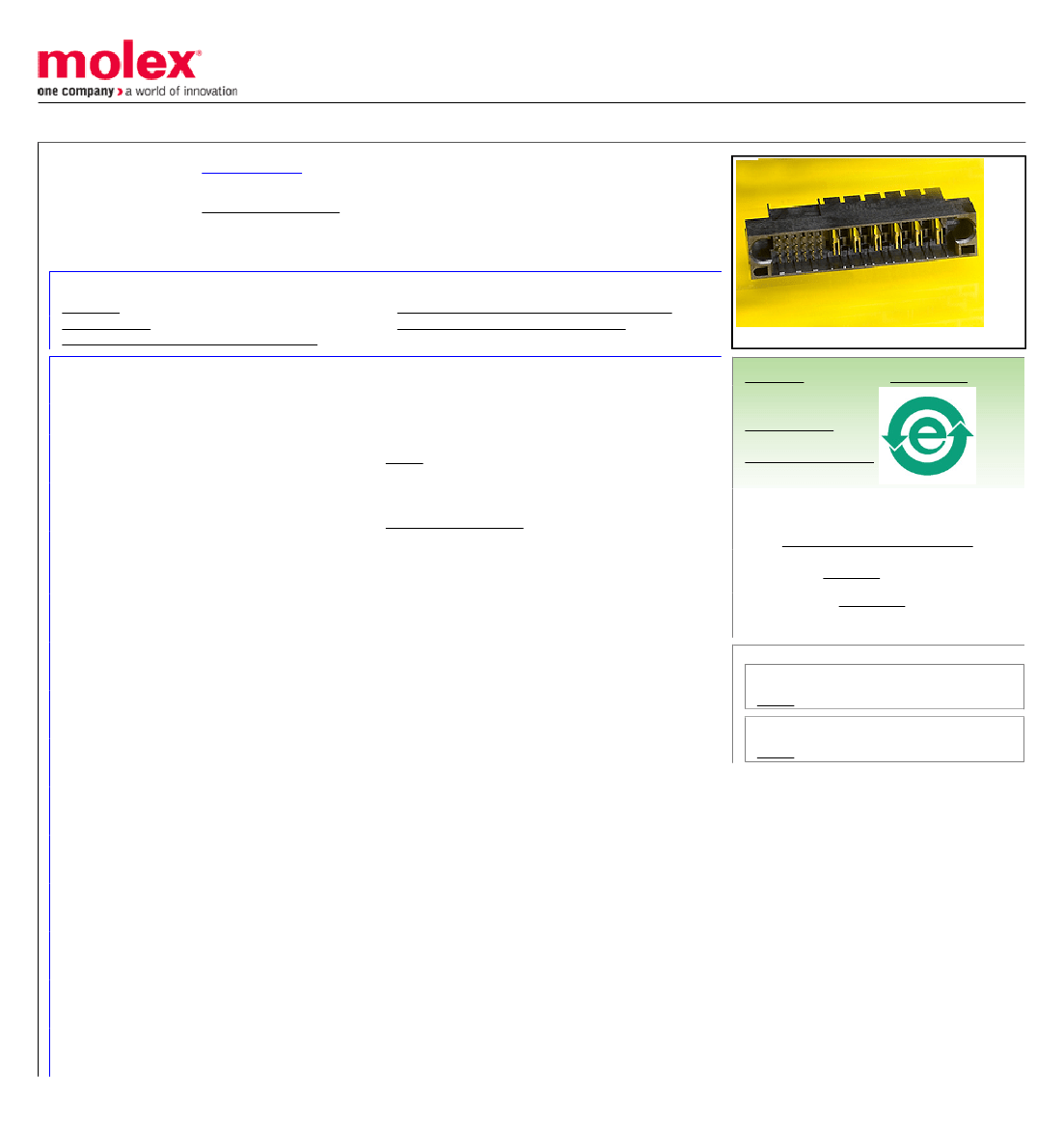

This document was generated on 01/23/2013
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
87874-2003
Active
EXTreme LPHPower™
7.62mm , 6.35mm, 5.08mm Pitch Power, 2.54mm Pitch Signal, EXTreme PowerPlus™
P-S Header, Through Hole, Right Angle, Screw Mount, 33 Circuits, Power Alpha 9,
Signal 24, Recessed Signal Pins A1A5, B2-B6, C2-C6, D1D6, Lead-Free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-87805-006 (PDF)
Application Specification AS-87631-018 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
Series
Agency Certification
UL
E29179
General
Product Family
Series
Application
Comments
Overview
Product Name
UPC
PCB Headers
87874
Board-to-Board, Power
<LI>Recessed Signal Pin Locations at: A1A5, B2-B6,
C2-C6, D1D6<LI>No Void Pins
EXTreme LPHPower™
EXTreme PowerPlus™
822350857246
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
(p)ower-(s)ignal Configuration
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
9p - 24s
No
33
33
Black
100
Yes
94V-0
No
Yes
Yes
Copper Alloy
Gold
Tin
High Temperature Thermoplastic
32.228/g
4
Right Angle
3.43mm
No
Yes
Tray
2.54mm, 5.08mm, 6.35mm, 7.62mm
0.762µm
2.540µm
Yes
Yes
Fully
No
-20°C to +105°C
Search Parts in this Series
87874Series
Mates With
87925 EXTreme PowerPlus™ Receptacle
