43030-0002 (Mouser Reel) datasheet, PDF

Datasheet> All Categories > The connector> 43030-0002 (Mouser Reel)

43030-0002 (Mouser Reel): DescriptionHeaders & Wire Housings MF 3.0 TERM 20-24G F Reel of 1000; CategoryThe connector; File Size35KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

43030-0002 (Mouser Reel) Overview

Headers & Wire Housings MF 3.0 TERM 20-24G F Reel of 1000

43030-0002 (Mouser Reel) Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Headers & Wire Housings
RoHS	Details
Product	Contacts
Type	Polarized
Mounting Style	Wire
Termination Style	Crimp
Mounting Angle	Straight
Contact Gender	Socket (Female)
Contact Plating	Gold
Packaging	Reel
Application	Computers, Power Supplies, Satellites, Tele Communications, Vending Machines
Contact Type	Female
Current Rating	5 A
Housing Material	Phosphor Bronze
Voltage Rating	600 V
Contact Material	Phosphor Bronze
Flammability Rating	UL 94 V-0
Housing Gender	Receptacle
Maximum Operating Temperature	+ 105 C
Minimum Operating Temperature	- 40 C
Factory Pack Quantity	1000
Wire Gauge	24 AWG - 20 AWG
Unit Weight	0.002187 oz

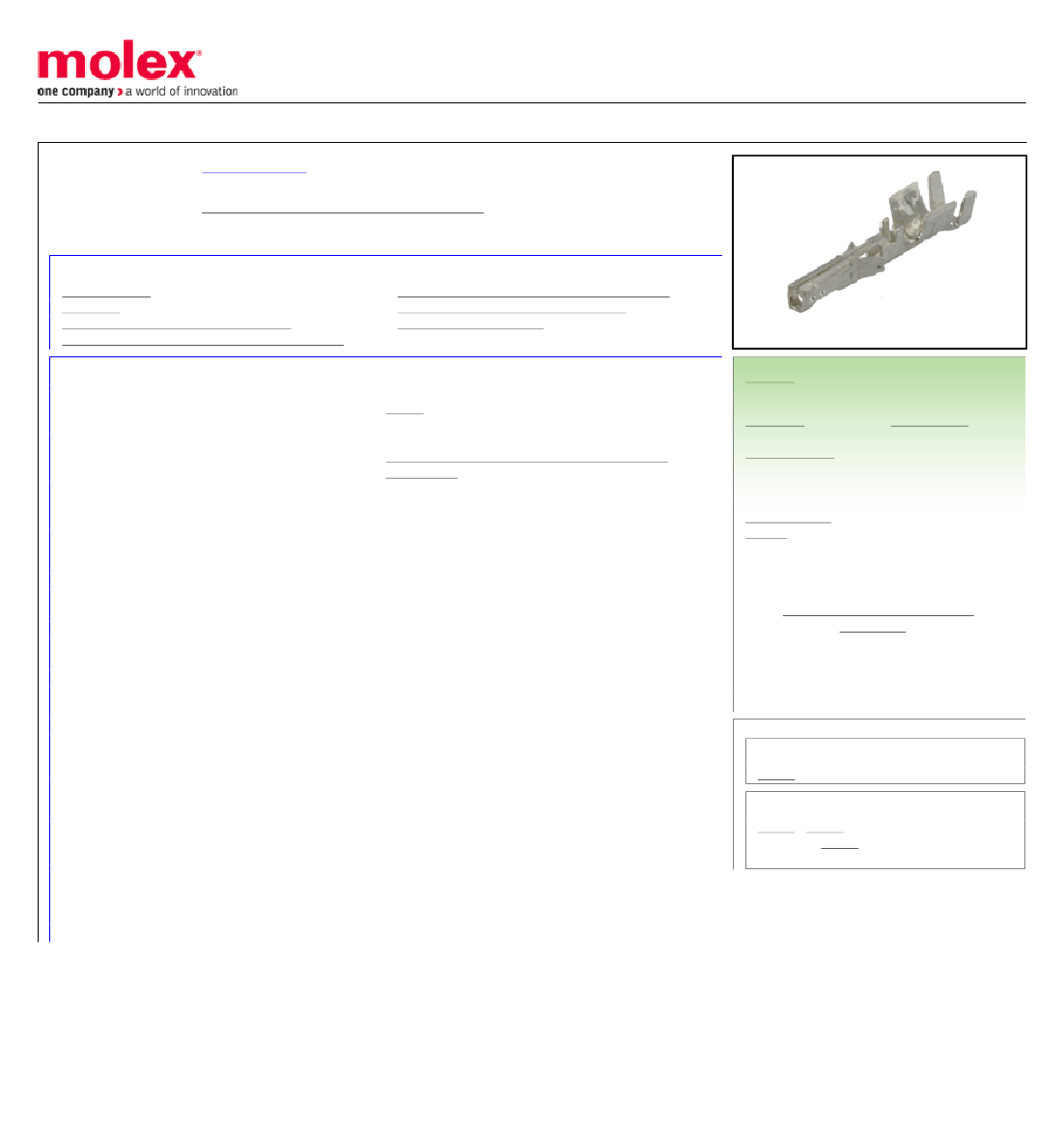

Preview

Download Datasheet

View All

This document was generated on 05/11/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0430300002

Active

Micro-Fit 3.0 Connector System Product Family

Micro-Fit 3.0 Crimp Terminal, Female, with Select Gold (Au) Plated Phosphor Bronze

Contact, 20-24 AWG, Reel

Documents:

Drawing (PDF)

3D Model

Product Specification PS-43045 (PDF)

Product Specification TS-43045-002-001 (PDF)

General

Product Family

Series

Application

Crimp Quality Equipment

Overview

Packaging Alternative

Product Literature Order No

Product Name

UPC

Physical

Gender

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Packaging Type

Plating min - Mating

Plating min - Termination

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Electrical

Current - Maximum per Contact

Solder Process Data

Lead-freeProcess Capability

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Packaging Specification PK-43030-001 (PDF)

RoHS Certificate of Compliance (PDF)

Product Literature (PDF)

Series image - Reference only

EU ELV

Compliant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Compliant

Not Contained

Crimp Terminals

43030

Power

Yes

Micro-Fit 3.0 Connector System Product Family

43030-0008 (Loose)

987650-5984

Micro-Fit 3.0

800753683662

Female

Phosphor Bronze

Gold

Tin

0.062/g

Reel

0.381µm

2.540µm

Crimp or Compression

1.85mm max.

20, 22, 24

N/A

8.5A

N/A

Search Parts in this Series

43030 Series

Use With

43025 , 43645 Micro-Fit 3.0 Receptacle

Housings, 44133 Micro-Fit BMI Panel Mount

Receptacle Housings

PK-43030-001

PS-43045, TS-43045-002-001

SD-43030-****

This document was generated on 05/11/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
